Heli CPCD100 Used 10 Ton Forklift With 3000~5000mm Lift Height
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
3-8days
Brand:
Heli
Product Description
10 Tons CPCD100 Used Truck lift , Second Hand Forklift for Sale
Parameters
|
|||||||||||||
| Speciality parameter | Model | Unit | CPCD100 | ||||||||||
| Power type | Diesel | ||||||||||||
| Rated capacity | kg | 10000 | |||||||||||
| Load center | d | mm | 600 | ||||||||||
| Lift height | h2 | mm | 3000 | ||||||||||
|
Mast tilt angle (forward/backward) |
α/β | Deg | 6/12 | ||||||||||
| Wheel-base | L4 | mm | 2800 | ||||||||||
| Tread(front/rear) | b4/b5 | mm | 1600/1720 | ||||||||||
|
Performance parameter |
Travel brake | Hydraulic-Foot pedal | |||||||||||
| Parking brake | Mechanical-Hand level | ||||||||||||
| Lift speed(with/without load) | mm/s | 310/340 | |||||||||||
| Lower speed (with/without load) | mm/s | (with load)300 | |||||||||||
| Travel speed (with/without load) | km/h | 23/26 | |||||||||||
| Max. gradeability (with load) | % | 20 | |||||||||||
| Max. Towing (with/without load) | kN | 50/40 | |||||||||||
|
and others |

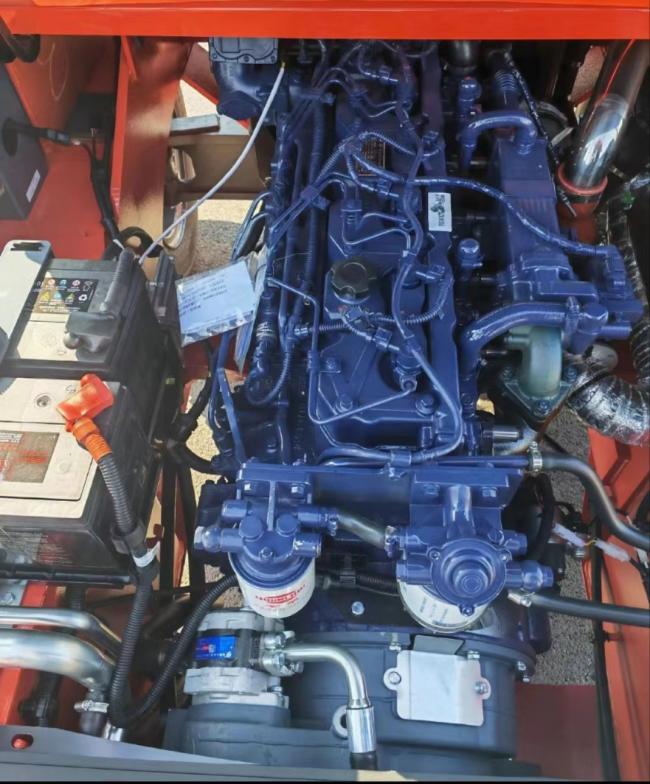

Engine | Model | 6BG1 | ||||||||||
| Manufacturer | ISU-ZU | ||||||||||||
| Rated power | kw | 82.4/2000 | |||||||||||
| Max. rotation | Nm/rpm | 415/1400 | |||||||||||
| Displacement | L | 6.49 | |||||||||||
| Battery | Voltage | V | 24 | ||||||||||
| Capacity | Ah | 2×100 | |||||||||||
| Gearbox | Transmission type | Hydraulic | |||||||||||
| Gears,speed (front/rear) | II/II | ||||||||||||
| Tire | type | Pneumatic tyre | |||||||||||
| Model | Front | 9.00-20-14PR | |||||||||||
| Rear | 9.00-20-14PR | ||||||||||||
| Others | Self.weight | kg | 12500 | ||||||||||
| Free lift height | h4 | mm | 165 | ||||||||||
| Fork | Thickness×Width×Length | c×b×a | mm | 80×175×1220 | |||||||||
Overall dimensions |
Overall length(without forks) | L2 | mm | 4240 | |||||||||
| Overall width | b1 | mm | 2165 | ||||||||||
Overall height |
Extended height(mast) | h1 | mm | 4330 | |||||||||
|
Lower height (mast) |
h3 | mm | 2850 | ||||||||||
| Overhead guard | h7 | mm | 2575 | ||||||||||
| Min. turning radius | Wa | mm | 3950 | ||||||||||
|
ground clearance |
Under mast | m1 | mm | 245 | |||||||||
| Center of wheel-base | m2 | mm | 255 | ||||||||||
