Semi Automatic Glass Straight Line Cutting Machine St-2436 for Customer Requirements
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Product Description

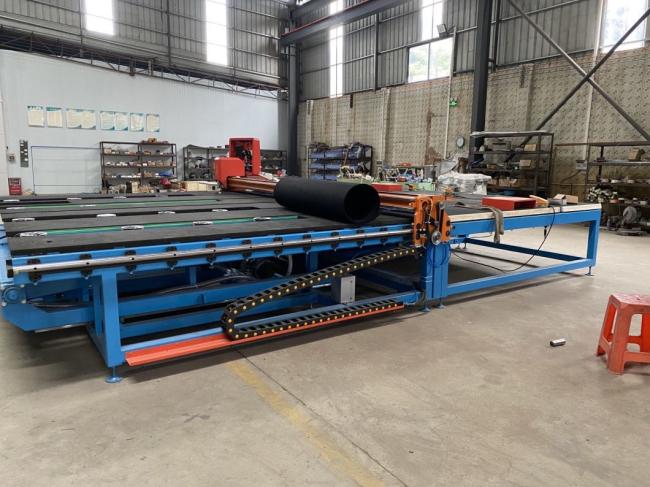

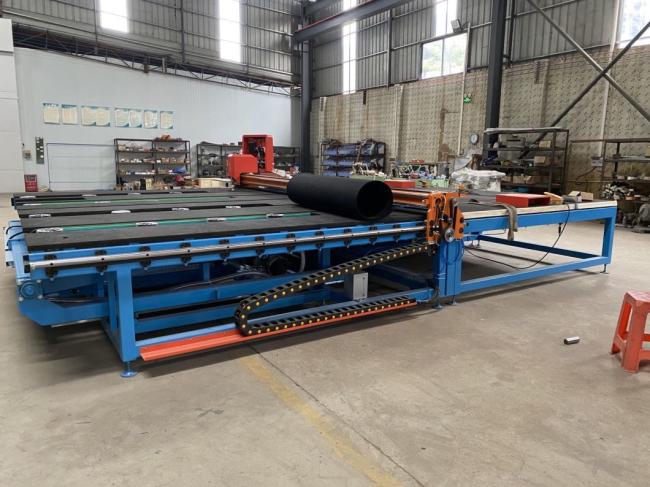

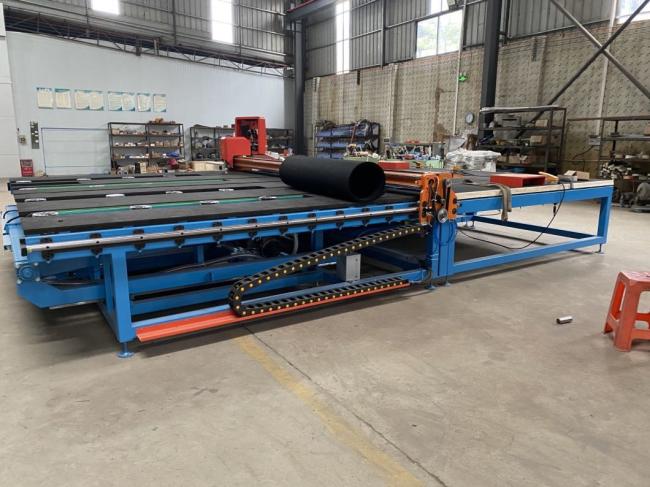

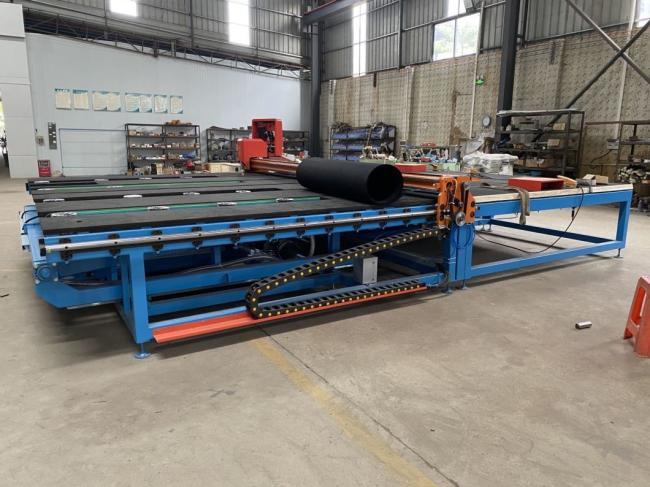

Semi automatic glass straight line cutting machine with cutter ST-2436
This semi-automatic two bridges overpass type precision cutting machine, adopts synchronous transmission device, can stop or work automatic operation , two beams can move without manual pull, just press the control panel on the starter gear, the gear drive will run double beam automatically cutting.Make it light, simple operation, stable running, reduce labor intensity, improve the production efficiency.
Characteristics
1) PLC Control system,can adjust speed easily.
2)Screen shows operate.easy to operate it.
3)Use imported guide rail and bearing,
4)This machine has air floating device, air blow suction device and automatic refueling device.
Performance
![Semi Automatic Glass Straight Line Cutting Machine with Cutter St-2436]()
![Semi Automatic Glass Straight Line Cutting Machine with Cutter St-2436]()
![Semi Automatic Glass Straight Line Cutting Machine with Cutter St-2436]()
![Semi Automatic Glass Straight Line Cutting Machine with Cutter St-2436]()
Operator:
1-2 persons
We will supply 20pcs cutting box tegether with the machine.
![Semi Automatic Glass Straight Line Cutting Machine with Cutter St-2436]()
The company is committed to the production of glass radiant tempering furnace, convection tempering
After years of hard work and exploration, the company has obtained a number of national patents, and
Companies adhering to the principle of quality first, service-oriented, and constantly improve the
This semi-automatic two bridges overpass type precision cutting machine, adopts synchronous transmission device, can stop or work automatic operation , two beams can move without manual pull, just press the control panel on the starter gear, the gear drive will run double beam automatically cutting.Make it light, simple operation, stable running, reduce labor intensity, improve the production efficiency.
Characteristics
1) PLC Control system,can adjust speed easily.
2)Screen shows operate.easy to operate it.
3)Use imported guide rail and bearing,
4)This machine has air floating device, air blow suction device and automatic refueling device.
Performance
| Cutting parallel degree | ≤±0.10mm |
| Diagonal | ≤±0.20mm |
| Cutting thickness | 2-19mm |
| Physical size | 2950mm×3950×1200mm |
| Mesa size | 2600×3600mm |
| Cut glass maximum size | 2400×3600m |
| Cut glass minimum size | 20×20mm |
| Cutting efficiency | 2-3 big sheet /Min(30-60meters/Min) |
Operator:
1-2 persons
We will supply 20pcs cutting box tegether with the machine.
Company profile
Founded in 2010, Foshan Star Glass Machinery Co., Ltd. is a high-tech enterprise specializing in the
production, research and development and sales of glass deep processing machinery. The company is
located in Foshan City, a major glass machinery center.
The company is committed to the production of glass radiant tempering furnace, convection tempering
furnace, flat bending dual-purpose tempering furnace, automotive glass bending furnace, non
autoclave PVB laminating production line.
After years of hard work and exploration, the company has obtained a number of national patents, and
its technology is ahead of the domestic level. The products sell well all over China and are exported to
Australia, the United States, the Middle East, India, Vietnam, South America and other places.
Companies adhering to the principle of quality first, service-oriented, and constantly improve the
company's level and product quality, and strive to create a skilled, high-quality team. We will sincerely
cooperate with new and old customers at home and abroad with sincerity and jointly develop the
bright road of glass machinery manufacturing industry.
![Semi Automatic Glass Straight Line Cutting Machine with Cutter St-2436]()
