CE Certified St2000 Automatic Glass Cleaning and Drying Washer Glass Washing Machine

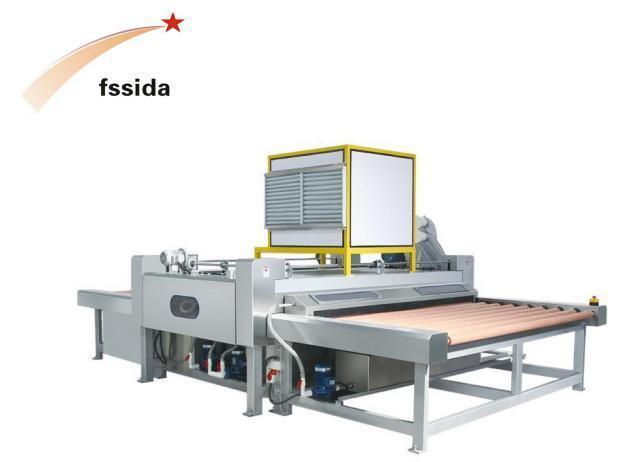

ST2000 Automatic Glass Cleaning and Drying Washer Glass Washing Machine
This machine use for flat glass cleaning and drying.The washing machine is used for washing and drying of 3-15mm thickness flat glass. It adopts the horizontal structure, the transmission is smooth, efficient and safe.

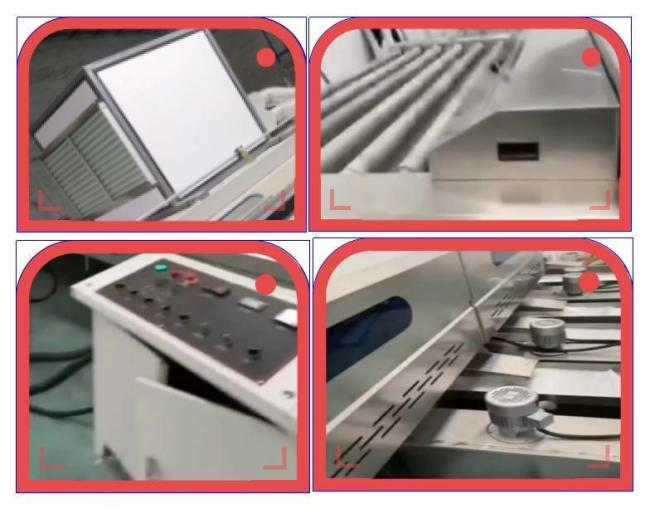

Main feature
1. Main drive is gear drive, motor speed is controlled by frequency inverter, digital display show speed and glass thickness.
2. Brush are drove by upper and lower motors with separate belt, which has smooth speed and long service life.
3. Metal plates of washing part and parts which contacts with water are made of stainless steel.
| Item | QX2000 |
| The maximum glass width | 2000 mm(width) |
| The minimum glass size | 400mm×400mm |
Glass thickness range | 3mm-25mm digital readout |
| Roller brush: | 3 pair |
Working speed | Thickness of glass is less than 5mm, Vmax= 7m/min Thickness of glass is 8mm to 12mm, V<= 3m/min Thickness of glass is 15mm-19mm, V= 2m/min |
| Way for changing speed of main drive: | variable frequency speed control; |
| Working table height | 880mm |
| Total power | 25kw |
| External dimension | 5000*3000*2700 |
| Weight: | 3350kg |
Packaging and Delivery
Company profile
Founded in 2010, Foshan Star Glass Machinery Co., Ltd. is a high-tech enterprise specializing in the
The company is committed to the production of glass radiant tempering furnace, convection tempering
After years of hard work and exploration, the company has obtained a number of national patents, and
