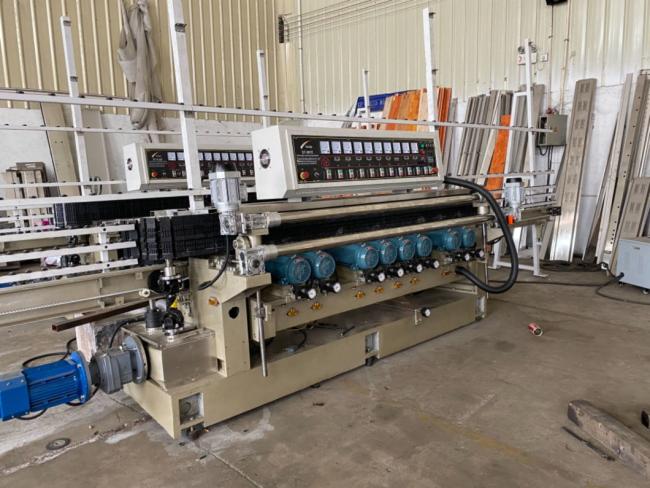

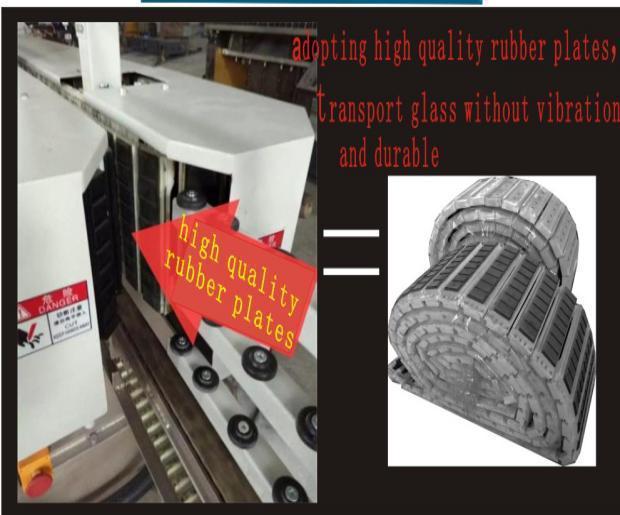

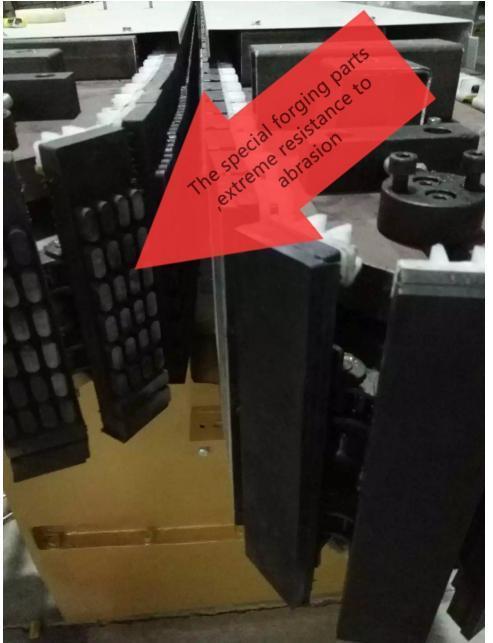

This machine is designed for grinding/polishing bevel edge, with bottom edge grinding. Conveyors use chain transmitting system which consist of anti-friction rubber pads with NO.40# forging steel bone. Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation. Adopt frequency conversion as main
conveyor .Grinding wheels are driven by high precision CDQC motors.

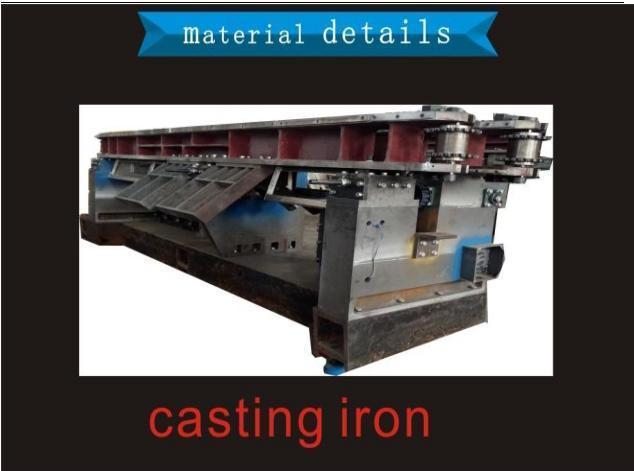

The machine structure is advanced and high working precision . Easy to operate and keep maintenance.
Technical parameters
Technical Parameters
1.Spindles: 9 heads. Speed: 0.6m-6m/min Max. bevel width: 35mm
2.Min. glass size: 80mmX80mm
3.Maximum glass size:3000*3000mm Glass thickness: 4mm-12mm
4.Bevel angle: 0°-25°
5.Total power: 21 KW (380V 50HZ ,according with customer requirement)
6.The bevel-ling machine total dimension: 6.68mX1.3mX1.9m
7.Weight: 4200Kg
Distribution of grinding wheels
| Serial NO. | Name | specification(mm) | quantity | Inner hole (mm) |
| 1,2 | Diamond wheel | Ø150 | Each 1 | Ø22≤thickness40 |
| 3 | Diamond round wheel | Ø175 | 1 | R2.5,Ø22 |
| 4,5,6,7 | Resin wheel | Ø150 | Each 1 | Ø22≤thickness40 |
| 8,9 | Wool wheel | Ø150 | Each 1 | ≤thickness40 |

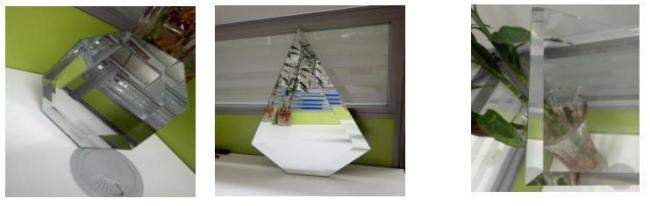

1. The machine is easy to operate and stable.
2. The front rails can be moved in parallel to adjust the thickness of the glass for easy and precise operation.
3. The chamfering grinding wheel adopts pallet, and there is no vibration during grinding.

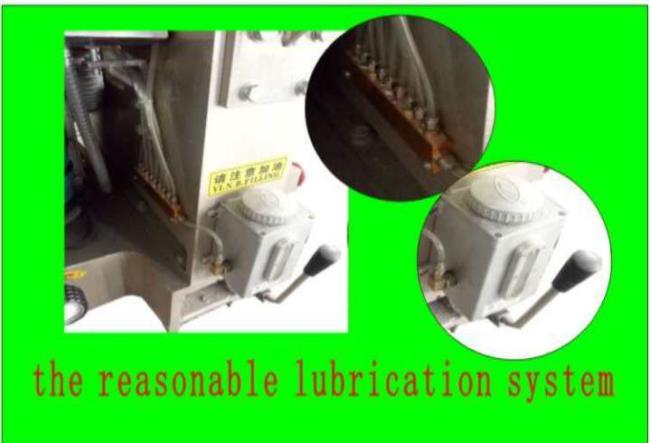

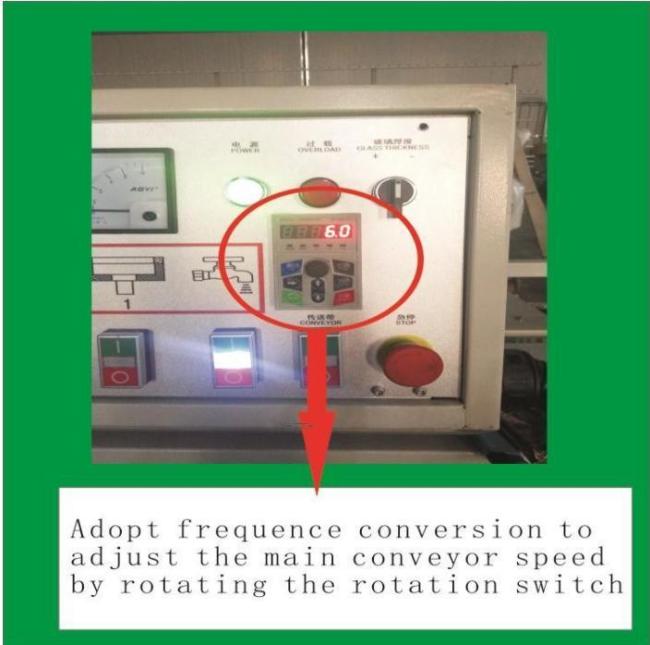

4. The main transmission is frequency conversion speed regulation.

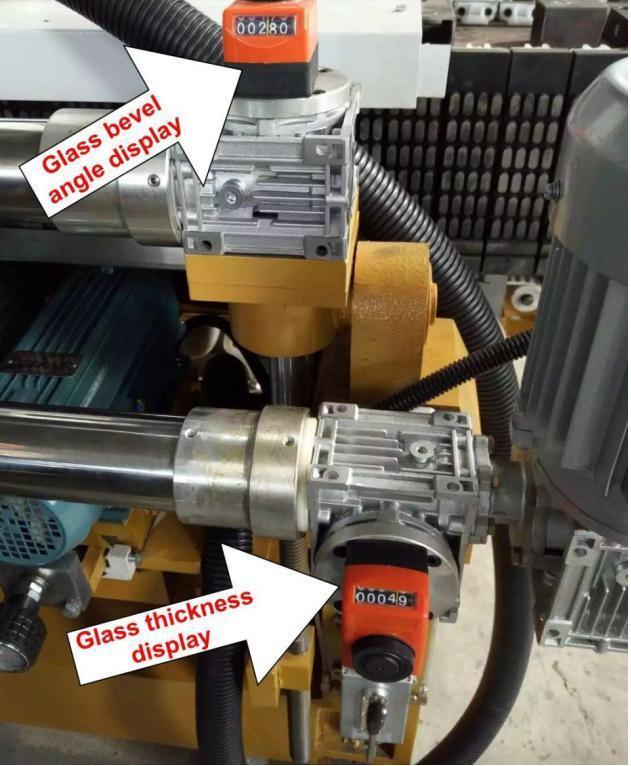

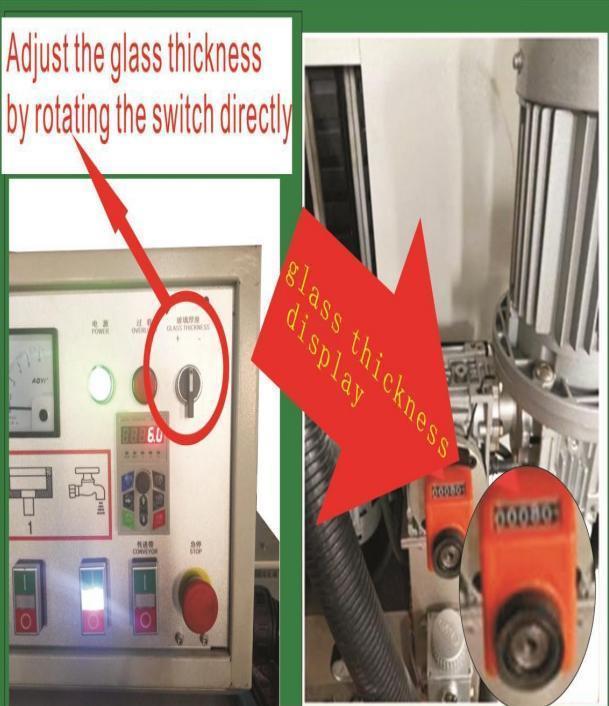

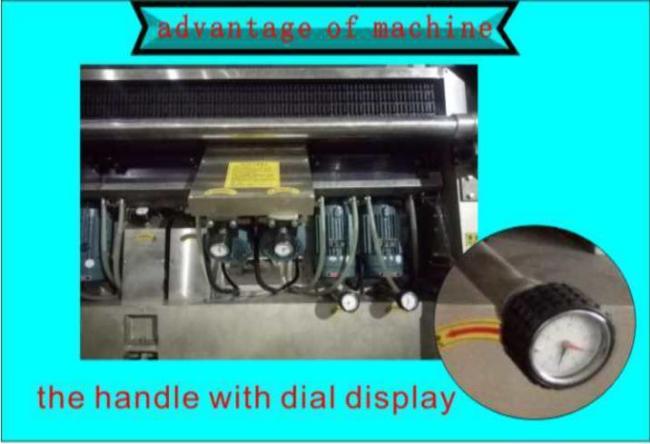

5. The special part is the input conveyor rack to be vertically adjustable up and down ,the function is to adjust the grinding amount by rotate the rotation handle ,and the grind amount digital display.
6. The machine can process glass with PLC control system.
7. The machine configures Lifting system.
What's the guarantee ?
1. 24 hour's technical support by email or calling.
2. English manual and video tutorial.
3. Machine with 1 year quality guaranty (excluding the consumables).
4. 24 hours on line service each day, free technical support.
Do you provide equipment operation training?
Yes. We can provide remotely Guided Installation.
if our price is higher than another company or factories ?

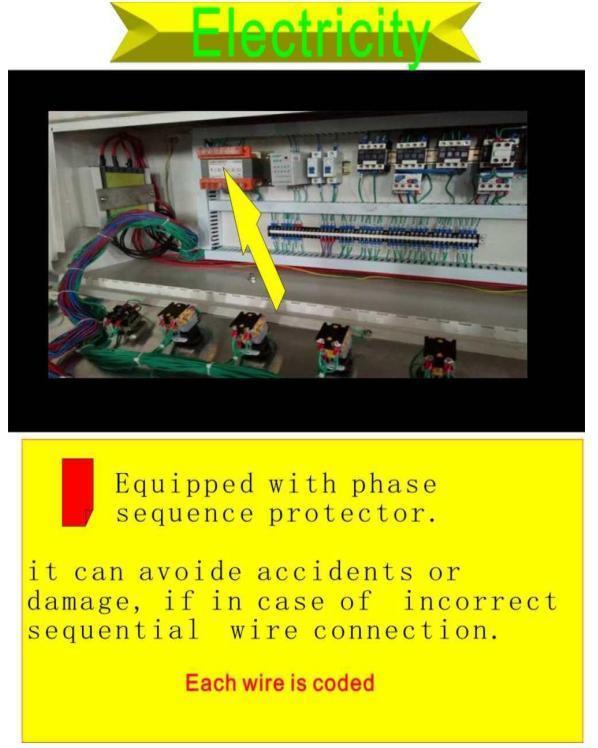

please check, what is is the different of the machine parts ,service and guarantee,especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, but we use the famous and reliable parts for the machines inside.
How long is the delivery time ?
It wound take 15 days to deliver.
What is the payment ?
Any payment method you want,such as L/C, T/T, D/P, West-union and so on.
