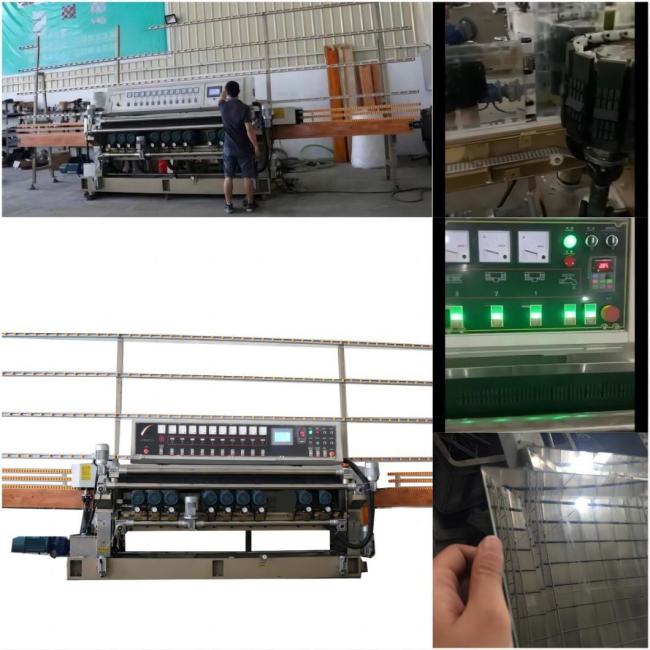

Glass Linear Bevel Edge Grinding Machine 10 Heads with High Processing Efficiency
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Product Description
Machine Introduction

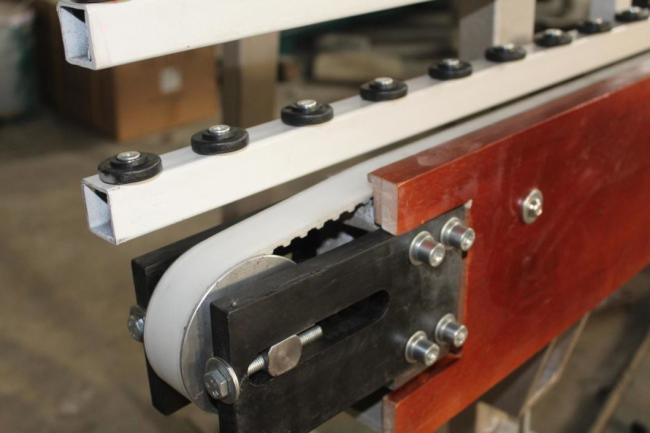

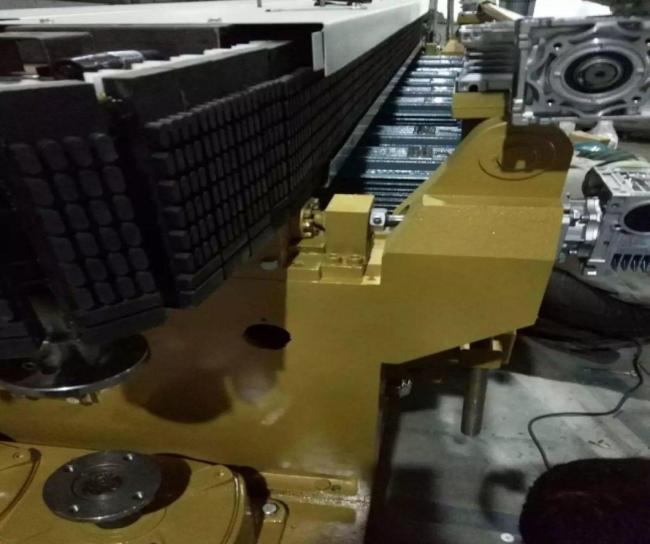

This machine is designed for grinding/polishing bevel edge, with bottom edge grinding. Conveyors use chain transmitting system which consist of anti-friction rubber pads with NO.40# forging steel bone. Timing belt are used in loading and unloading arms to carry glass, which has a stable transportation. Adopt frequency conversion as main conveyor .Grinding wheels are driven by high precision CDQC motors.
The machine structure is advanced and high working precision . Easy to operate and keep maintenance.
Technical parameters
| Spindles | 9 heads |
| Speed | 0.6m-6m/min |
| Max. bevel width | 35mm |
| Min. glass size | 80mmX80mm |
| Maximum glass size | 3000*3000mm |
| Glass thickness | 4mm-12mm |
| Bevel angle | 0°-25° |
| Total power | 21 KW (380V 50HZ ,according with customer requirement) |
| The bevel-ling machine total dimension | 6.68mX1.3mX1.9m |
| Weight | 4200Kg |
Distribution of grinding wheels:
| Serial NO. | Name | specification(mm) | quantity | Inner hole (mm) |
| 1,2 | Diamond wheel | Ø150 | Each 1 | Ø22≤thickness40 |
| 3 | Diamond round wheel | Ø175 | 1 | R2.5,Ø22 |
| 4,5,6,7 | Resin wheel | Ø150 | Each 1 | Ø22≤thickness40 |
| 8,9 | Wool wheel | Ø150 | Each 1 | ≤thickness40 |
 |  |  |
 |  |  |
https://foshan-star.en.made-in-china.com/
We make glass tempering furnace, glass edging machine, glass cutting machine, glass washing machine, glass drilling machine. Our company has more than 15 years.we have perfect after sales service and technology.contact with me if you have any request!
