Straight-Line Bevel Edging Glass Multi-Edging Polishing Machine with Vertical Design
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Product Description

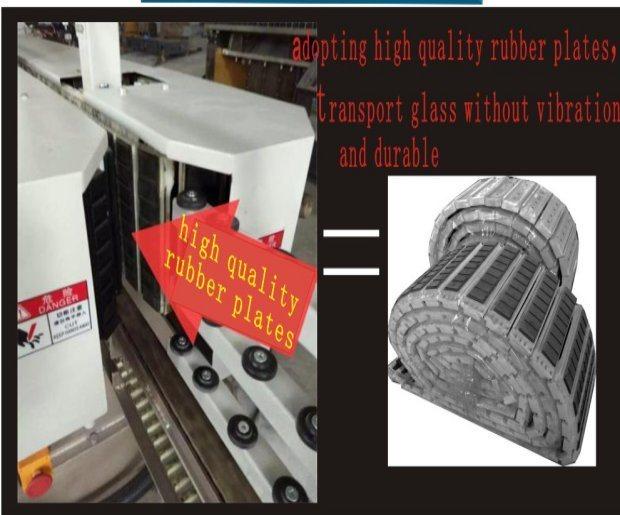

The machine is designed for grinding/polishing bottom edge of flat glass, with arris grinding. Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.
√ Adopt drag plates structure, which is no vibration in working.
√ Front rail is driven by motors and move in parallel to adapt to different glass thickness. and electrically adjusting the glass thickness ,the glass thickness is with digital display.
√ Main conveyor working speed can be adjusted through frequence conversion and the speed with digital display.
| Wheels | 9 |
| Working speed | 0.6-8.0m/min |
| Max arris width | 2.5mm |
| Min. glass size | 80×80×3mm |
| Glass thickness | 3-20mm |
| Total power | 22kw |
| Dimension | 6600x1000x2600mm |
| 1#:Diamond wheel 150*12*8*8 100# | 2#:Diamond wheel 150*12*8*8 240# | 3#:Resin wheel 130*12*15*10 240# |
| 4#:Polishing wheel 130*60*35 | 5#:Resin wheel 130*12*15*12 240# | 6#:Polishing wheel 130*60*35 |
| 7#:Resin wheel 150*12*15*10 240# | 8#:Polishing wheel 150*70*40 | 9#:Polishing wheel 150*70*35 |
- Adopt frequency variator as main transmit system,high or low speed all smooth and no vibration, low noise.
- Digital display glass thickness.
- Adopt manual filling function lubrication system , easy to maintain the skateboards which for support grinding motors.
- The last motor for polishing flat bottom glass, adopt double speed system motor.
- 4 layer waterproof brush, easy to replace.
- Advanced front beam configuration.Exclusive design of straight pallets for easier replacement and maintenance.
- Front and rear rails: high quality cast iron, not easily deformed.
- Main machine body, supporting pillar, all adopting high quality iron casting.
- Dovetail grinding head plate: high quality cast iron, professional processing, no gap, stable and vibration-free during work.
- Waterproof brush: high elasticity, high temperature resistant.
- The pads and chain are adopted famous brand in China. The front and rear splints are all branded "lobster", and the chain adopts the "Donghua" brand in Hangzhou.
Q:What kind of products do you have?
A:We make glass machines and supply machine spare parts and consumables
Q:Can the price be cheaper?
A:Our quotation is unified, compared with our quality, this price is very cost-effective
Q:What is the payment ?
A:Any payment method you want,such as L/C, T/T, D/P, West-union and so on.
