Remotely Guided Installation Glass Straight Line Edging Machine with 9 Motor St9325e

Glass straight line edging machine with 9 motor ST9325E

The machine is designed for grinding/polishing bottom edge of flat glass, with arris grinding. Conveyor adopts chain transmitting system consisting of special stretchy rubber pads.


Wheels	9
Working speed	0.6-8.0m/min
Max arris width	2.5mm
Min. glass size	80×80×3mm
Glass thickness	3-20mm
Total power	22kw
Dimension	6600x1000x2600mm

Advantage

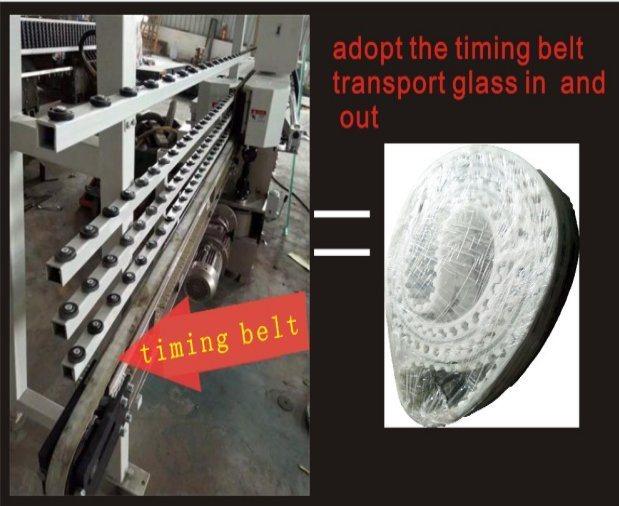

 1. Timing belt transfers glass.

2.  Adopt drag plates structure, which is no vibration in working.

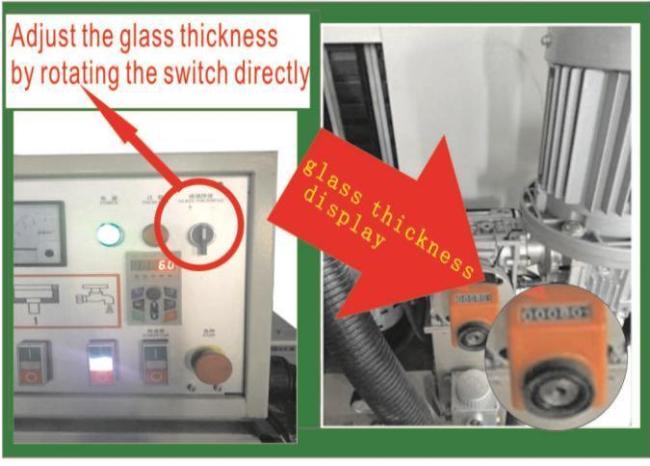

3. Front rail is driven by motors and move in parallel to adapt to different glass thickness. and electrically adjusting the glass thickness ,the glass thickness is with digital display.

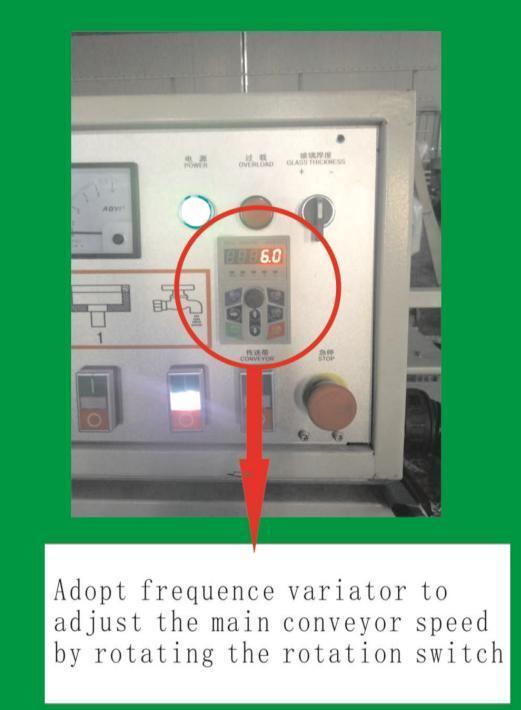

4. Main conveyor working speed can be adjusted through frequence conversion and the speed with digital display.

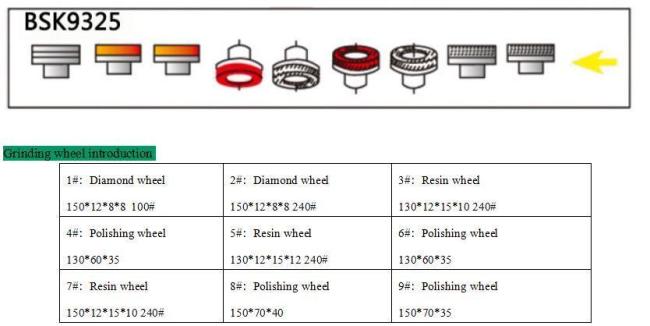

Wheel distribute
