Tempered Glass Processing Machine with 315kVA Transform Capacity and CE Certification
Price:
Negotiable
MOQ:
1 set
Delivery Time:
Peak Season Lead Time: 1-3 months Off Season Lead Time: within 15 workdays
Product Description

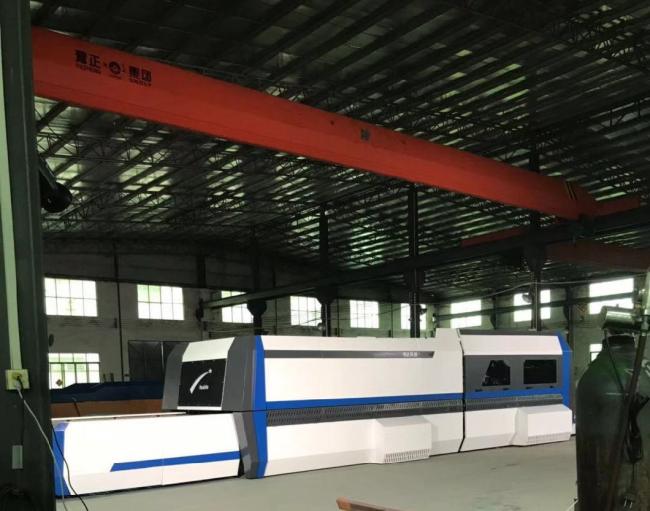

The furnace includes loading table, heating section , quenching and cooling section, unloading table, and control system. It is used to manufacture flat tempered glass for furniture, home appliance, architecture glass, etc
Loading Table
The loading table is composed of rubber-covered rollers and Keviar rope. When the glass is put onto the rollers, the glass will be conveyed automatically to the entrance of the turnace where it will be in ready-to-enter-turnace postion and the rollers stop moving. It will send the glass into the furnace once the computer control system gives enter command.
The loading table is composed of rubber-covered rollers and Keviar rope. When the glass is put onto the rollers, the glass will be conveyed automatically to the entrance of the turnace where it will be in ready-to-enter-turnace postion and the rollers stop moving. It will send the glass into the furnace once the computer control system gives enter command.
Heating Section
The structure of the heating section is of a double-layer box type covered with themmos-Insulation material. Inside the section there is a conveyor system with high temperature resistant ceramic rollers. Heating elements and radiation plates are installed on the upper layer and lower layer of this secion. The upper layer radiation plate is special heat resistant and ant-corrosion cast material. The heating element is of an integrated part with spiral type resistance erected on ceramio part. it's easy to replace. When the glass is going to enter the furnace, the front door of the heatna section opens the rolls of the loadino table and heatna section move at the same time.
The structure of the heating section is of a double-layer box type covered with themmos-Insulation material. Inside the section there is a conveyor system with high temperature resistant ceramic rollers. Heating elements and radiation plates are installed on the upper layer and lower layer of this secion. The upper layer radiation plate is special heat resistant and ant-corrosion cast material. The heating element is of an integrated part with spiral type resistance erected on ceramio part. it's easy to replace. When the glass is going to enter the furnace, the front door of the heatna section opens the rolls of the loadino table and heatna section move at the same time.
Flat Quenching/Gooling Section
The alloy sections and steal sheet is cold riveted to avoid deformation of heat welding, ensure effecttvely the entire flat at air face of quench. Rational nozzie aperture and arrangement of air hole guarantee the glass even coding. The upper and lower quenches are comblined with linkage and individual drives, which can actually control the rational height for air nozzle of quenches. Matched with balance control of upper and lower air amount, the top and bottom of the glasses can reach to optimum heat radiation, so as to ensure the flat of tempering glass,
The alloy sections and steal sheet is cold riveted to avoid deformation of heat welding, ensure effecttvely the entire flat at air face of quench. Rational nozzie aperture and arrangement of air hole guarantee the glass even coding. The upper and lower quenches are comblined with linkage and individual drives, which can actually control the rational height for air nozzle of quenches. Matched with balance control of upper and lower air amount, the top and bottom of the glasses can reach to optimum heat radiation, so as to ensure the flat of tempering glass,
Tinted glass
Patterned glass
Silk screen printing glass
Clear float glass
| Max. loading area | 1220*2500mm |
| Glass thickness range | 5-19mm |
| Max.glass size | 1220*2500mm |
| Min.glass size | 100*300mm |
| Recommended transformer capacity | ≥315kva |
Foshan Star Glass Machinery Co.,Ltd
Foshan star Glass Machinery Co.,Ltd is a comprehensive glass machinery company specialized in design, manufacture, selling, after sales service and maintenance. Our products include glass straight-line edger machine, glass straight-line beveling machine,glass drilling machine glass tempering machine etc. These machines have been widely used in various fields such as construction, furniture, art craft, KTV and wall decoration, etc. Having worked in this field for more than 20 years, our engineers are qualified with rich experience and technical skills. Fssida persists in the principle of "surviving on quality and developing on innovation".
1. One year guarantee for the machine,except the consumable parts.
2. 24 hours technical support by e-mail/Online chatting app.
3. English control page, manual and detailed operation Videos.
Q:Will you send engineer?
A:No,we won't. But all installation and debugging are done before leaving the factory, and simple and easy-to-understand installation instructions are provided. Coupled with the online remote assistance of engineers, our customers have completed the installation and are using it normally.
Q:How long is the delivery time ?
A:It will take 60-90 days to deliver.
Q:What is the payment ?
A:Any payment method you want,such as L/C, T/T, D/P, West-union and so on.
