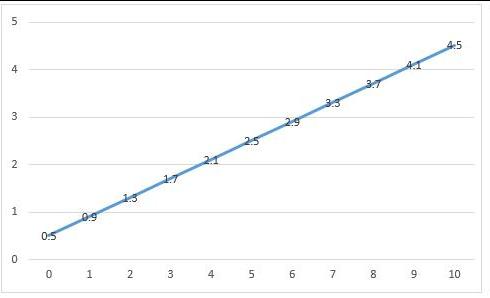

The pressure output characteristics are as follows (10Kpa, 5V):

Transfer functions
The pressure sensor is calibrated and there is a linear transfer between the pressure and voltage outputs
function, as follows:
VOUT = (P×0.8Range+ 0.1 ) x VDD
The voltage output is proportional output, VDD= 1.8~5.5V.

Product Overview

The CPS510 analog output series is a small, all-ceramic, PCB-mount pressure sensor. CPS510 analog output series products.Packed with a pressure sensor and signal conditioning chip, the sensor uses a unique algorithm to achieve multi-stage temperature compensation, providing a response to the applied pressure.Proportionally accurate, high-level analog output signals.
The CPS510 analog output series offers low cost, high performance, good linearity, repeatability and stability, and high sensitivity. Use the board
Loaded package, convenient for customers to use.

Features

All-ceramic construction, corrosion-resistant
High sensitivity, high stability and high reliability
Differential pressure and gauge pressure are optional
The operating temperature range is -20~85°C
PCB on-board package
Digital or analog output

Product Applications

Medical equipment
Fire safety system
Gas flow meter/pressure switch
Consumer electronics, Internet of Things applications
