Product Description

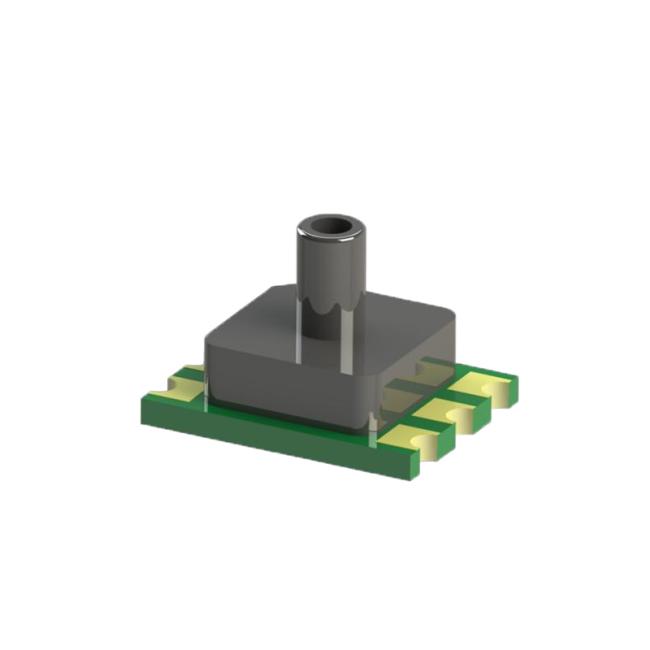

The CPM121 system-in-a-package (SIP) solution comprises of aresistive bridge type pressure sensor and a 24-bit ADC for high resolution and accurate pressure measurements. The fully calibrated pressure and temperature compensated digital output makes the CPM121 solution simple to use.The CPM121 includes internal calibration logic that provides accurate pressure and temperature measurements to the application via the I²C interface.There is no need to separately download internal calibration coefficients and have the host microcontroller perform complicated compensation calculations.
| PARAMETER | SYMBOL | CONDITIONS | MIN | TYP | MAX | UNITS |
| PRESSURE RANGE CHARACTERISTICS | ||||||
| Range |
30 (300) |
120 (1200) |
kPa (mbar) |
|||
|
Accuracy |
30 to 120kPa (-20°C to 0°C) |
-0.2 (-2.0) |
±0.17 (±1.7) |
+0.2 (+2.0) |
kPa (mbar) |
|
|
30 to 120kPa (0°C to 65°C ) |
-0.15 (- 1.5) |
±0.10 (±1.0) |
+0.12 (+1.2) |
kPa (mbar) |
||
| Solder Drifts |
-0.1 (- 1.0) |
+0.2 (+2.0) |
kPa (mbar) |
|||
| Resolution1 | 0.17 | Pa | ||||
| Noise in Pressure |
Full Bandwidth, Normal Mode Altitude Based on Relative Pressure |
1 10 |
Pa cm |
|||
| TEMPERATURE SENSOR | ||||||
| Range | -40 | 85 | °C | |||
| Resolution | 0.003 | °C | ||||
| Accuracy | -40°C to 85°C | -1 | ±0.75 | +1 | °C | |
| OPERATION | ||||||
| Supply Voltage to GND2 | VSUPPLY | 2 | 3.0 | 5.5 | V | |
| Operating Temperature Range | -40 | 85 | °C | |||
| I2C Pull-Up Resistors | RPU | 1 | 2.2 | kΩ | ||
|
1Guaranteed by design of 24bits ADC, and calculated according to the range in application. 2 Factory calibrated for Pressure and Temperature at 3.0V±10%. Output accuracy will be affected if used outside this range. Other ranges available upon request. |
||||||
