Needle Bearing Na4824 For Superior Durability
Price:
0.1~100$/pcs
MOQ:
100pcs
Delivery Time:
5-7 days after receiving your payment
Brand:
OTOTRI
Product Description

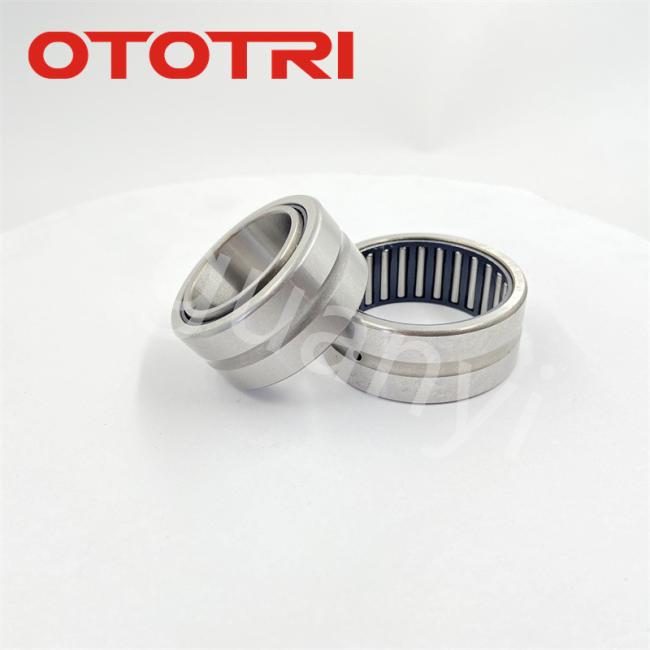

OTOTRI Machined Needle Roller Bearing NA4824 for Superior Durability
Product Description
Needle Roller Bearing NA4824 Needle Bearing NA4824 Name: Needle Roller Bearings (needle bearing) is a cylindrical roller with roller bearings, relative to its diameter, roller both thin and long. This is called needle roller. Despite having a smaller cross-section, has a higher load bearing capacity, equipped with a thin and long needle bearing roller (roller diameter D≤5mm, L / D≥2.5, L is the length of the roller), so radial structure
is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial dimensions limited support structure.
is compact, its diameter size and load capacity and other types of bearings, minimum diameter, especially for radial dimensions limited support structure.
Series : NK,NKS,RNA49,RNA69,RNAO,NAO,HK,HF,KF,CR,AXK,NTA,KT
Material : Chrome steel GCR15
Brand:Neutral customized available
Material : Chrome steel GCR15
Brand:Neutral customized available
Application:
1. Wheel and pin bearing is widly applied in packaging machinery, food machinery,
2. Printing machinery, woodworking machinery, textile machinery, light machinery, mining
3. Machinery, engraving machines, automation equipment, CNC equipment, etc
2. Printing machinery, woodworking machinery, textile machinery, light machinery, mining
3. Machinery, engraving machines, automation equipment, CNC equipment, etc
|
Designations :
|
Needle Roller Bearing NA4824 Needle Bearing NA4824
|
|
|
Needle Roller Bearing with Flanges without Inner Ring
|
|
Ring Material :
|
GCR15/ Machined Steel
|
|
Roller Material :
|
GCR15/ Chrome Steel
|
|
Cage Material :
|
Nylon
|
|
Number of Row :
|
Single Row
|
|
Precision Rating :
|
P0 P6 P5 P4
|
|
Application Industries :
|
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Retail, Construction works , Energy
& Mining etc. |
|
Price List :
|
Negotiate
|
|
Service :
|
OEM or Customer Logo Acceptable and Sample Offer
|
|
Package :
|
Industrial Packing or As Customer Required
|
|
More Service :
|
plz Contact Us . The contact address is at the bottom.
|
Size Information
|
Bearing Model
|
Dimensions(mm)
|
|
|
Basic Load Rating(KN)
|
|
Weight(Kg)
|
||
|
|
d
|
F
|
D
|
Dyn.C
|
Stat.Co
|
|
||
|
NA4900
|
10mm
|
22mm
|
13mm
|
8800N
|
10400N
|
0.02Kg
|
||
|
NA4900 2RS
|
10mm
|
22mm
|
13mm
|
7370N
|
8150N
|
0.03 Kg
|
||
|
NA4901
|
12mm
|
24mm
|
13mm
|
9900N
|
12200 N
|
0.03 Kg
|
||
|
NA4901 2RS
|
12mm
|
24mm
|
13mm
|
8090N
|
9650N
|
0.03 Kg
|
||
|
NA4902
|
15mm
|
28mm
|
13mm
|
11200N
|
15300 N
|
0.03 Kg
|
||
|
NA4902 2RS
|
15mm
|
28mm
|
13mm
|
9130N
|
12000N
|
0.04 Kg
|
||
|
NA4903
|
17mm
|
30mm
|
13mm
|
11400N
|
16300N
|
0.04 Kg
|
||
|
NA4903 2RS
|
17mm
|
30mm
|
13mm
|
9520N
|
12900 N
|
0.04Kg
|
||
|
NA4904
|
20mm
|
37mm
|
17mm
|
21600 N
|
28000 N
|
0.08Kg
|
||
|
NA4904 2RS
|
20mm
|
37mm
|
17mm
|
19400N
|
22400 N
|
0.08Kg
|
||
|
NA49/22
|
22.000mm
|
39mm
|
17mm
|
23300 N
|
32000 N
|
0.08 Kg
|
||
|
NA4905
|
25mm
|
42.000mm
|
17mm
|
24200 N
|
34500 N
|
0.09 Kg
|
||
|
NA4905 2RS
|
25mm
|
42.000mm
|
17mm
|
21600N
|
27500N
|
0.09 Kg
|
||
|
NA49/28
|
28.000mm
|
45mm
|
17mm
|
25100 N
|
36500 N
|
0.10 Kg
|
||
|
NA4906
|
30mm
|
47mm
|
17mm
|
25500 N
|
39000 N
|
0.10 Kg
|
||
|
NA4906 2RS
|
30mm
|
47mm
|
17mm
|
23300 N
|
32000 N
|
0.11 Kg
|
||
|
NA49/32
|
32.000mm
|
52.000mm
|
20mm
|
30800 N
|
51000N
|
0.16 Kg
|
||
|
NA4907
|
35mm
|
55.000 mm
|
20mm
|
31900 N
|
54000 N
|
0.17 Kg
|
||
|
NA4907 2RS
|
35mm
|
55.000mm
|
20mm
|
27000 N
|
43000 N
|
0.18 Kg
|
||
|
NA4908
|
40mm
|
62mm
|
22mm
|
42900 N
|
71000N
|
0.23 Kg
|
||
|
NA4908 2RS
|
40mm
|
62mm
|
22mm
|
36900 N
|
58500 N
|
0.25Kg
|
||
|
NA4909
|
45mm
|
68.000mm
|
22mm
|
45700 N
|
78000 N
|
0.27 Kg
|
||
|
NA4909 2RS
|
45mm
|
68.000mm
|
22mm
|
39100 N
|
64000 N
|
0.29 Kg
|
||
|
NA4910
|
50mm
|
72mm
|
22mm
|
47300 N
|
85000 N
|
0.27 Kg
|
||
|
NA4910 2RS
|
50mm
|
72mm
|
22mm
|
40200N
|
69500 N
|
0.30 Kg
|
||
|
NA4911
|
55mm
|
80.000mm
|
25mm
|
57200 N
|
106000 N
|
0.40 Kg
|
||
|
NA4912
|
60mm
|
85.000mm
|
25mm
|
60500 N
|
114000 N
|
0.43 Kg
|
||
|
NA4913
|
65.000mm
|
90mm
|
25mm
|
61600N
|
120000 N
|
0.46 Kg
|
||
|
NA4914
|
70.000mm
|
100mm
|
30mm
|
84200 N
|
163000 N
|
0.73 Kg
|
||
|
NA4915
|
75.000mm
|
105mm
|
30mm
|
84200 N
|
170000 N
|
0.78 Kg
|
||
|
NA4916
|
80.000mm
|
110.000mm
|
30mm
|
88000 N
|
183000 N
|
0.88 Kg
|
||
|
NA4917
|
85.000mm
|
120mm
|
35mm
|
108000 N
|
250000 N
|
1.25 Kg
|
||
|
NA4918
|
90.000mm
|
125.000mm
|
35mm
|
112000 N
|
265000 N
|
1.30 Kg
|
||
|
NA4920
|
100.000mm
|
140.000mm
|
40mm
|
125000N
|
280000 N
|
1.90 Kg
|
||
|
NA4922
|
110.000mm
|
150.000mm
|
40mm
|
130000 N
|
300000 N
|
2.10Kg
|
||
|
NA4924
|
120.000mm
|
165.000mm
|
45mm
|
176000 N
|
405000 N
|
2.85 Kg
|
||
|
NA4926
|
130mm
|
180.000mm
|
50mm
|
198000N
|
480000 N
|
3.90Kg
|
||
