Smooth Multiglide Sliding Glass Doors For Modern Indoor Outdoor Transitions
125 Series Sliding Door: Smooth Wide-Panel Glide for Modern Indoor-Outdoor Transitions
INFORMATION
| Brand | Dimax |
| Material | 6063-T5 |
| Thickness | 3.0mm |
| Bearing | 300kg |
| Blade width | 600-2500mm |
| Blade height | 1500-3500mm |
| Certification | NFRC, CSA, CE, |
| Glass | Single-pane glass, laminated glass, double-layer tempered glass, tempered laminated glass, triple-layer tempered glass |
| Powder-coat | Interpon, Dulux (warranty treatment 10/20 years) |
| Hardware | KIN LONG,BONWAY,ROTO and so on |
| Configuration | XXO,OXX,OXXXXO,corner slider or customized design |
| Heat Insulation | UW1.7W/㎡K |
| soundlnsulafion | Rw up to 37dB |
| Ufimate Wind Pressure | +2160pa |
| Water Resistance | +330Pa |

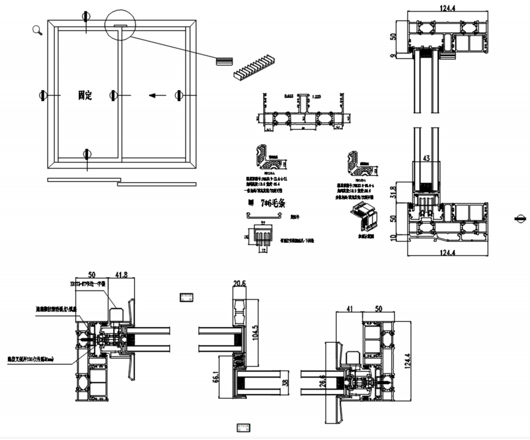

The 125 Series Sliding Door employs high-strength narrow-frame aluminum profiles paired with a low-friction roller system, enabling smooth and quiet operation of wide-span door panels tailored for open-space designs in modern architecture. The system comes standard with double-glazed laminated insulating glass, effectively reducing external noise while enhancing safety and impact resistance, and supports customized single-panel dimensions up to 1800mm × 2400mm. The track features an innovative embedded self-cleaning design, combined with multi-point locking and anti-lift mechanisms at the base to ensure long-term structural stability in coastal and windy environments. An optional smart electric control system is available, supporting remote control, sensor activation, and integration with security devices—delivering a technologically advanced access solution for high-end residences, commercial galleries, and hospitality spaces.
