YDS-series products are mainly made up of outer shell, inner vessel, neck tube, multi-layer isolating material and canisters. The outer shell and inner vessel are made of the aluminum alloy plate featuring light weight, high cryogenic strength and corrosion resistance.
Real-time Temperature Sensor for Sensitive Liquid Nitrogen Monitoring -196-200C Range
Price:
$480.00/sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description

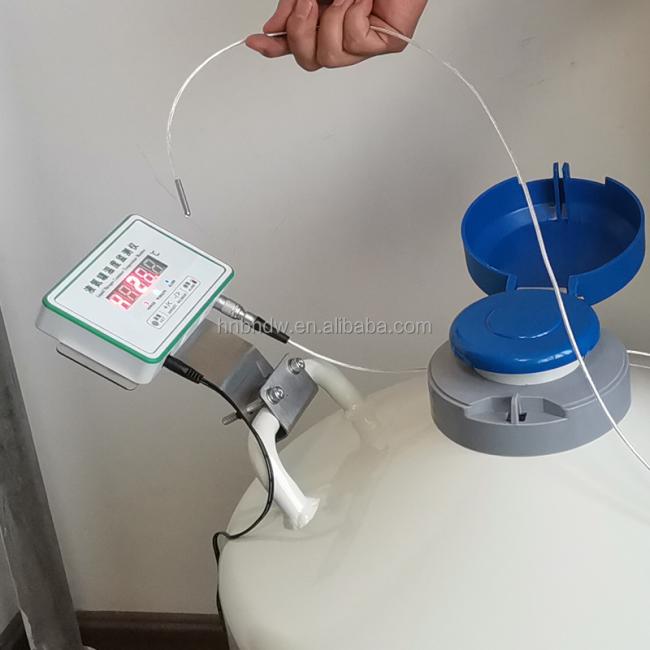

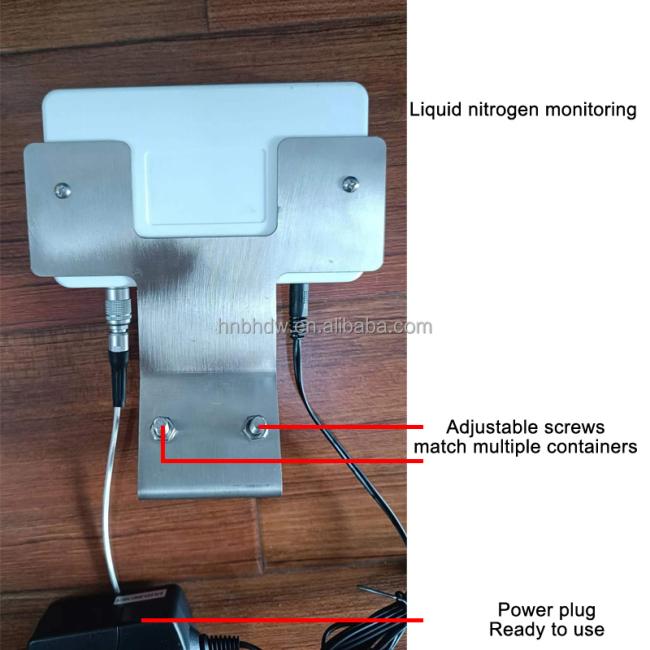

Sensitive irreplaceable biological liquid nitrogen monitoring with temperature sensor
ZTC-100 series ultra-low temperature special temperature controller is a high-tech product specially developed and produced for measuring the liquid level and temperature of liquid nitrogen containers. It uses single chip microcomputer technology, uses platinum thermal resistance to measure the temperature of liquid nitrogen and performs digital display, provides low liquid level alarm, over temperature alarm, sensor failure sound and light alarm and other functions, real-time monitoring of temperature parameters, liquid level, etc. of liquid nitrogen container operation parameter. It can also automatically start and stop the solenoid valve according to the set temperature point to automatically replenish liquid nitrogen to the cryogenic equipment, which effectively improves the safety and reliability of the liquid nitrogen container operation. At the same time, the product can also be upgraded to provide functions such as RS485 communication mode, standard current signal (4-20mA) output mode, and convenient connection with the monitoring system.
Product Description
Product Model | Capacity(L) | Mouth.D.(≤mm) | Outside.D.(≤mm) | Height(mm) | Weight(kg) |
YDS-2 | 2 | 30 | 224 | 400 | 2.8 |
YDS-3 | 3 | 50 | 224 | 430 | 3.5 |
YDS-6 | 6 | 50 | 305 | 505 | 6 |
YDS-10 | 10 | 50 | 305 | 550 | 6.2 |
YDS-15 | 15 | 50 | 365 | 600 | 9.5 |
YDS-20 | 20 | 50 | 365 | 640 | 10 |
YDS-30 | 30 | 50 | 446 | 690 | 14.8 |
YDS-35 | 35 | 50 | 446 | 695 | 15.6 |
YDS-50B | 35 | 50 | 500 | 805 | 20.3 |

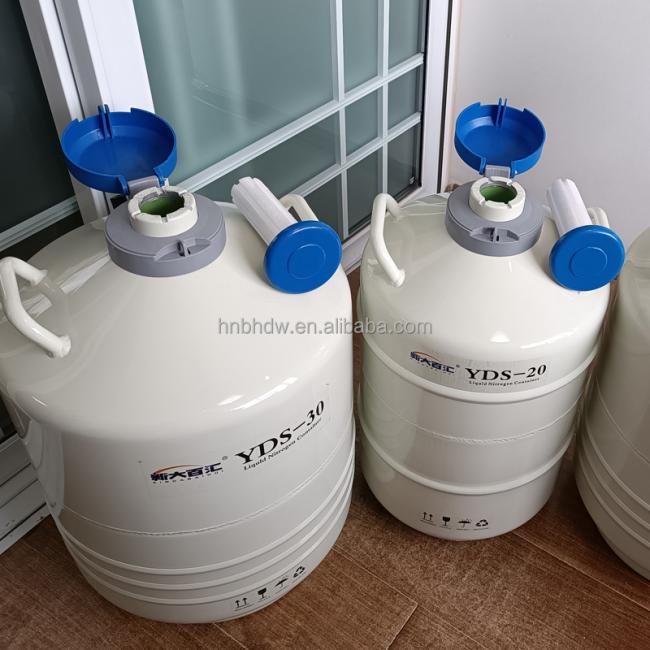

YDS liquid nitrogen tank
This kind of liquid nitrogen cryogenic container has the advantages of light weight, easy to carry, compact and portable, low nitrogen consumption in the static
If they are workable for your market, please contact me for more related product information.Upon receipt of your feedback, we will update you more relevant proposals and working videos for your options.
Recommend Products
Packing & Delivery
Usually We send the goods by air, small order is best to choose international express, such as EMS,UPS,TNT,e-EMS,FedEx-IE,FedEx-IP, Aramex is better for middle east etc. Big orders are suitable for the delivery by sea.
Company Profile
Henan Baihui Cryogenic Equipment Co., Ltd. is engaged in the production of liquid nitrogen tanks, transportation containers, self-pressurized dewar tanks, liquid nitrogen cups, and provides a variety of accessories for users to choose。 Professional engineers and production team can help you answer questions and provide solutions.We attach importance to and promote the interaction with the customer team to maximize the interests of customers
FAQ
Product Application
Liquid nitrogen biological container is a high-tech products, which mainly used for livestock breeding of frozen storage of
semen(artificial insemination),cell cryopreserved in the low-temperature operation, industrial cooling assembly, the metal
material cold treatment, cryogenic grinding, such as superconducting magnet is also an indispensable instrument essential.
semen(artificial insemination),cell cryopreserved in the low-temperature operation, industrial cooling assembly, the metal
material cold treatment, cryogenic grinding, such as superconducting magnet is also an indispensable instrument essential.
