Dimond Cutter Machine for Granite Marble Limestone Cutting in Construction Works

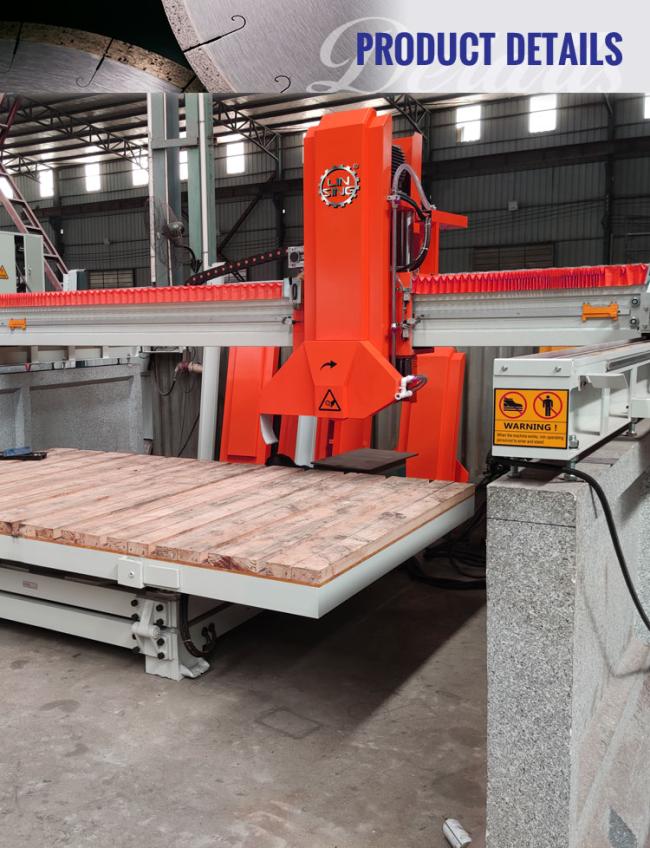

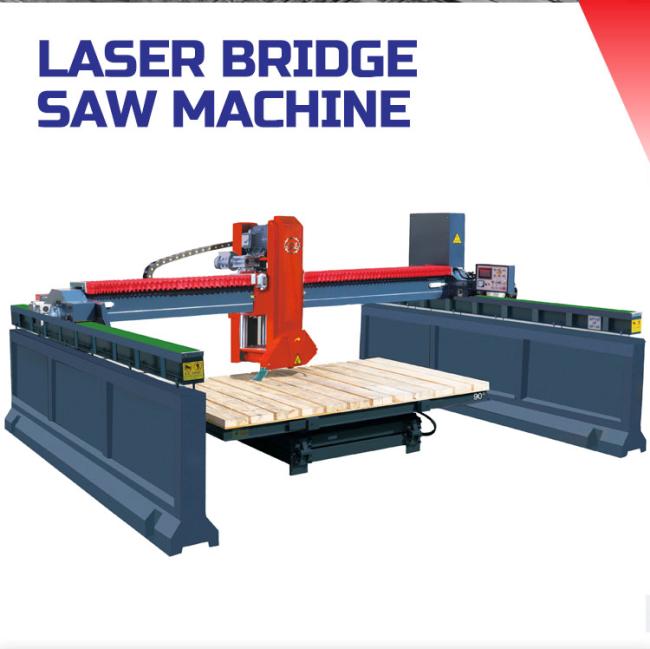

Laser Bridge Saw Machine

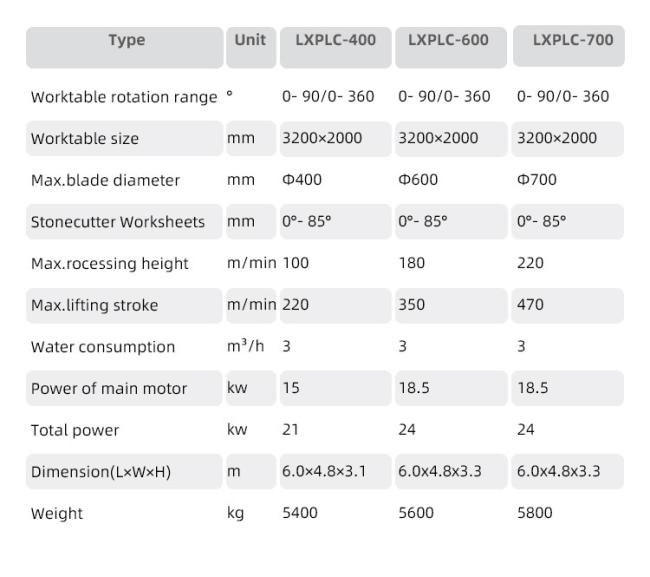

Laser bridge cutting machine is for slab processing, which adopts programmer logic controller, fine frequency converter, signing laser etc for automatic function and guarantee its precise and stable cutting We have model LXPLC-400, LXPLC -600, LXPLC-700 for you to choose.
Product Features:
1. Bridge structure with wide crossbeam, large size of slab cutting are available.
2. Equipped with infrared device, precise cutting location reachable.

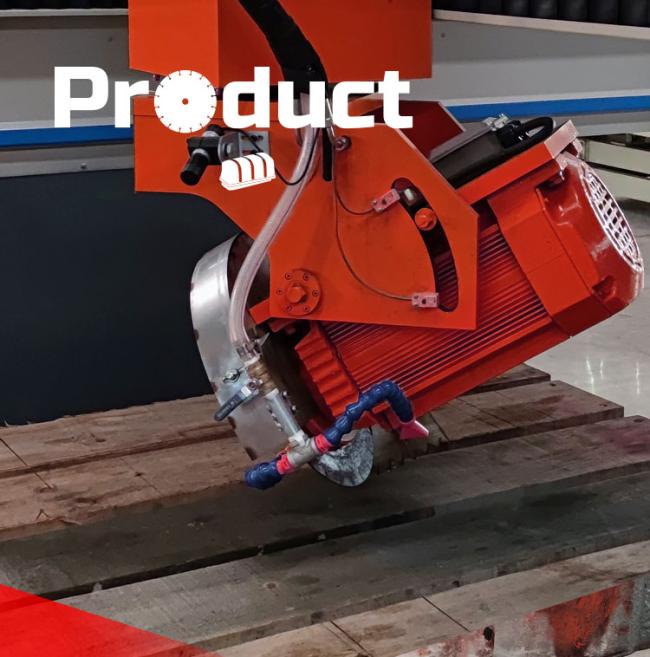

3. 45 degree cutting head for chamfering.

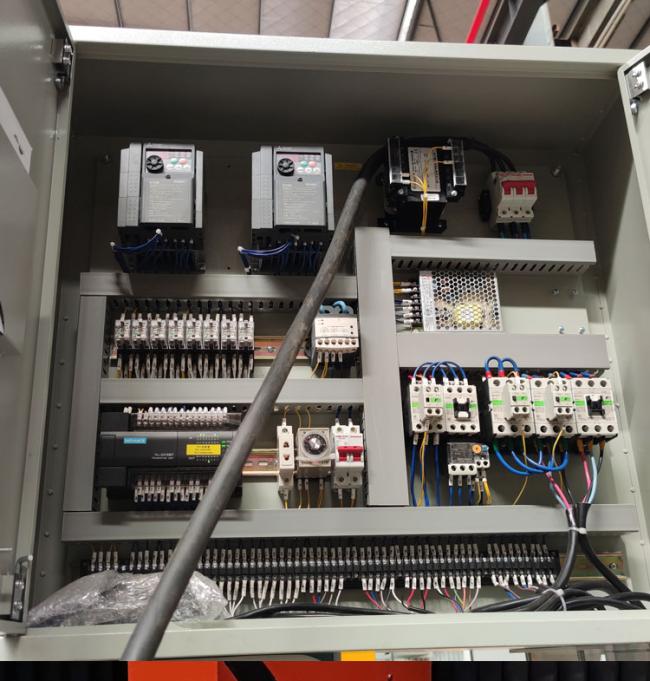

4. PLC control system, programmable, fully automatic& smooth cutting.
5. Precise movement of head in X Y Z direction by rack & gear.
6. Electric part of Japanese name brand adopted, reliability guaranteed.
7. Touch-senstive operating system, friendly human-machine interface.
8. Magnetic grid system for crossbeam forward and backward movement, flexible, accuracy and less error.
Product specification:
| Model | Unit | YTQQ-500 | YTQQ-600 |
| Max. diameter of blade | mm | 500 | 600 |
| Main motor power | KW | 15/18.5 | 15/18.5 |
| Cutting head rotating degree | n° | 90° | 90° |
| Table dimensions(L x W) | mm | 3200*1800 | 3200*1800 |
| Table tilting degree | n° | 0-85° | 0-85° |
| Max. tutting size(L x W x H) | mm | 3200*1800*130 | 3200*1800*180 |
| Overall dimensions(L x W x H) | mm | 5800*3000*2900 | 5800*3000*3000 |
