7M Series 32.768KHz SMD7015 Tuning Fork Crystal Resonator For High Precision And Stability 32.768KHz Solution
Price:
Negotiate
MOQ:
3000pcs
Delivery Time:
2~4weeks
Brand:
SJK
Product Description
7M Series 32.768KHz SMD7015 Tuning Fork Crystal Resonator For High Precision And Stability 32.768KHz Solution
Features:
- 7.0x1.5mm package size, 2P pins, 32.768KHz solutions
- 32.768KHz crystal, small, ultra-thin
- High precision frequency for better stability
- Industrial grade temperature from -40 ℃ to +85 ℃
- Excellent heat resistance and environmental characteristics
- Automatic mount and reflow soldering
- Compliant with RoHS and Reach standards, green and environmentally friendly
Electronic Specifications:
| Item | 7M Series 32.768KHz SMD7015 Crystal Resonator |
| Nominal Frequency | 32.768KHz |
| Load Capacitance | 7pF, 9pF, 12.5pF, or specify |
| Frequency Tolerance (@25ºC) | ±20ppm, or specify |
| Series Resistance | 65KΩ max. |
| Turnover Temperature | ±25°C±5°C |
| Drive Level | 1.0μW max. |
| Parabolic Coefficient | (-0.034±0.006)×10-6/°C2 max. |
| Operating Temperature | -20~+70°C, -40~+85°C, or specify |
| Storage Temperature | -55~+125°C |
| Shunt Capacitance | 0.8pF Typ. |
| Aging | ±3ppm/Year max. |
| Size (L×W×H) (mm) | 7.0×1.5×1.40 |
| Packing Unit | 3000pcs./Reel |

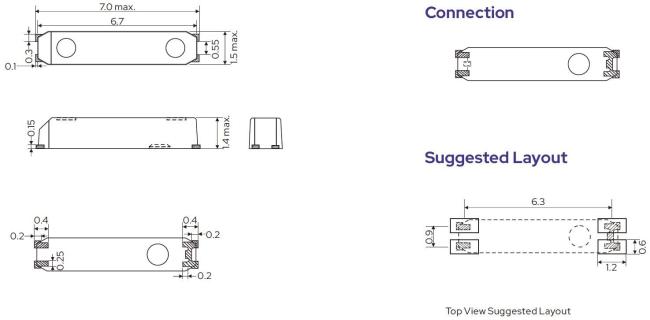

Dimension:
