1N Series Ultra Small Size SMD 2016 Crystal Oscillator 1MHz To 220MHz High Stability Low Jitter For Mobile Communication
Price:
Negotiate
MOQ:
3000 pcs
Delivery Time:
2~4weeks
Brand:
SJK
Product Description
1N Series Ultra Small Size SMD 2016 Crystal Oscillator 1MHz to 220MHz High Stability Low Jitter for mobile communication
Features:
- 2.0*1.6 size, 1.1mm high. Ultra miniature and lightweight SMD crystal oscillators
- Tri-state function
- Supply voltage: 1.8V~3.3V
- CMOS output, available frequency range: 1MHz~220MHz
- Low jitter provides for high performance
- Application for mobile communications, Bluetooth, IoT, Smart phone, Automotive multimedia device, Medical, etc
- RoHS Compliant /Pb Free
Electronic Specifications:
| Item | 1N Series SMD 2016 Crystal Oscillator |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Frequency Range | 1MHz to 220MHz |
| Supply Voltage | 1.8V TO 3.3V, 5V |
| Frequency Stability (All Condition) | ±20ppm, ±25ppm, ±30ppm, ±50ppm, or specify |
| Current Consumption | 10mA max. |
| Stand-by Current | 10µA max. |
| Symmetry | 45~55% |
| 0 Level Output Voltage (VOL) | 0.1 Vcc max. |
| 1 Level Output Voltage (VOH) | 0.9 Vcc min. |
| Rise Time /Fall Time | 10ns max. |
| OE 0 Level Output Voltage (VIL) | 0.2 Vcc max. |
| OE 1 Level Output Voltage (VIH) | 0.8 Vcc min. |
| Start-up Time | 1ms max. |
| Operating Temperature | -40°C To +85°C, or specify |
| Storage Temperature | -55°C To +125°C, or specify |
| Phase Jitter | 1pS max. |
| Package Size | 2.0*1.6*0.7mm |

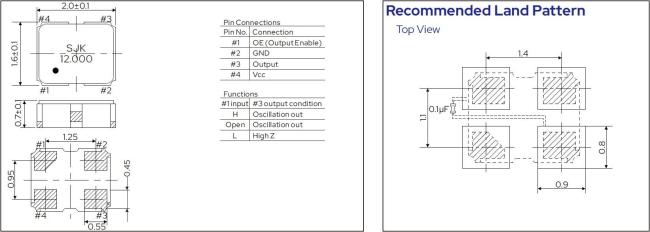

Dimensions:
