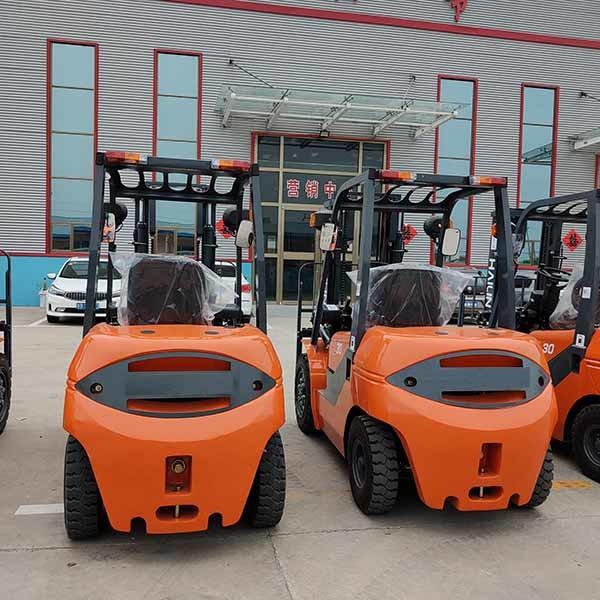

Duplex 3m CPCD35 3.5 Ton Diesel Forklift MITSUBISHI Diesel Forklift Use In Warehouse
Duplex 3m new CPCD35 3.5 Ton diesel forklift MITSUBISHI diesel engine red color
Main information:
Product name: 3.5Ton diesel forklift truck Z series

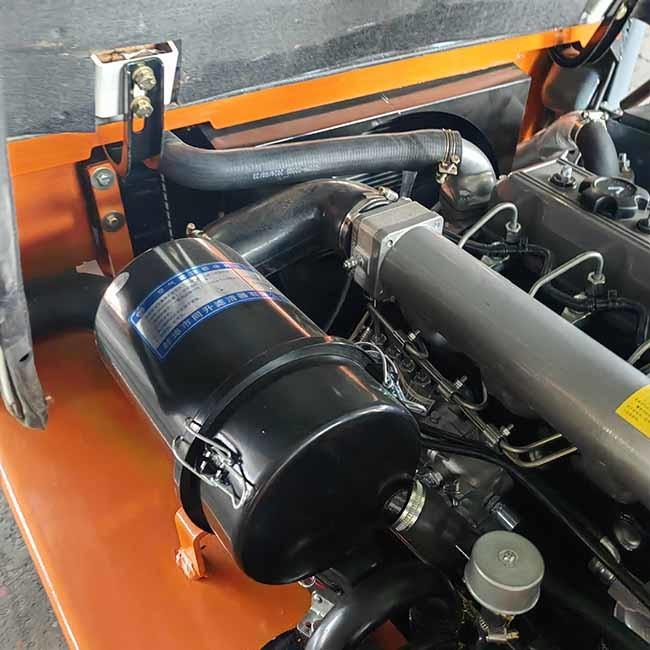

Engine: Mitsibushi S4S diesel engine
Transmission: Automatic
Mast type: Duplex mast 3.0m lifting height
Tires: Pneumatic tires
Fork: 1320mm
Attachments: Side shift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
New-type Rear Axle
New rear axle design increases turning angle to 78 and reduces turning radius.
Long working life
I beam rails and heavy tie bar construction reduce twisting while handling long,lateral loads on rough surface applications. Sealed bearing load rollers and are externally adjustable to compensate for long term wear.
New design of key parts
The optimal design of key parts like frame, mast, overhead guard and steering axle improve the whole truck's safety and reliability.
| Specification | CPCD35 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 3500 |
| 3 | Load center | mm | 500 |
| 4 | Lift height | mm | 3000 |
| 5 | Full free lift height | mm | 100 |
| 6 | Fork dimension | mm | 1220×125×50 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 2550 |
| 9 | Groud clearance | mm | 135 |
| 10 | Overhead guard height | mm | 2165 |
| 11 | Front overhang | mm | 495 |
| 12 | Max travel speed | km/h | 19 |
| 13 | Max lift speed | mm/s | 480 |
| 14 | Max.traction power | KN | 13.5 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 4065 |
| 17 | Total length without fork | mm | 2995 |
| 18 | Total width | mm | 1225 |
| 19 | Mast extended height | mm | 4265 |
| 20 | Mast lowered height | mm | 2060 |
| 21 | Tyres Front | 28x9-15-12PR | |
| 22 | Type Rear | 6.50-10-10PR | |
| 23 | Wheelbase | mm | 1700 |
| 24 | Tread | mm | 1000/970 |
| 25 | Service weight | Kg | 4650 |
| 26 | Battery | V/Ah | 12/80 |
| 27 | Engine model | MITSUBISHI S4S | |
| 28 | Engine power | kw/r.p.m | 35.3 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa | 18.5 |
