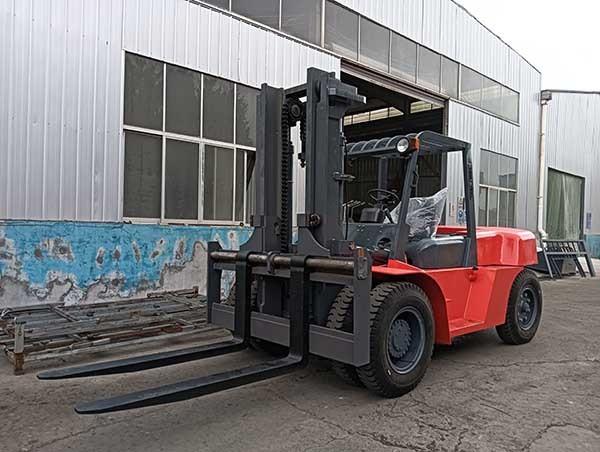

XICHAI 6110 Diesel Engine Forklift 6 Cylinders 10000kg FD100 Diesel Lift Truck
10000kg FD100 10 ton diesel powered lift truck XICHAI 6110 engine 6 cylinders
Main information:
Engine: Xichai 6110 diesel engine
Transmission: Automatic
Mast type: Triplex 4.5m mast
Tires: pneumatic double front
Fork: 1520mm
Attachments: fork positioner,sideshift
The higher-end model in of YEAWEY forklift products line, sets new bar in counter balance forklifts. It offers graceful appearance and over 55 improvements of inside and out ergonomic design, enhanced safety and performance while lowering vibration, operating noise and easy to maintain.
Working efficiency improved
Small turning radius makes steering flexible and easy.The truck has fast lifting speed, good gradeability and high efficiency.High working efficiency guarantees the truck could meet the requirements for various kinds of complicated work condition perfectly wherever at port, dock and railway station.
Ergonomic comfort
Perfect shape & position of manual gear level facilitate the drivers’ operation.Independent dual rear lights together with warning light are easy to recognize & maintain.
Suspension Seat (Optional)
Optional TOYOTA suspension seat with tilting and sliding adjustment absorbs vibrations, improving comfort and safety.
Adjustable Steering Wheel
Provide convenience and can customize to the operator's desired position.
Increased hood opening angle
Increases opening angle to 80° to facilitate maintenance.
Opening engine hood is easy with a revised, simple pull lever.
| Specification | CPCD100 | ||
| 1 | Fuel model | Diesel | |
| 2 | Load capacity | kg | 10000 |
| 3 | Load center | mm | 600 |
| 4 | Lift height | mm | 4500 |
| 5 | Full free lift height | mm | 1500 |
| 6 | Fork dimension | mm | 1520×175×80 |
| 7 | Mast tilting angle | Deg. | 6/12 |
| 8 | Min.turning radius | mm | 3950 |
| 9 | Groud clearance | mm | 250 |
| 10 | Overhead guard height | mm | 2560 |
| 11 | Front overhang | mm | 710 |
| 12 | Max travel speed | km/h | 26 |
| 13 | Max lift speed | mm/s | 400 |
| 14 | Max.traction power | KN | 52 |
| 15 | Max. gradeability | % | 20 |
| 16 | Total length with fork | mm | 5565 |
| 17 | Total length without fork | mm | 4345 |
| 18 | Total width | mm | 2260 |
| 19 | Mast extended height | mm | 4450 |
| 20 | Mast lowered height | mm | 2840 |
| 21 | Tyres Front | 9.00-20-14PR | |
| 22 | Type Rear | 9.00-20-14PR | |
| 23 | Wheelbase | mm | 2800 |
| 24 | Tread | mm | 1600/1700 |
| 25 | Service weight | Kg | 12500 |
| 26 | Battery | V/Ah | (12/100)x2 |
| 27 | Engine model | XICHAI 6110 | |
| 28 | Engine power | kw/r.p.m | 85 |
| 29 | Transmission | Automatic | |
| 30 | Work press | Mpa |
20 |
