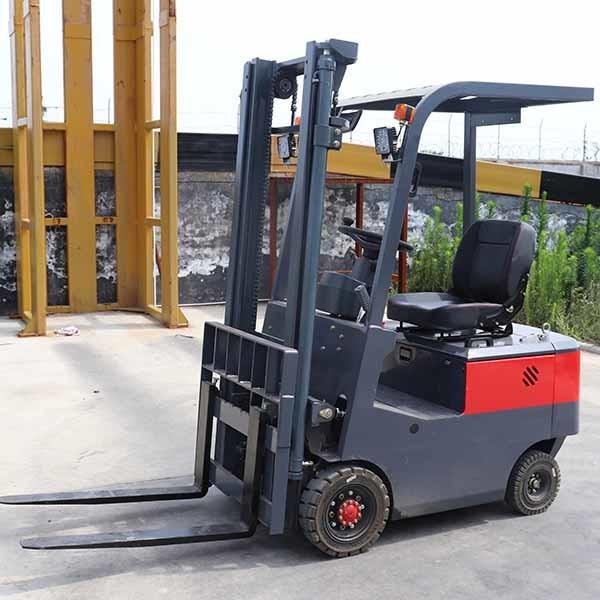

CPD10 1T Lead Acid Battery Forklift 1000kgs Container Mast Electric Fork Truck
1000 kgs container mast CPD10 1 T lead acid battery forklift container mast
Main information:
Load capacity: 1000kg*500mm
Lead acid battery 48V/160Ah
Chinese AC controller
AC lift motor and AC drive motor
Automatic transmission

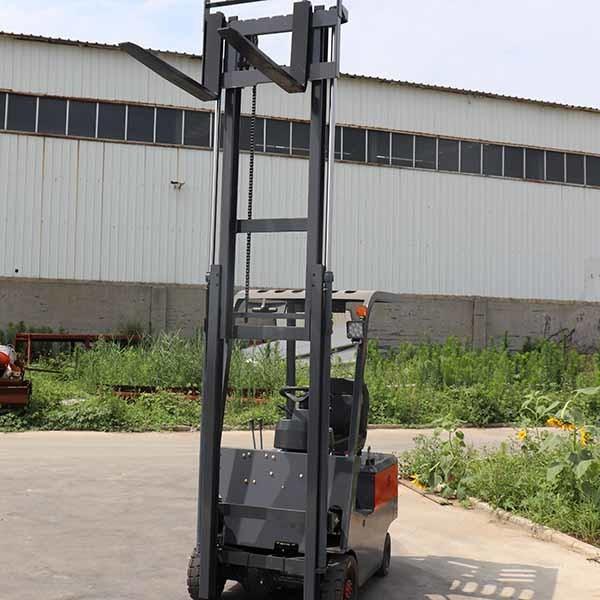

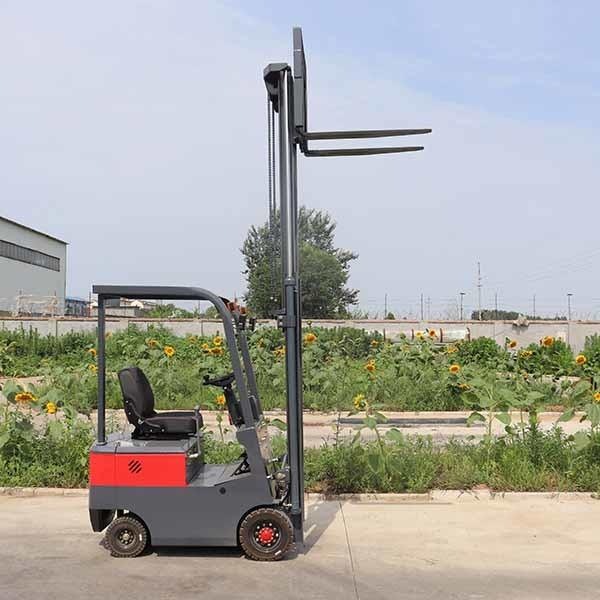

2 stage 3.5m mast
Pneumatic tires
Fork 1220mm
Attachments: according to customers' requirements.
ADVANTAGES

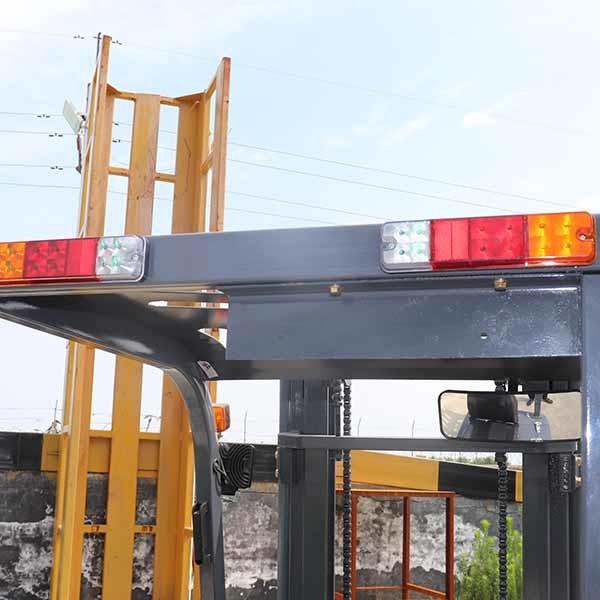

The design of Yeawey electric forklift is based on the original G series with combination of the advantages to meet the light and medium applications with great comfort and efficiency. The truck is optional to equipped with either Lead-acid battery or Li-ion battery. With lowered center of gravity and overhead guard, the truck is ideal to be used in limited spaces such as entering elevator.
Curtis controller
The trucks are equipped with Curtis controllers.CAN-bus technology makes the diagnostic and trouble shooting easier.The use of proved and certified components helps to ensure the conformity to international safety standards with all the supporting documents available as required by law.
AC maintenance-free drive motor
Adopt maintenance-free and powerful AC drive motor. Compared with traditional DC motors, our AC motors do not need to replace Carbon brushes. Equipped with speed sensor and temperature sensor, greatly improving the AC motor’s reliability.
High performance transmission:

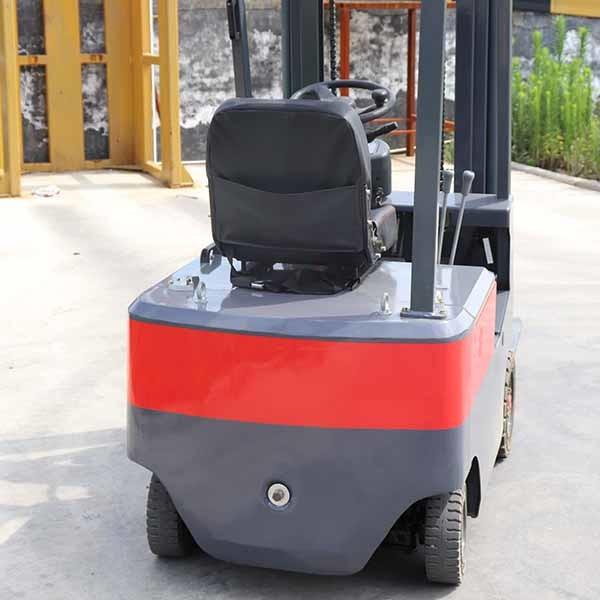

Transmission system uses a horizontal fan-shaped drive axle arranged in parallel with a large transmission ratio. The battery is installed at the bottom of the frame.Traveling motor adopts AC maintenance-free motor.
Multi-function dashboard:
Multi-function display screen with fault alarm, low battery reminder. High, medium and low speed modes.
Adopt car control mode:

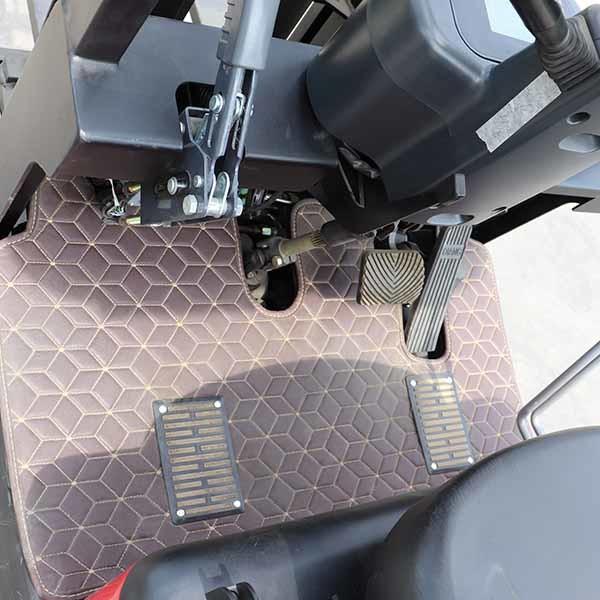

Suspended driving brake system, step-less speed change.Finding driving pleasure at work.
| Item | Model | CPD10 | |
| 1 | Power type | Battery | |
| 2 | Rated load | KG | 1000 |
| 3 | Load center distance | mm | 400 |
| 4 | Driving type | Seat | |
| 5 | Length With fork | mm | 2592 |
| 6 | Length Without fork | 1652 | |
| 7 | Whole Width | 940 | |
| 8 | Height no lifting frame | 2040 | |
| 9 | Top frame height | 1950 | |
| 10 | Max Height working | 3820 | |
| 11 | Distance from seat to top light | 970 | |
| 12 | Wheel base | 1020 | |
| 13 | Front overhang | 327 | |
| 14 | Back overhang | 313 | |
| 15 | Front wheel tread | 840 | |
| 16 | Back wheel tread | 741 | |
| 17 | Min Floor clearance | 90 | |
| 18 | Max lifting height | 3000 | |
| 19 | Free lifting height | 0 | |
| 20 | Fork changing | 820/190 | |
| 21 | Min Turning radius(outside) | 1800 | |
| 22 | Min Right angle aisle width | 2000 | |
| 23 | Frame angle (front/back) | (°) | 6°/12° |
| 24 | Max lifting speed without goods | mm/s | 250 |
| 25 | Max lifting speed with full goods | 220 | |
| 26 | Max speed without goods | Km/h | 12 |
| 27 | Max speed with full goods | 11 | |
| 28 | Max climbing angle | ％ | ≤10 |
| 29 | Self weight | Kg | 1720 |
| 30 | Driving Wheel | 2x/2 | |
| 31 | Tyre model | Solid tyre | |
| 32 | Front Tyre | 15x4 1/2-8 | |
| 33 | Rear Tyre | 3.50-5 | |
| 34 | Hand Brake | Hydraulic Pedal | |
| 35 | Brake type | M-Hand | |
| 36 | Lead aicd Battery Volt/ capacity | V/Ah | 48V/160 |
| 37 | Lithium Battery Volt/ capacity | V/Ah | 48V/105 |
| 38 | Driving motor power | Kw | 4 |
| 39 | Pump power | 4 |
