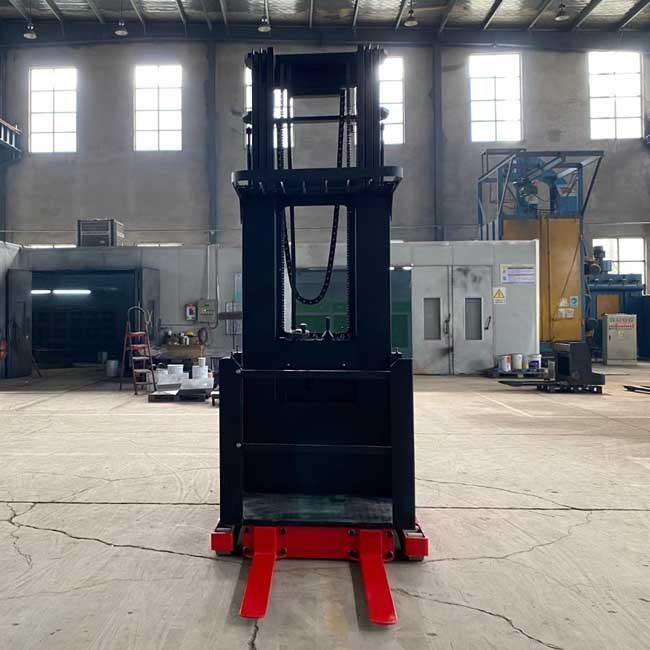

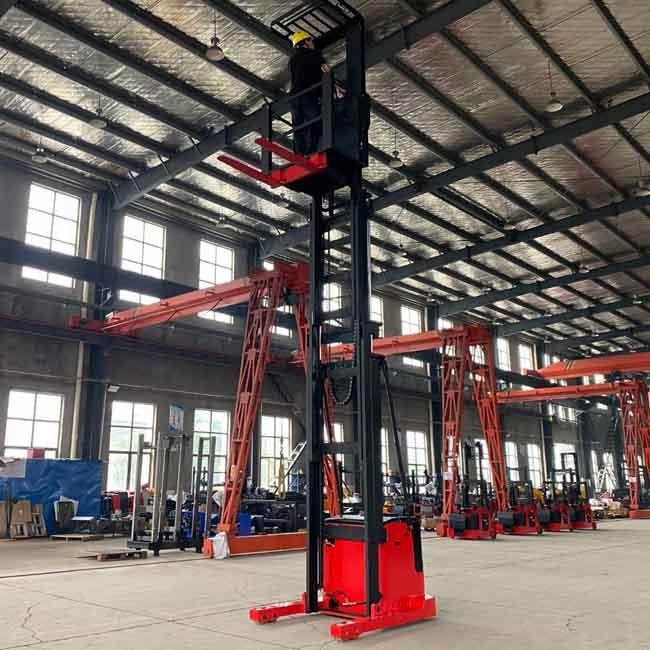

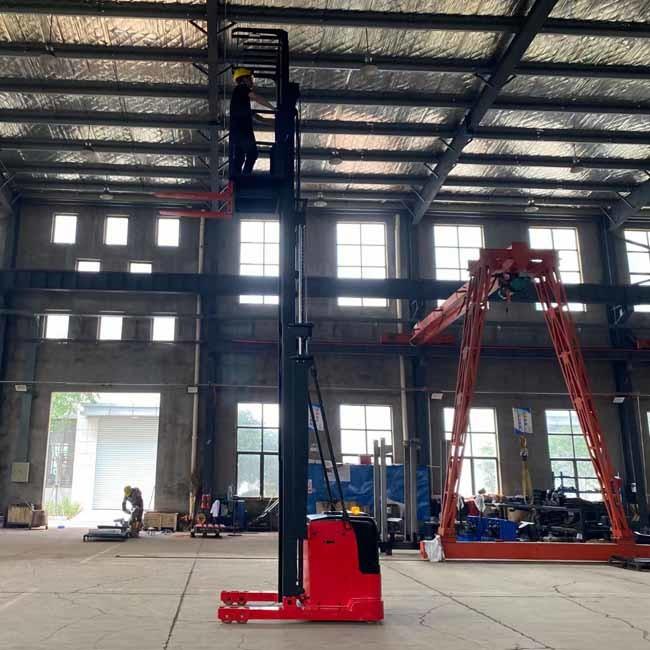

1500kg CQD15S-45 1T Order Picker Forklift Truck Triplex mast 4.5m to 6m
Main information:
Model: CQD15S-45
Load: 1500KG
Lifting height: 4500-6000mm
Curtis controller
AC drive and lift motor
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Stable operation
Elector-hydraulic proportional control system, good fretting performance, more stable work and more precise control.
Spacious foot space
Spacious foot space allows any operator to find a comfortable position and ensures adequate comfort during operation throughout the shift.
Stable mast
High-precision forward sliding rails and excellent clearance compensation design make the mast more stable during reach application.
Stable mast
The high-precision forward sliding rail and excellent clearance compensation design make the forward movement of the masts more stable.
| Item | Model | CQD15S-45 | |
| 1 | Drive mode | Order pick | |
| 2 | Load capacity | Q(kg) | 1500 |
| 3 | Load center | C(mm) | 500 |
| 4 | Wheel base | Y(mm) | 1845 |
| 5 | Self weight with battery | kg | 3000 |
| 6 | Tire type | Pu solid tire | |
| 7 | Front tire size | ∅×w(mm) | 180*70 |
| 8 | Rear tire size | ∅×w(mm) | 382*142 |
| 9 | Balance tire size | ∅×w(mm) | / |
| 10 | Track width, front wheels | b10(mm) | 1160 |
| 11 | Track width, Rear wheels | b11(mm) | / |
| 12 | Lift Height | h3(mm) | 4500 |
| 13 | The maximum height of the gantry during homework | h4(mm) | 6670 |
| 14 | The height of overhead guards | h14(mm) | 2120 |
| 15 | Length of the body | l2(mm) | 2500(no fork) |
| 16 | Width of the body | b1(mm) | 1300 |
| 17 | Fork Dimensions | s/e/l(mm) | 40/122/920 |
| 18 | Fork Spread | b5(mm) | 210-770 |
| 19 | Min. Turning radius | m2(mm) | 60 |
| 20 | Right angle stacking channel (1200 x1000mm) | Ast(mm) | 3670 |
| 21 | Min. Turning radius | Wa(mm) | 2140 |
| 22 | Max travel speed unladen/Load | km/h | 5/3 |
| 23 | Grade Ability unladen/Load | ％ | 10/6 |
| 24 | Drive brake | electromagnetic | |
| 25 | Drive motor | kw | 6.5 |
| 26 | Max. lifting speed unladen/Load | m/s | 0.275/0.215 |
| 27 | Max. lowing speed unladen/Load | m/s | 0.150/0.195 |
| 28 | Lift motor | kw | 6.3 |
| 29 | Battery type | Lead acid | |
| 30 | Battery capacity | V/Ah | 48V300Ah |
| 31 | Charger-intelligent | v/a | 48V/40A |
| 32 | Drive Controll Type | alternating current | |
| 33 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
