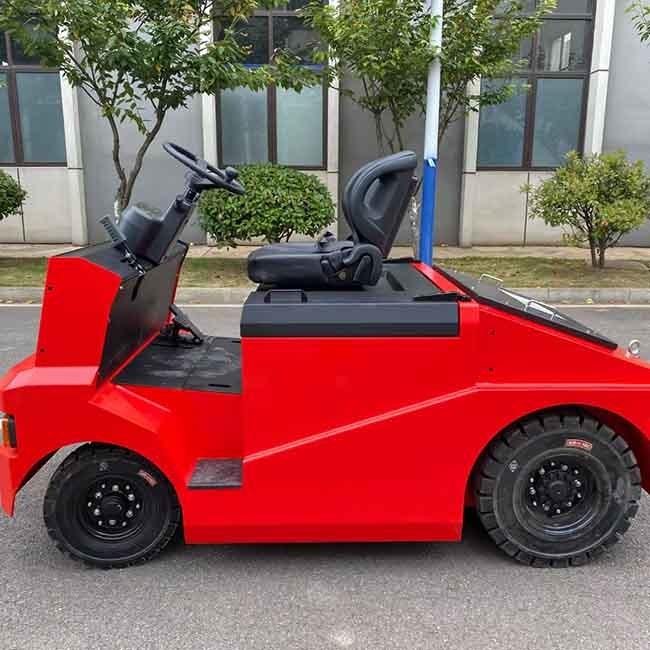

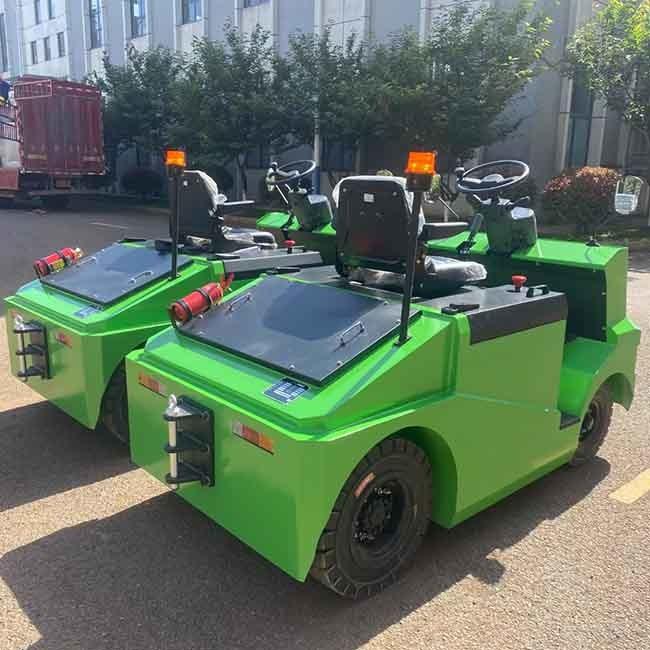

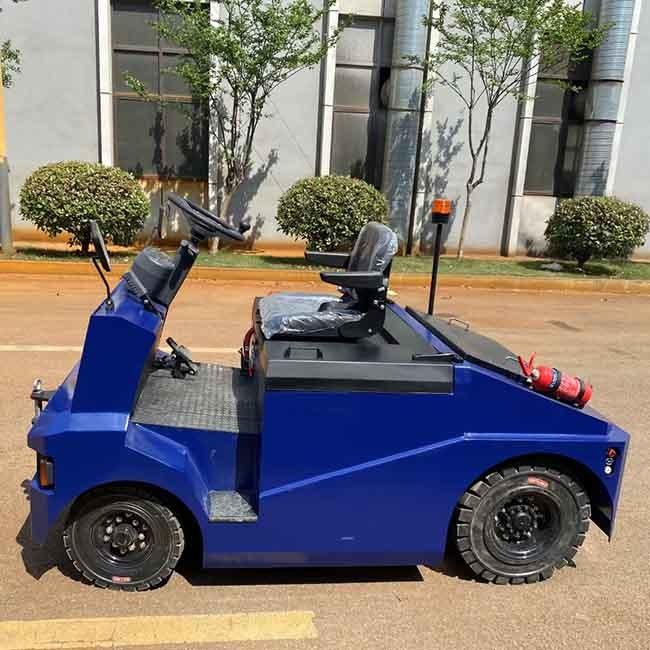

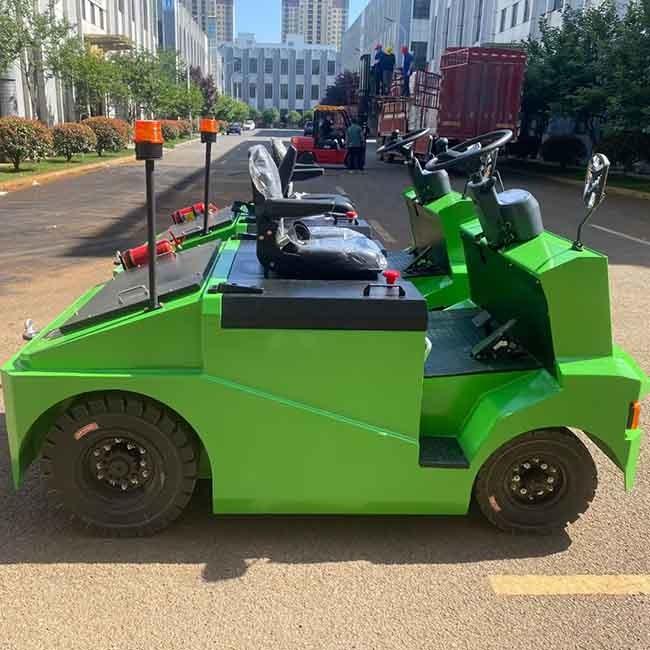

QDD120/150 Seated Electric Tow Tractor Traction weight:12000/15000KG
Main information:
Curtis controller
AC lift and drive motor
Lead acid or lithium battery
Seating type

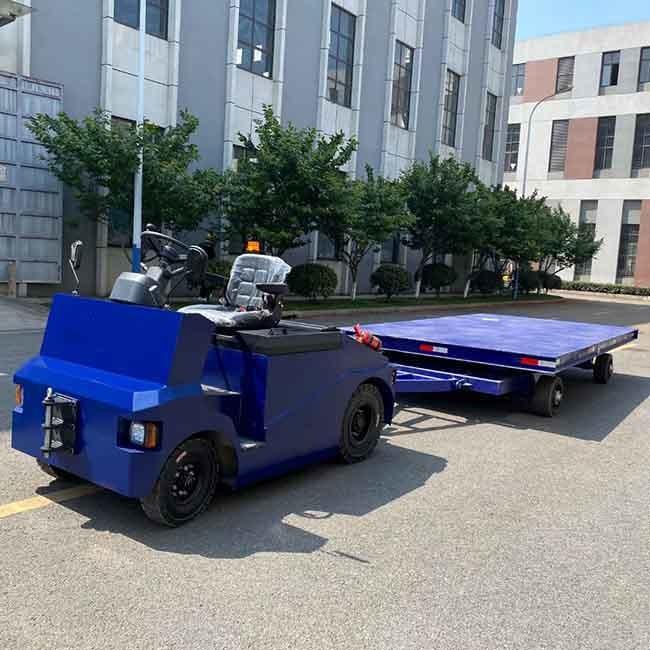

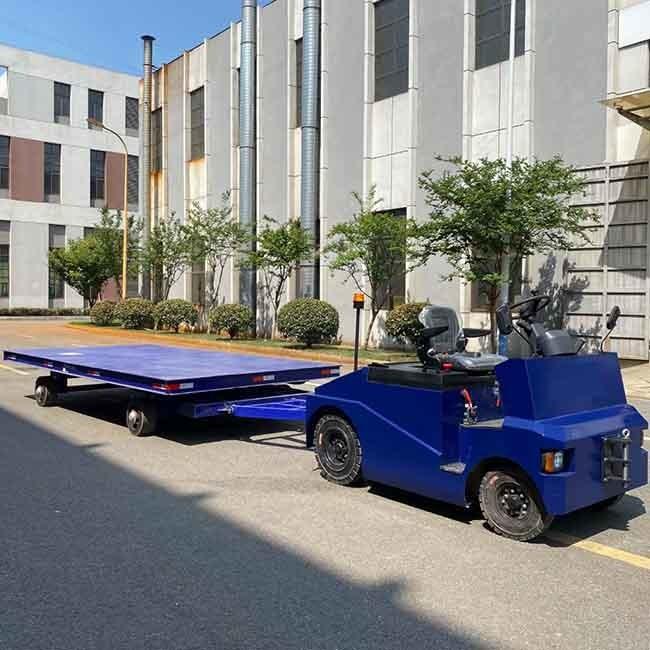

YEAWEY Tow tractor usually used for material traction in airports, stations, workshops and warehouses. It also can used as an important transportation tool for baggage traction, regional logistics and workshop circulation.
The truck is designed as compact structure, good maneuverability, and suitable for narrow-area operation. It's powerful, stable and reliable in operation.
Rubber shock absorption are adopted for both front and rear axles, greatly improving the driving experience and effectively reducing the vehicle vibration on the operator.
Advantage:
- Hydraulic power steering, portable
- Bridge drive unit
- AC drive, brushless, motor maintenance free
- American CURTIS drive controller
- Regenerative braking system
- Safety seat
- Forward and backward fine adjustment
- Simple operation and flexible action
Safety:
- Drive stepless speed regulation
- Controller multiple automatic protection system
- Emergency brake switch travel warning
- Cylinder safety shut-off valve
- Hydraulic brake, hydraulic power
- Travel warning lamp
| Item | Model | QDD120 | |
| 1 | Power type | Electric | |
| 2 | Operation mode | Seated type | |
| 3 | Traction weight | kg | 12000 |
| 4 | Tire type (front/ rear) | Rubber | |
| 5 | Front wheel | 5.00-8 | |
| 6 | Rear wheel | 6.50-10 | |
| 7 | Minimum ground clearance of the whole vehicle | mm | 130 |
| 8 | Overall length | mm | 2384 |
| 9 | Wheelbase | mm | 1532 |
| 10 | Overall width | mm | 1100 |
| 11 | Track width (front/ rear) | mm | 920/910 |
| 12 | Turning radius | mm | 2260 |
| 13 | Travel speed (full load/ no load) | km/h | 10/14 |
| 14 | Gradient (full load/ no load) | % | 8/15 |
| 15 | Drive motor power | kw | 8 |
| 16 | Battery voltage/ capacity | v/ah | 48/400 |
| 17 | Service weight (incl. battery) | kg | 1950 |
| 18 | Steering type | Hydraulic steering | |
| 19 | Service brake type | Mechanical/ hydraulic | |
| 20 | Parking brake type | Mechanical |
