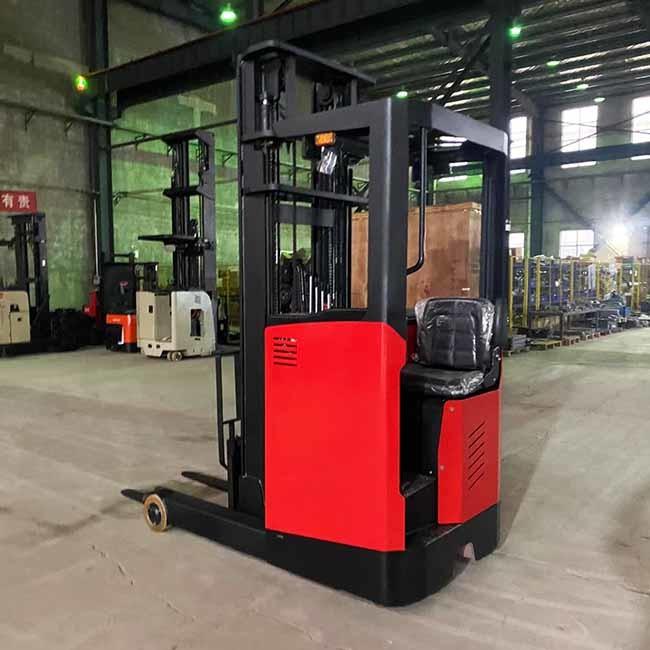

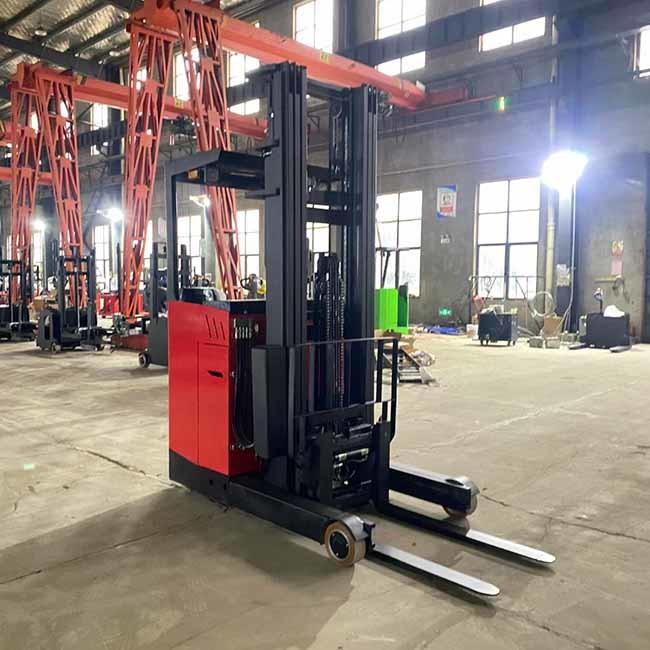

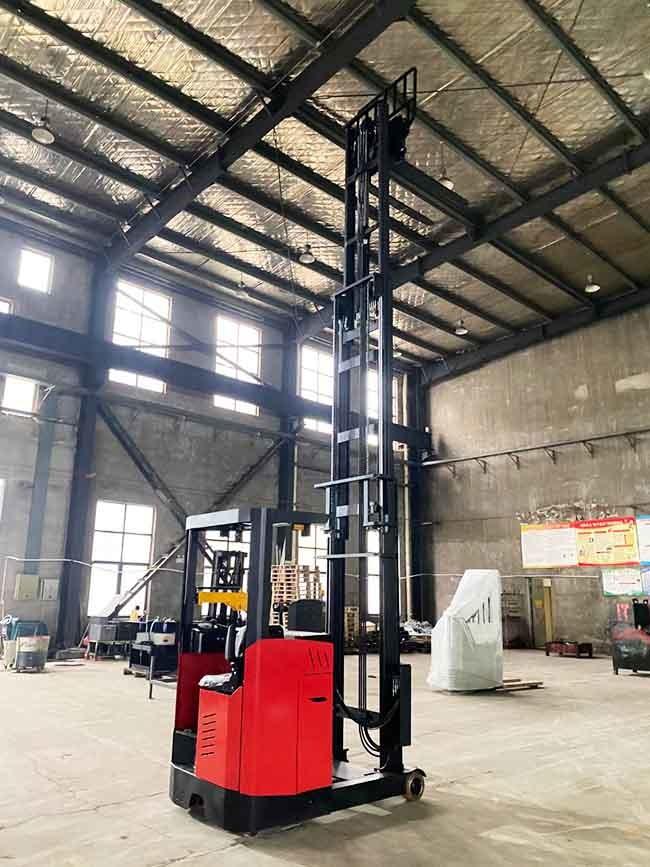

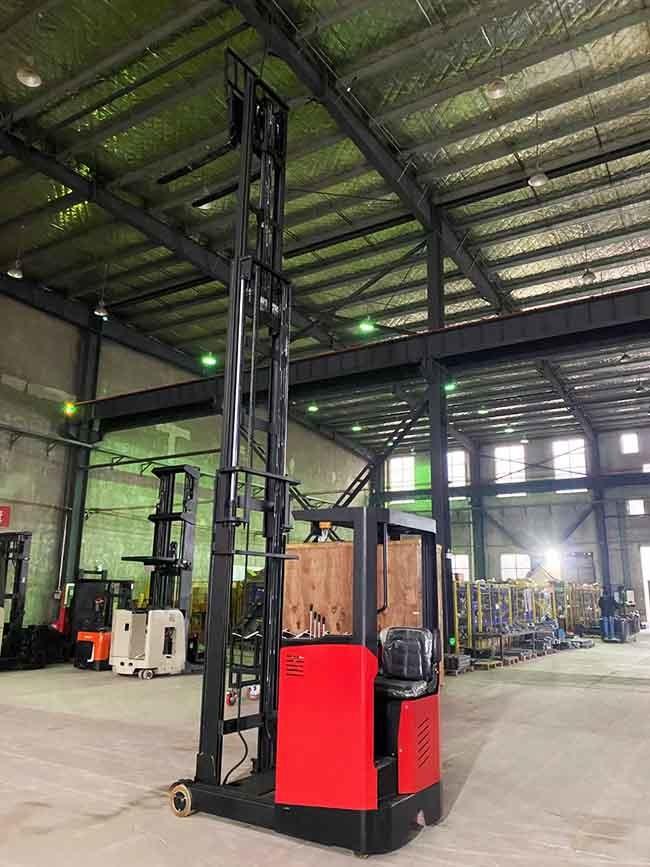

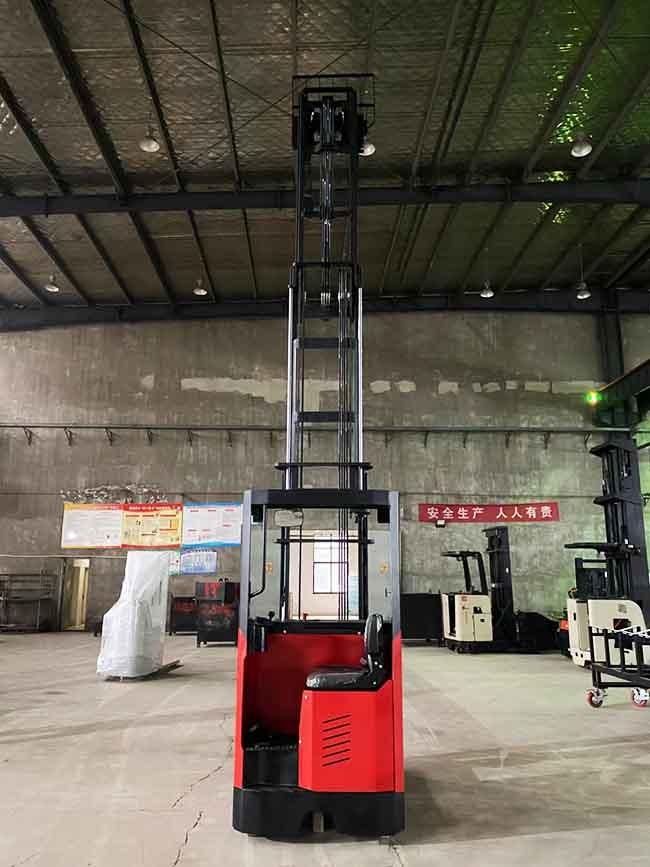

1.5T Electric Reach Truck Forklift CQD15B Stand Type Triplex 6m Mast
1500kg 24V CQD15B 1.5T Electric Reach stacker stand type triplex 6m mast
Main information:

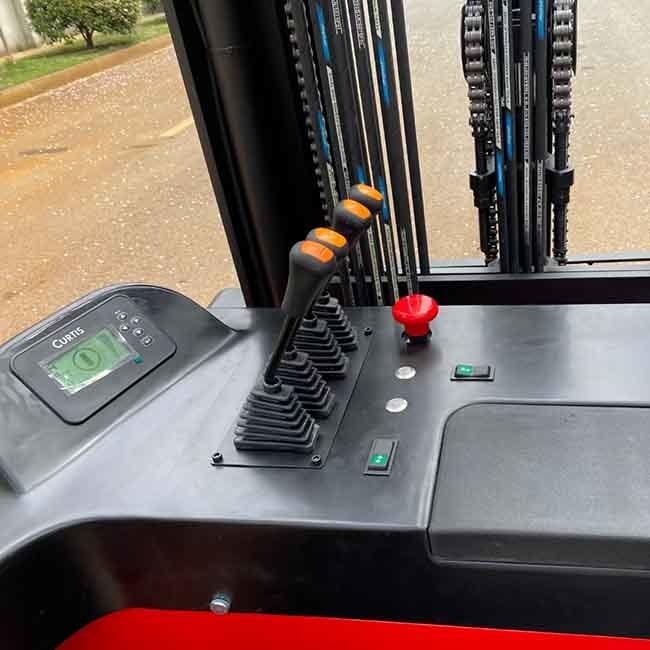

Curtis AC controller
AC lift and drive motor
Lift height 3m to 9m
Lead acid battery 24V/280AH
Stand type
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Strong chassis
The chassis structure is strong, the distribution of the center of mass is reasonable, and the stability of the whole vehicle is excellent.
Height limit function
When the fork is lifted to the maximum height, the lifting motor will automatically power off to ensure the safety of lifting.
Motor current detection control
Prevent the motor from being damaged due to excessive motor current.
| Item | Model | CQD15D-45S | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Stead type | |
| 3 | Load capacity | Q(kg) | 1500 |
| 4 | Load center | C(mm) | 500 |
| 5 | Front overhang | X(mm) | 145 |
| 6 | Wheel base | Y(mm) | 1399 |
| 7 | Self weight with battery | kg | 2200 |
| 8 | Tire type | Pu solid tire | |
| 9 | Front tire size | ∅×w(mm) | 254*104 |
| 10 | Rear tire size | ∅×w(mm) | 230*75 |
| 11 | Balance wheel size | ∅×w(mm) | 150*50 |
| 12 | Track width, front wheels | b10(mm) | 978 |
| 13 | Track width, Rear wheels | b11(mm) | 804 |
| 14 | Height-Mast lowered | h1(mm) | 2120 |
| 15 | Lift Height | h3(mm) | 4500 |
| 16 | The maximum height of the gantry during homework | h4(mm) | 5485 |
| 17 | The height of overhead guards | h14(mm) | 2308 |
| 18 | The height when fork lowered | h13(mm) | 35 |
| 19 | Tilt-Forward/Back | α/β(°) | 3/5 |
| 20 | Overall length | l1(mm) | 2272 |
| 21 | Length of the body | l2(mm) | 1703 |
| 22 | Width of the body | b1(mm) | 1098 |
| 23 | Fork Dimensions | s/e/l(mm) | 35/100/1070 |
| 24 | Fork Spread | b5(mm) | 210-705 |
| 25 | Reach distance | L(mm) | 500 |
| 26 | Min ground clearance | m2(mm) | 77 |
| 27 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 2771 |
| 28 | Min. Turning radius | Wa(mm) | 1600 |
| 29 | Max travel speed unladen/Load | km/h | 5/4 |
| 30 | Max. lifting speed unladen/Load | m/s | 0.135/0.110 |
| 31 | Max. lowing speed unladen/Load | m/s | 0.085/0.132 |
| 32 | Grade Ability unladen/Load | ％ | 8/4 |
| 33 | Drive brake | electromagnetic | |
| 34 | Drive motor | kw | 2.5 |
| 35 | Lift motor | kw | 3 |
| 36 | Battery type | Lead acid | |
| 37 | Battery capacity | V/Ah | 24V280Ah |
| 38 | Charger-intelligent | V/A | 24V/40A |
| 39 | Drive Controll Type | alternating current | |
| 40 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
