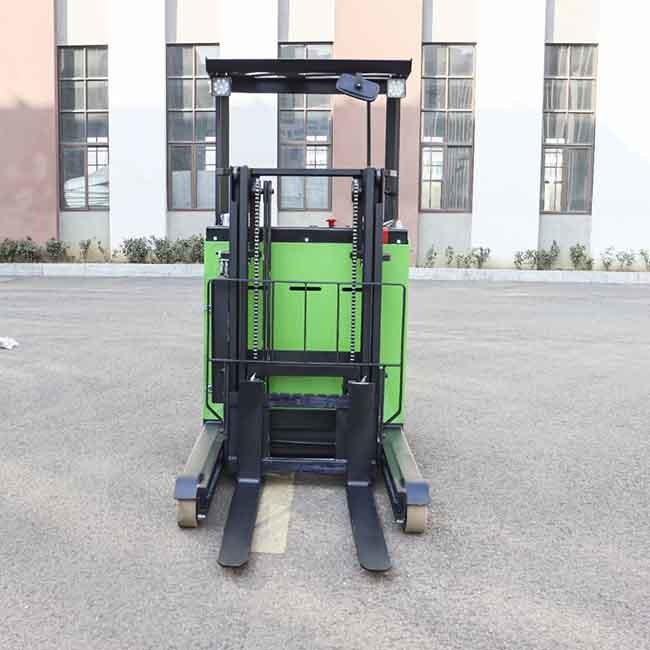

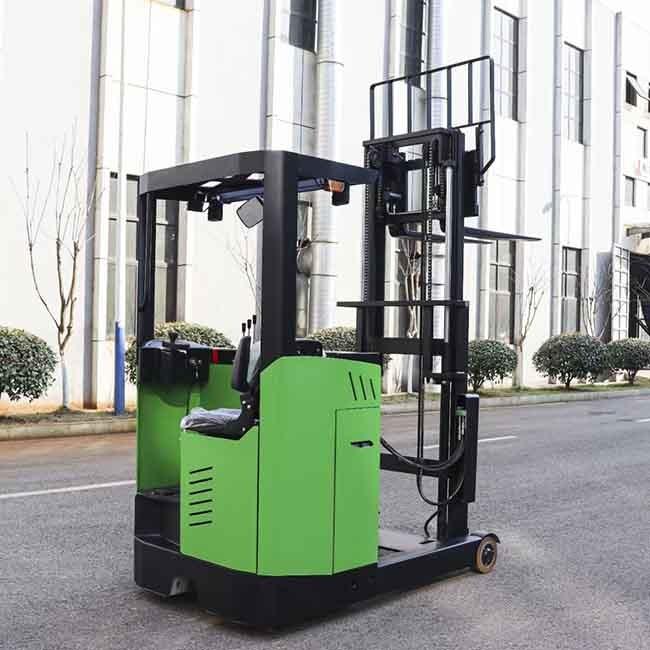

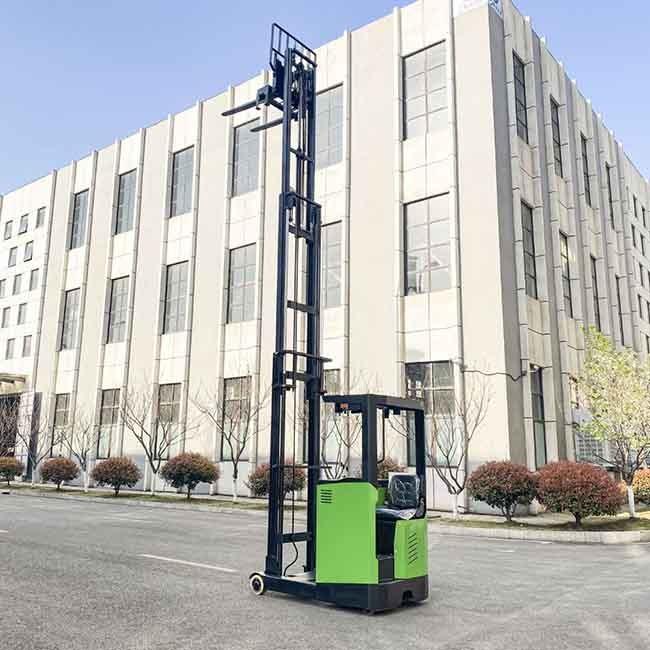

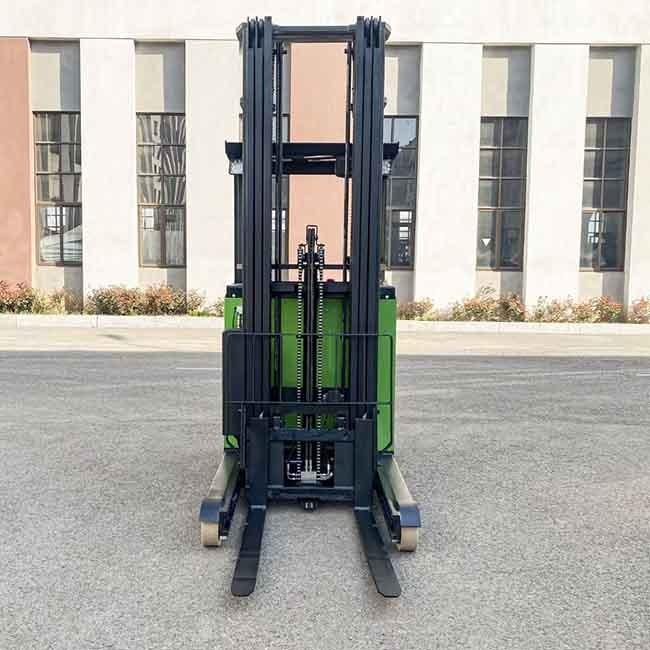

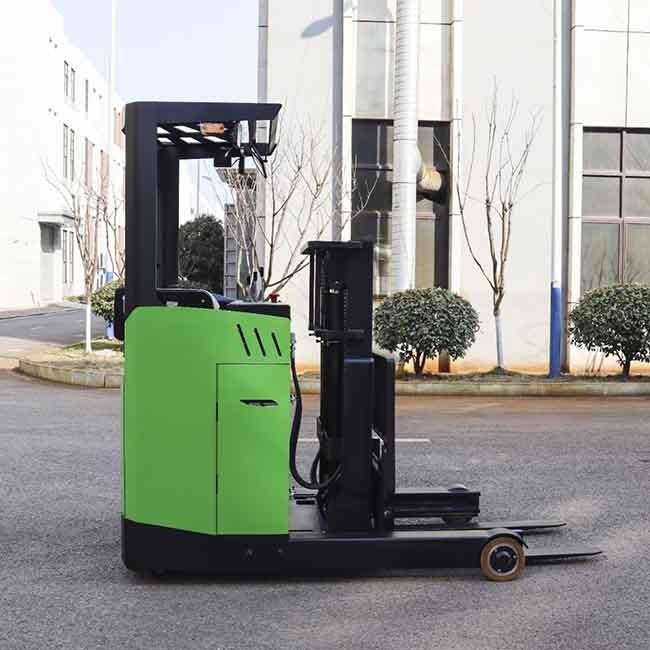

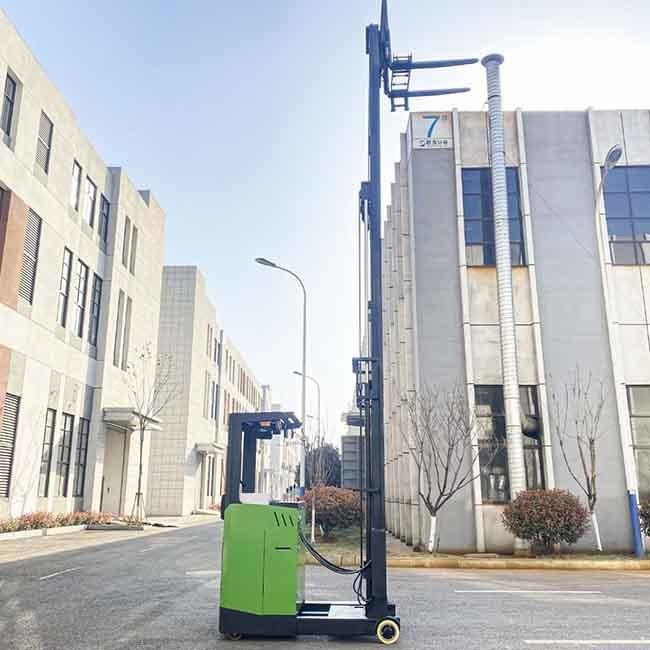

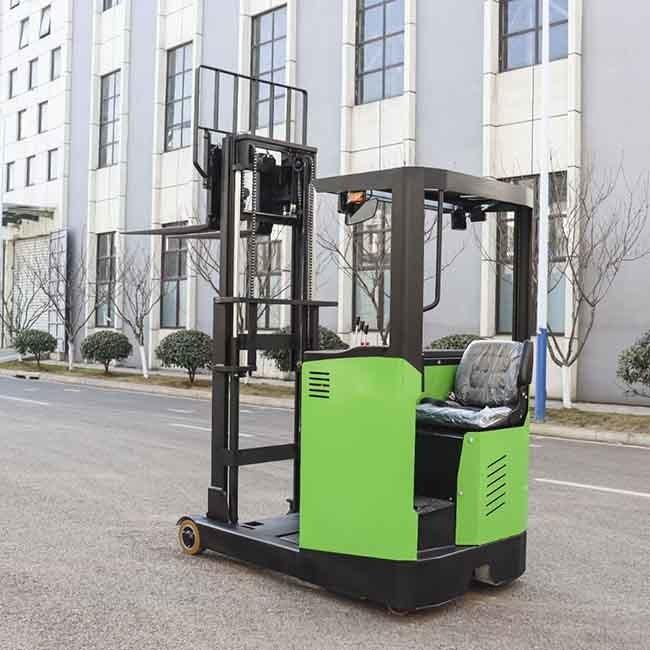

CQDE15 48V 1.5T Electric Reach Truck 1500kg Seat Type Triplex 3m-12m Mast
1500kg CQDE15 48V 1.5T Electric Reach forklift truck seat type triplex 3-12m mast
Main information:
Curtis AC controller
AC lift and drive motor
Lift height 3m to 6m
Lead acid battery 48V/400AH
Seat type
The YEAWEY Lead acid / Lithium battery stand reach truck adopts four columns for cabin to penetrate the frame which is both beautiful and safe.Wide field of vision and driving space along with high elastic shock-absorbing seats provide a unique driving pleasure.
Multi-function LCD instrument
Multi-function LCD instrument can display steering wheel position, battery power, power alarm, fault code running time, driving speed and other information.
Superior pump and controller
Low-noise gear hydraulic pump reduces the lifting noise of the whole vehicle.Travel motor controllers, hydraulic pump motor controllers and steering motor controllers of international well-known brands are self-protected, maintenance free and have superior performance.
Suspension seat(optional)
The highly elastic shock-absorbing seat greatly reduces the transmission of vibration to the driver. the seat can be adjusted in multiple positions to meet the operation needs.
| Item | Model | CQDE15-45S | |
| 1 | Power type | Electric | |
| 2 | Drive mode | Seated | |
| 3 | Load capacity | Q(kg) | 1500 |
| 4 | Load center | C(mm) | 500 |
| 5 | Front overhang | X(mm) | 183 |
| 6 | Wheel base | Y(mm) | 1470 |
| 7 | Reach distance | L(mm) | 505 |
| 8 | Self weight with battery | kg | 3000 |
| 9 | Tire type | Pu solid tire | |
| 10 | Front tire size | ∅×w(mm) | 267*114 |
| 11 | Rear tire size | ∅×w(mm) | 382*142 |
| 12 | Track width, front wheels | b10(mm) | 1180 |
| 13 | Height-Mast Lowered | h1(mm) | 2105 |
| 14 | Free Lift Height | h2(mm) | 1500 |
| 15 | Lift Height | h3(mm) | 4500 |
| 16 | The maximum height of the gantry during homework | h4(mm) | 5465 |
| 17 | The height of overhead guards | h14(mm) | 2180 |
| 18 | The height when fork lowered | h13(mm) | 35 |
| 19 | Tilt-Forward/Back | α/β(°) | 3/5 |
| 20 | Overall length(with forks) | l2(mm) | 2477 |
| 21 | Width of the body | b1(mm) | 1270 |
| 22 | Fork Dimensions | s/e/l(mm) | 35/100/1070 |
| 23 | Fork Spread | b5(mm) | 210-705 |
| 24 | Min ground clearance | m2(mm) | 70 |
| 25 | Aisle Width,pallet 1000*1200mm | Ast(mm) | 2964 |
| 26 | Min. Turning radius | Wa(mm) | 1800 |
| 27 | Max travel speed unladen/Load | km/h | 7.8/6.8 |
| 28 | Max. lifting speed unladen/Load | m/s | 0.330/0.245 |
| 29 | Max. lowing speed unladen/Load | m/s | 0.260/0.325 |
| 30 | Grade Ability unladen/Load | ％ | ≤10 |
| 31 | Drive brake | electromagnetic | |
| 32 | Drive motor | kw | 6.5 |
| 33 | Lift motor | kw | 6.3 |
| 34 | Battery type | Lead acid | |
| 35 | Battery capacity | V/Ah | 48V300Ah |
| 36 | Charger | V/A | 48V/40A |
| 37 | DriveControllingType | alternating current | |
| 38 | The noise level in the driver's ear according to EN12053 | dB(A) | 75 |
