3.0 Ton LPG Forklift 3m Mast Solid Tires Dual Fuel Forklift Use In Warehouse

Price Negotiable
Price: 7000-9500 usd
MOQ: 1 unit
Delivery Time: 5-8 working days
Brand: YEAWEY
Product Description

Solid tires 3m mast 3 TON dual fuel LPG forklift warehouse use IMPCO converter



Main information:
Product name: 3Ton LPG dual fuel forklift with container mast
Engine: Chinese Guangqing or Japanese NISSAN gasoline forklift.
Transmission: Automatic
Mast type: 3 stage mast 4.8m lifting height
Tires: Solid or pneumatic
Fork: 1520mm
Attachments: Side shift

The YEAWEY LPG forklift can equip with both Chinese gasoline engine or Japanese NISSAN engine, with more than 55 improvements of inside and out ergonomic design, our forklift enhanced safety and performance while lowering vibration, operating noise and easy to maintain.



Engine choose

Chinese GQ-4Y diesel engine and Japanese NISSAN GK25 gasoline, both of them equip with IMPCO converter, good quality and long working life.



Fast and stable performance

Being able to quickly raise and lower the mast as well as tilting it forward and backward, the forklift provides the best operational conditions during unloading. When the truck is fully loaded, mast lowering speed is carefully controlled to ensure safety by the down control valve



Perfectly matched hydraulic system

The perfectly matched hydraulic system reacts quickly during operation anca low-noise control valve increases both efficiency and durability.



Multi function switch lever

Multi function switch lever gives easy access lo lights and horn.

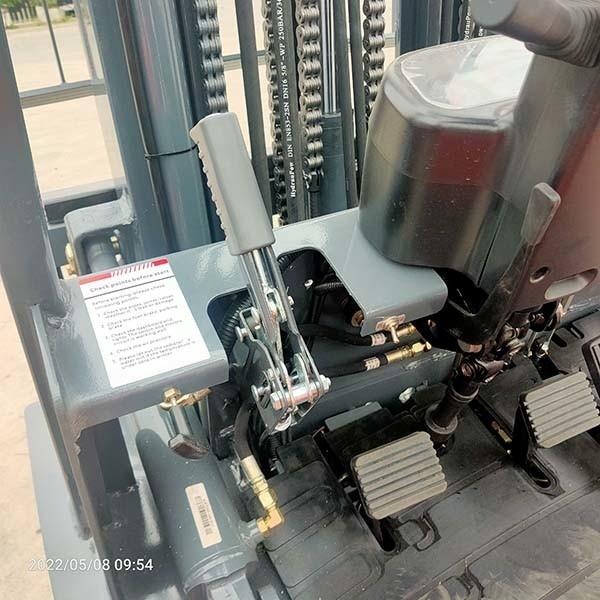

Easy and safe shift lever

An optional single lever on the left side of the steering column gives the operator fast, easy control of direction.



Mast
Widened duplex mast, reinforced frame,broad vision; Dual valves limit the speed,better security. Sideshifter is the standard configuration.



Steering System
Single transverse arranged cylinder of steering axle has dual function, full hydraulic power steering, steering has priority, with load sensing function, for easy operation

.





Specification CPCG30
1 Fuel model   Dual fuel type gasolie and LPG
2 Load capacity kg 3000
3 Load center mm 500
4 Lift height mm 3000
5 Full free lift height mm 100
6 Fork dimension mm 1070×125×45
7 Mast tilting angle Deg. 6/12
8 Min.turning radius mm 2400
9 Groud clearance mm 135
10 Overhead guard height mm 2165
11 Front overhang mm 495
12 Max travel speed km/h 19
13 Max lift speed mm/s 480
14 Max.traction power KN 13.5
15 Max. gradeability % 20
16 Total length with fork mm 3820
17 Total length without fork mm 2750
18 Total width mm 1225
19 Mast extended height mm 4265
20 Mast lowered height mm 2060
21 Tyres Front   28x9-15-12PR
22 Type Rear   6.50-10-10PR
23 Wheelbase mm 1700
24 Tread mm 1000/970
25 Service weight Kg 4350
26 Battery V/Ah 12/80
27 Engine model   GQ-4Y gasoline engine
28 Engine power kw/r.p.m 46
29 Transmission   Mechanical or Automatic
30 Work press Mpa 18.5
