■ German original factory processing technology comes with a cleaning brush, and the sliding table is maintenance-free.
■Original multi-cavity structure,imported guide rail, high precision, high wear resistance,high tensional strength.
■Standard length is 3000mm,with 3200 or 3800mm length.
■45 degree configuration with double-layer sliding table,imported from Taiwan with round bar and double guide rail.

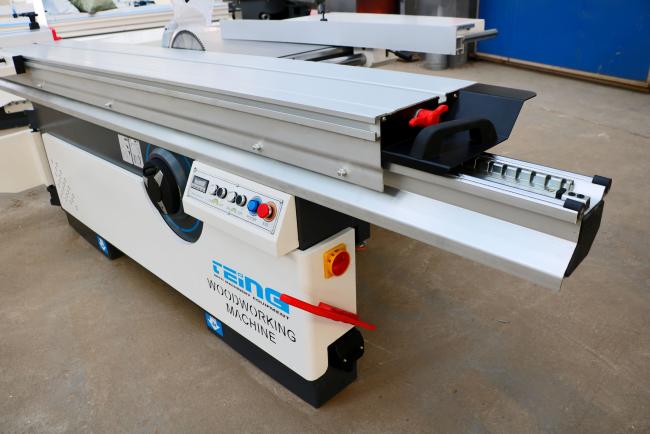

Experience Precision and Efficiency with Sliding Table Precision Panel Saw Machine
Price:
$2,480.00/sets 1-9 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
TEING
Product Description
Product Overview
Technical Data Sheet
Model | WSP2845 | Dimensions sliding table | 2800x375 mm |
MAX. Cutting length | 2700 mm | MAX. Cutting width | 1250 mm |
Saw blade Diameter | 300 mm | Scoring saw blade diameter | 120 mm |
Max. Cutting Thickness | 80mm | Main saw spindle speed | 4500/6000 rpm |
Scoring saw spindle speed | 7000-8000 rpm | Spindle saw diameter | 30 mm |
Scoring spindle saw diameter | 20 mm | Tilling saw blade | 0-45° |
Main motor power | 5.5 KW | Scoring motor | 1.1 KW |
Weight | 700KGS | Voltage | 380/220V or customized |
Main blade up and down | Electric | Overall dimensions | 2800*1100*900 mm |
Details Images

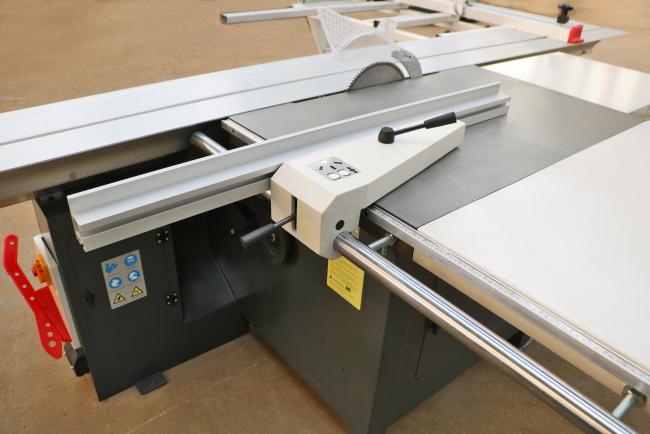

NO.1 Thickened sliding table,precise and smooth

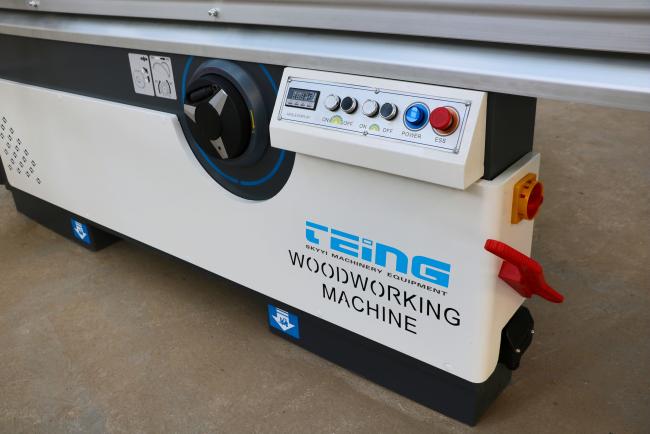

NO.2 Control panel
■ Concise and atmospheric German industrial design,all kinds of operation integration,clear at a glance.
■Electric ad the height and angle of the main saw blade, and the angle adjustment value can be accurately displayed digitally.
■Electric ad the height and angle of the main saw blade, and the angle adjustment value can be accurately displayed digitally.

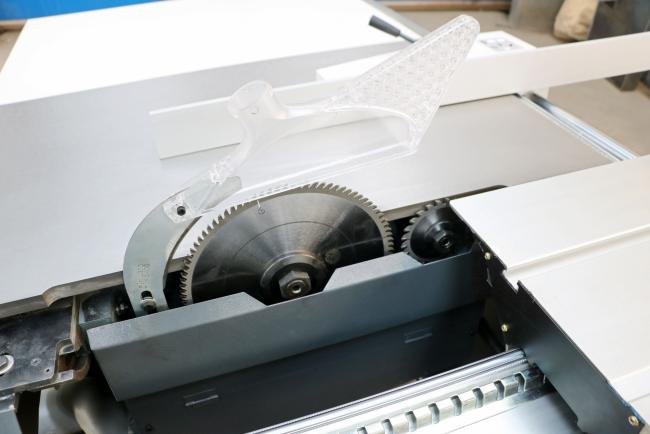

NO.3 Double saw blade
■Equipped with main and auxiliary sawblades, which can be lifting up and down independently,and the small saw blade can be adjusted left and right.
NO.4 Profiling seat
■ Using chrome-plated light bar system, high stability.
■The fixed-length sliding is easy and labor-saving, precise and stable.
■ The control handle is original imported, which is flexible and fast.
■The maximum cutting width is 1100m(1300mm is optional).

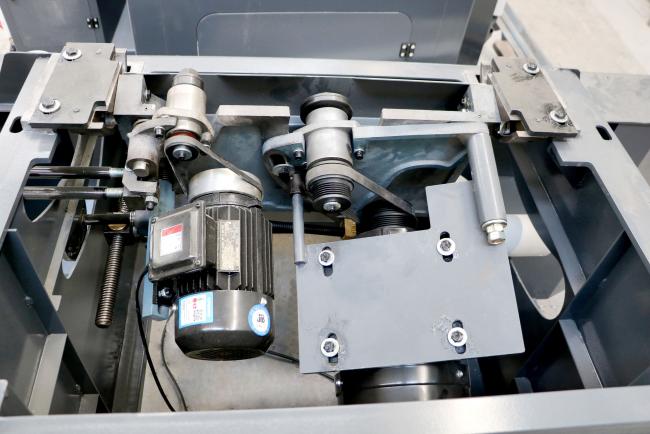

NO.5 Motor
■ The core of quality, Germany's most advanced production technology manufacturing integration.
■Main saw shaft: The overall dynamic balance treatment, ensures the quiet operation of the machine.
■Equipped with high-precision linear guides, maintenance-free bearings, and high-strength slides.
■Main saw shaft: The overall dynamic balance treatment, ensures the quiet operation of the machine.
■Equipped with high-precision linear guides, maintenance-free bearings, and high-strength slides.

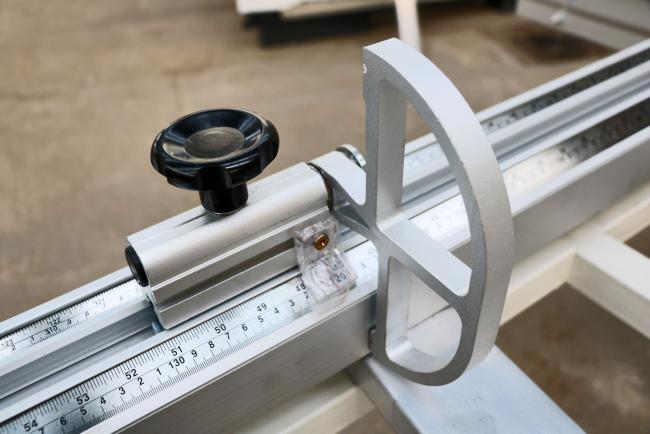

NO.6 Big ruler
■Robust and wear-resistant design,the imported scale is clear and durable
■ The peach-shaped baffle is preciseand stable,and can be easily adjusted.
■Can be extended to 3000mm, worry-free cutting for cutting large plates.
■Can be extended to 3000mm, worry-free cutting for cutting large plates.

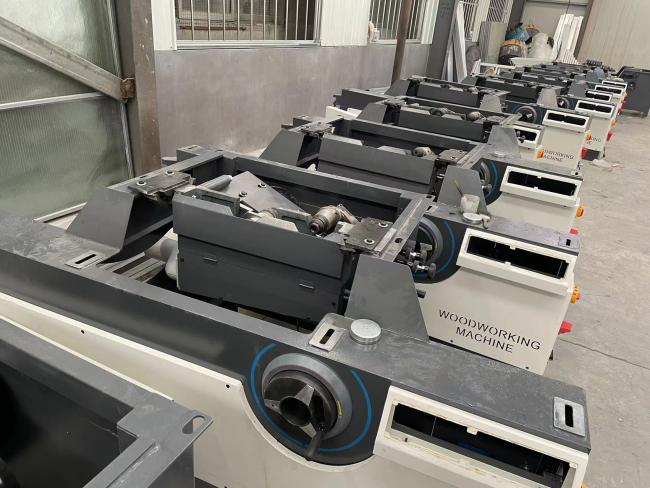

NO.7 Thickened body
■Adopt the most advanced frame design from Germany. The body has high tensional strength,sturdy and durable
■Frame structure design, laser welding, completely enclosed. Ensure machine runs quietly and has a high degree of stability.
■Frame structure design, laser welding, completely enclosed. Ensure machine runs quietly and has a high degree of stability.
