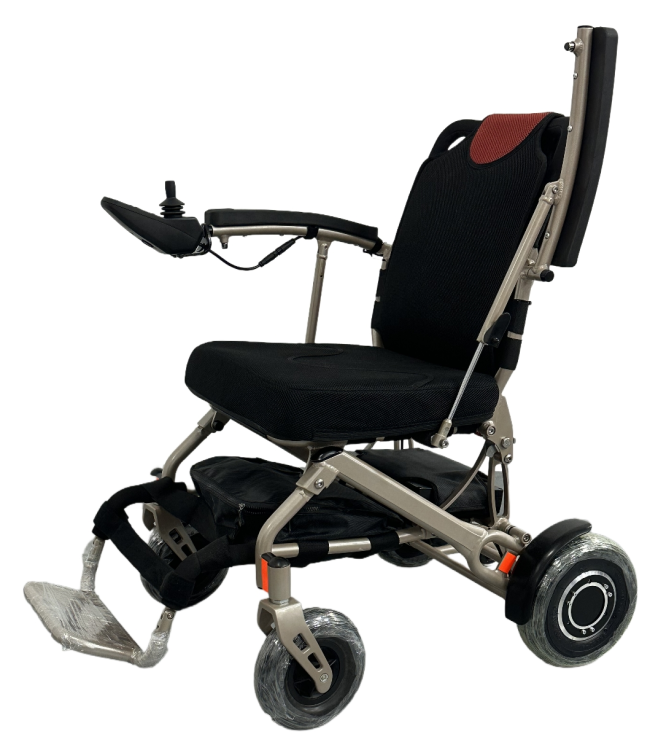

Standard Lightweight Lithium Battery Wheelchair (FAA Approved for Airline Use)
BAW01

Overall Technical Parameters: 97×58×88 cm | Aluminum Alloy Frame | 3-Second Quick Fold, FAA Approved | Folded Dimensions: 58×32×72 cm

Seat: Width 45 cm | Depth 43 cm | Height 43 cm | 8 cm Thickened Cushion | Footrest to Seat: 43 cm & 26 cm Convertible

Backrest: Height 46 cm | Adjustable Angle | Optional Headrest (Height Adjustable)

Armrests: Height 25 cm | Flip-Back for Easy Transfers

Performance: Max Speed ≤6 km/h | Range ≈15 km | Gradeability ≤9°

Weight & Load: Net Weight 19 kg | Max Load ≤120 kg

Tires: Solid (Front 7-inch, Rear 8-inch)

Brake System: Fully Automatic Intelligent Electromagnetic Braking

Battery: Standard Lithium Battery 12Ah

Charger: DC24V/2A, AC115-230V | Charging Time: 6–8 Hours

Motor System: Brushless Maintenance-Free High-Torque Motor

Controller: Intelligent Programmable Brushless Controller | Backrest Recline: 145°
