72V 300Ah LiFePO4 Lithium Battery Pack For Three Wheels Bus Electric Tricycle

Price Negotiable

Price: Inquiry

MOQ: 2 Units

Delivery Time: 2 months

Brand: Ecolite/OEM/ODM

Product Description

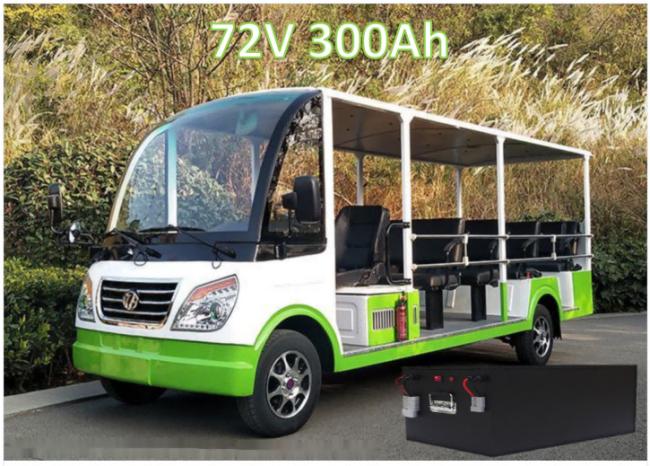

Ecolite LiFePO4 Lithium Battery Pack For Three Wheels EV Sightseeing Vehicle, Bus,Electric Tricycle

Features
We use automotive grade power cell, with larger capacity, powerful, super long life.

Deep waterproof, no fear of wind and rain. Intelligent BMS, eight upgrade protection.

We are not afraid of the potential safety hazard caused by high temperature and the lack of power due to cold.

Super compatibility, wide use of electric vehicles.

Application
Electric tricycle, four wheeled car , golf cart, sightseeing car,Agricultural car, orchard car,Express car,

Patrol car,Sanitation vehicle, Low speed vehicle.

Product Parameter

ECOLFP 72V300Ah (73.6V302Ah)
Electrical Parameters		Mechanical Parameters
Nominal Voltage	73.8V	Dimension(L×W×H)	1100x520x270mm
Rated Capacity	302Ah	Dimension(L×W×H)	43.30x20.47x10.63"
Energy	22227.2Wh	Weight	140kg
Resistance	≤ 80mΩ	Terminal Type	Anderson
Efficiency	0.99	Battery Housing	Matel
Cycle Life	>2000cycles @1C,80% DOD	Housing Protection	IP32
Self Discharge	2% per Month	Cell Type-Chemistry	LiFePO4 Cell
Max. Modules in Series/Parallel	1P/23S	SOC Display(Optional)	4G
Discharge Parameters		Charge Parameters
Continuous Discharge Current	200A	Charge Method	CC-CV
Pulse Discharge Current	450A (<1S)	Charge Voltage	81.65~83.95V
Recommended Volt. Disconnect	57.5V	Recommended Float Voltage	77.62V
BMS Discharge Cut-off Voltage	50.6V	Recommended Charge Current	50A
Reconnect Voltage	62.1V	Maximum Charge Current	200A
Short Circuit Protection	300-800us	BMS Charge Cut-off Voltage	88.55V
Temperature Parameters
Discharge Temperature	-20 to 60 ℃	Storage Temperature	-10 to 35℃
Charge Temperature	0 to 60 ℃	BMS High Temperature Cut-off	65 ℃
