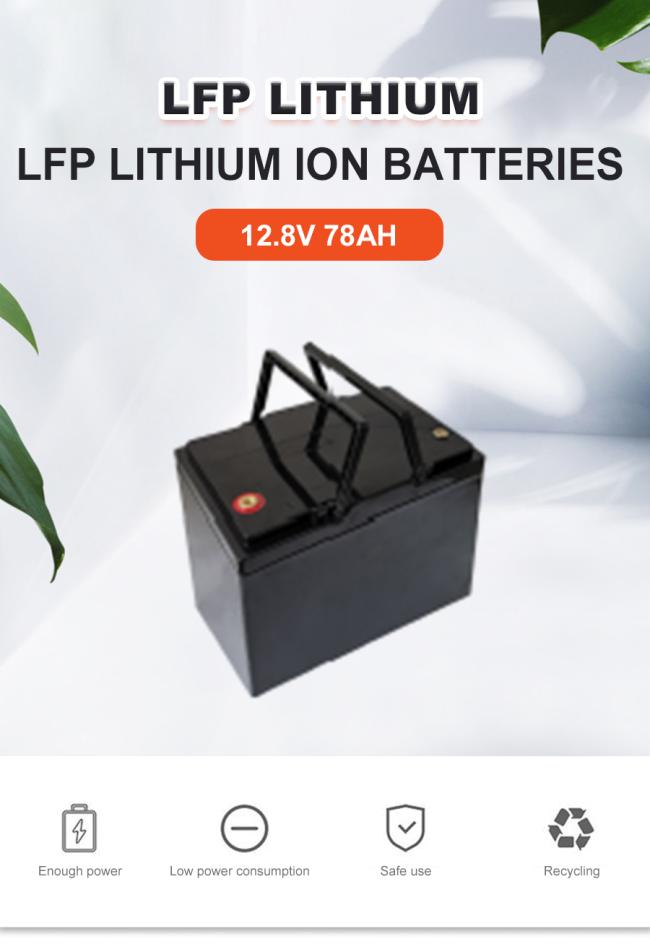

Durable Green Power LFP Lithium Ion Battery 12.8V 78Ah 0.99 Efficiency
Durable Green Power Battery LFP Lithium Ion Batteries 12.8V 78Ah
| Electrical Parameters | Mechanical Parameters | |||||||||||||||||||||||||||
| Nominal Voltage | 12.8V | Dimension(L×W×H) | 260x168x209mm | |||||||||||||||||||||||||
| Rated Capacity | 78Ah | 10.24x6.61x8.23" | ||||||||||||||||||||||||||
| Energy | 998.4Wh | Weight | 8.5kg | |||||||||||||||||||||||||
| Resistance | ≤4.8mΩ | Terminal Type | M8 | |||||||||||||||||||||||||
| Efficiency | 0.99 | Battery Housing | ABS | |||||||||||||||||||||||||
| Cycle Life | >2000cycles @1C,80% DOD | Housing Protection | IP56 | |||||||||||||||||||||||||
| Self Discharge | 2% per Month | Cell Type-Chemistry | LiFePO4 Cell | |||||||||||||||||||||||||
| Max. Modules in Series/Parallel | 4S/1P | SOC Display(Optional) | APP | |||||||||||||||||||||||||
| Discharge Parameters | Charge Parameters | |||||||||||||||||||||||||||
| Continuous Discharge Current | 78A | Charge Method | CC-CV | |||||||||||||||||||||||||
| Pulse Discharge Current | 100A(<3S) | Charge Voltage | 14.4~14.6V | |||||||||||||||||||||||||
| Recommended Volt. Disconnect | 10V | Recommended Float Voltage | 13.8V | |||||||||||||||||||||||||
| BMS Discharge Cut-off Voltage | 9.8V | Recommended Charge Current | 39A | |||||||||||||||||||||||||
| Reconnect Voltage | 11.6V | Maximum Charge Current | 78A | |||||||||||||||||||||||||
| Short Circuit Protection | 200-500us | BMS Charge Cut-off Voltage | 14.8V | |||||||||||||||||||||||||

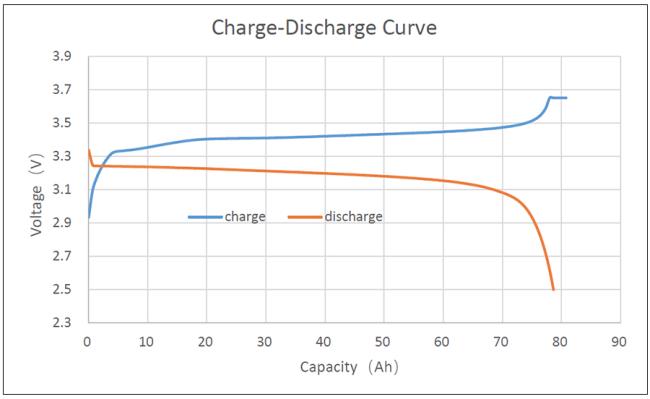

1.Charge-Discharge Curve

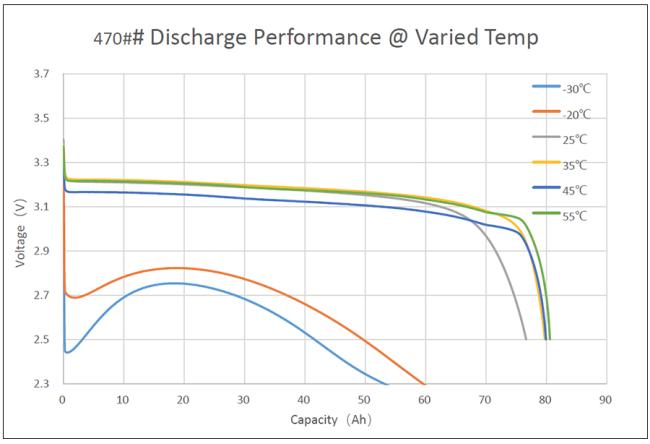

2.Discharge Performance @ Varied Temp.

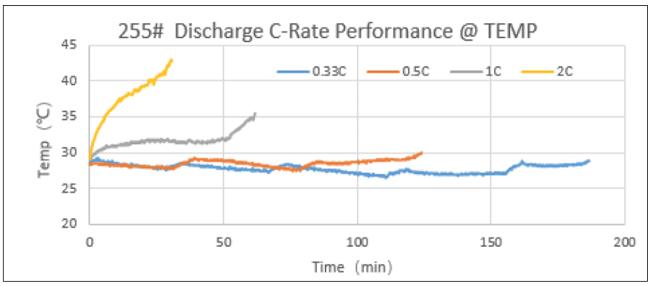

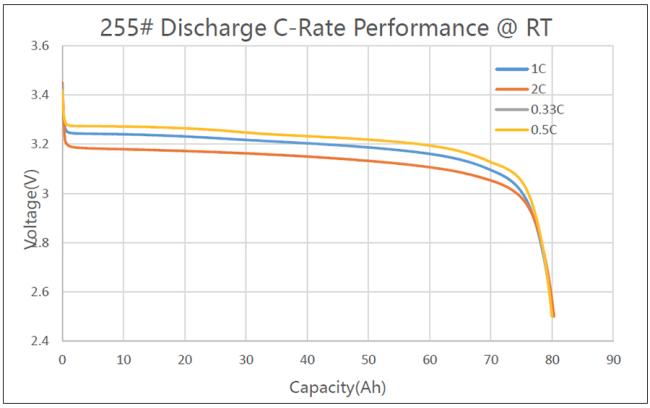

3.Discharge C-Rate Performance
Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many cells you can produce per month?
A: 1.8million
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
