High Density 1280Wh HYLN-LFP 12.8V 100Ah LiFePO4 Battery
Price:
Inquiry
MOQ:
1000pcs
Delivery Time:
5-8 work days
Brand:
Ecolite
Product Description
Ecolite Lithium Iron Phosphate Battery 12.8V100Ah LiFePO4
| Mechanical Parameters | ||||
| Dimension(L×W×H) | 329×173×214mm(13.0×6.8×8.5'') | |||
| Weight | 11.5kg(25.35bs) | |||
| Terminal Type | M8 | |||
| Battery Housing | ABS,LG121 | |||
| Housing Protection | IP56 | |||
| Cell Type-Chemistry | LiFePO4Cell | |||
| SOC Display(Optional) | / | |||
| Discharge Parameters | ||||
| Continuous Discharge Current | 100A | |||
| Pulse Discharge Current | 160A(＜30s) | |||
| Recommended Volt,Disconnect | 10V | |||
| BMS Discharge Cut-off Voltage | 8.8V | |||
| Reconnect Voltage | 10.8V | |||
Short Circuit Protection | 300-800us | |||
| Charge Parameters | ||||
Charge Method | CC-CV | |||
Charge Voltage | 14.4~14.8V | |||
Recommended Float Voltage | 13.8V | |||
Recommended Charge Current | 30A | |||
Maximum Charge Current | 100A | |||
BMS Charge Cut-off Voltage | 15V | |||
| Temperature Parameters | ||||
Discharge Temperature | -20 to 60 ℃ (-4 to 140 ℉ ) | |||
Charge Temperature | 0 to 60 ℃ (32 to 140 ℉ ) | |||
| Storage Temperature | -40 to 70 ℃ (-40 to 158 ℉ ) | |||
BMS High Temperature Cut-off | 78 ℃ (172.4 ℉ ) | |||

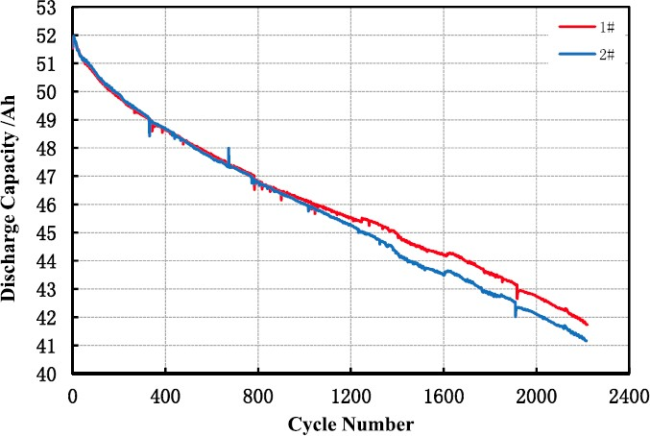

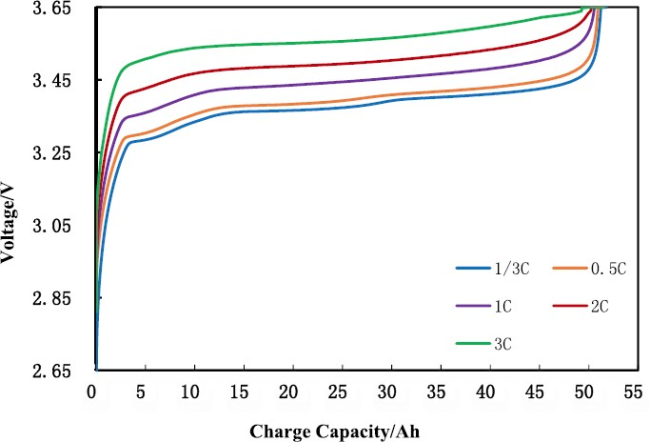

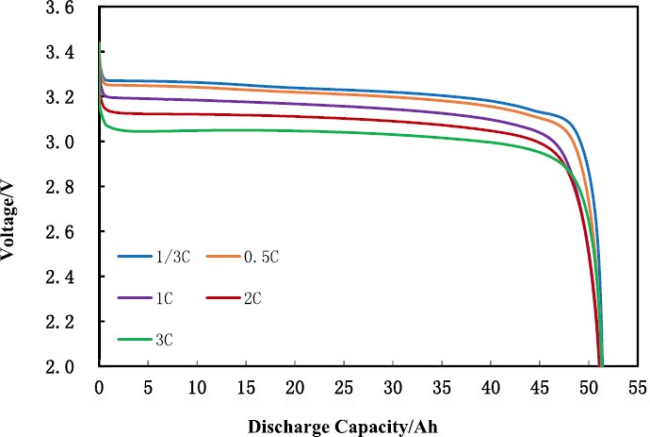

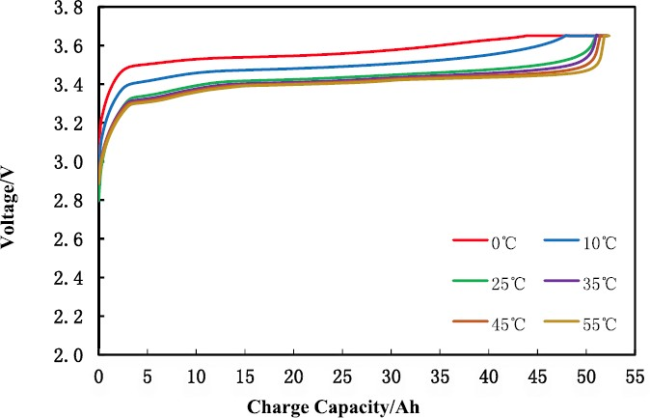

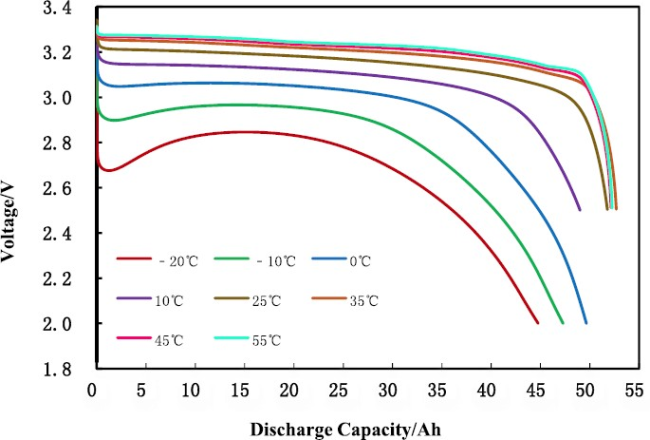

Cell Performance Charateristics

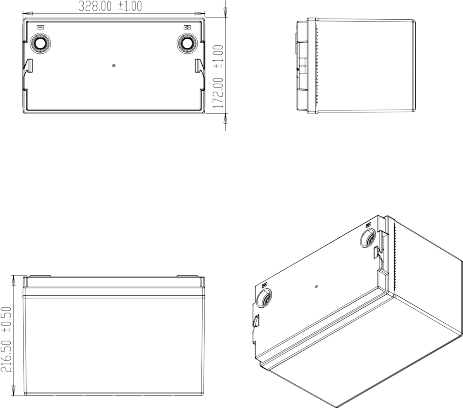

Battery Dimension
NOTE:Do not Mix With Sealed Lead Acid Batteries When Recycling. See Ecolite User's Manual for Proper Operation.
