OEM / ODM LiFePO4 Lithium Battery 25.6V 230Ah Long Cycle Life Integrate BMS
Ecolite Lithium Battery 25.6V230Ah with BMS
FEATURES
Lithium lron Phosphate(LiFePO4)The Safest Lithium Technology.
Integrated Battery Management System(BMS).
Support multiple parallel connections.
PERFORMANCE
Long Cycle Life >4000cycles@80%DOD.
High Density,High Discharge Current,High Temperature Range.
Low Weight,Free Maintenance.
Fast Charging.
Environment Friendly.
Specifications
| Electrical Parameters | |
| Nominal Voltage | 25.6V |
| Rated Capacity | 230Ah |
| Energy | 5888Wh |
| Resistance | ≤30mΩ |
| Efficiency | ≥0.98 |
| Cycle Life | >4000cycles @1C,80% DOD |
| Self Discharge | ＜ 5% per Month |
| Max. Modules in Series/Parallel | 8S/1P |

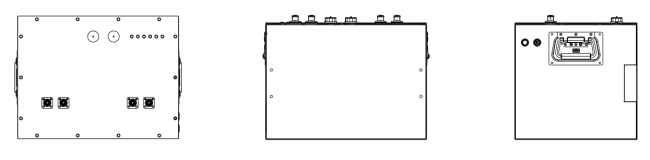

| Mechanical Parameters | |||
| Dimension(WxD×H) | 395x285x300mm | ||
| 15.55x11.22x11.81" | |||
| Weight | 45kg | ||
| Terminal Type | FCC06B0 | ||
| Battery Housing | SPCC | ||
| Housing Protection | IP65 | ||
| Cell Type-Chemistry | LiFePO4 Cell | ||
| Communication | RS485 | ||
| Discharge Parameters | |
| Continuous Discharge Current | 100A |
| Pulse Discharge Current | 150A(＜10S) |
| Recommended Volt. Disconnect | 20V |
| BMS Discharge Cut-off Voltage | 20V |
| Reconnect Voltage | 21.6V |
| Short Circuit Protection | 300-800us |
| Charge Parameters | |||
| Charge Method | CC-CV | ||
| Charge Voltage | 28.4~29.2V | ||
| Recommended Float Voltage | 27~27.6V | ||
| Recommended Charge Current | 50A | ||
| Maximum Charge Current | 100A | ||
| BMS Charge Cut-off Voltage | 29.2V | ||
| Temperature Parameters | |
| Discharge Temperature | -20 ℃ to 60 ℃ |
| Charge Temperature | 0 ℃to 55 ℃℃ |
| Storage Temperature | -20 ℃ to 60 ℃ |
| BMS High Temperature Cut-off | 65 ℃ |
Q :Do you provide free sample ?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: two year
Q:What is your payment term ?
A: T/T,L/C
Q:do you accepte OEM order ?
A: Yes,you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q :How many modules you can produce per month?
A: 5000 pcs
Q :What is the mode of transport?
A: usually by sea
Q:Which certificates do you have
A:We have un38.3,MSDS…etc.
