YWZ Series Electro Hydraulic Drum Brake Industrial Drum Brakes With Thruster

YWZ Series Electro Hydraulic Drum Brake Industrial Drum Brakes With Thruster

Electro Hydraulic Drum Brake Overview:

Electro-hydraulic drum brakes are widely used in deceleration and stop (holding) brakes of various institutions such as lifting and transportation, port loading and unloading, metallurgical equipment, mining machinery and construction machinery.

Industrial Drum Brakes Operating Conditions:

1. Ambient temperature: -20℃-50℃;

2. The relative humidity of the air is not more than 90%;

3. The altitude of the place of use conforms to GB755-2000;

4. There should be no flammable, explosive and corrosive gases in the surrounding working environment, otherwise anti-corrosion products should be used.

Industrial Brakes Features

1. The coefficient of friction is high, the mechanical strength is good, and the thermal decay is small.

2. Does not contain steel wool and high hardness friction agent. Low hardness, not easy to damage the brake disc.

3. No asbestos, green and environmental protection.

4. Little wear and long service life.

5. The braking performance is safe and reliable, and the vulnerable parts are not damaged.

6. No cracking, grinding and conductivity, low braking noise

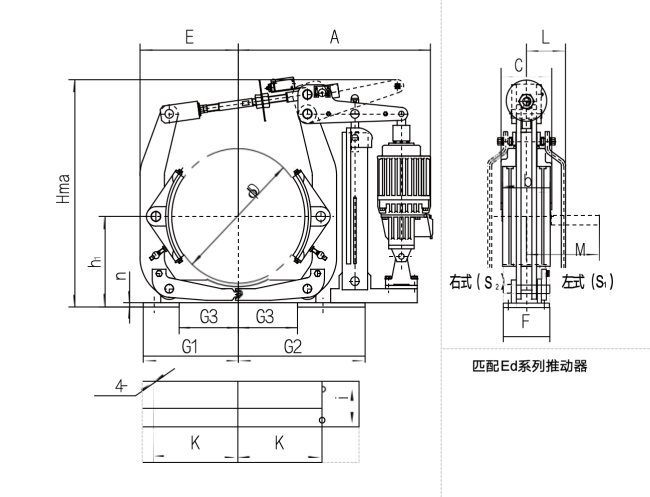

Electro Hydraulic Drum Brake Image (YWZ₁₃ ):

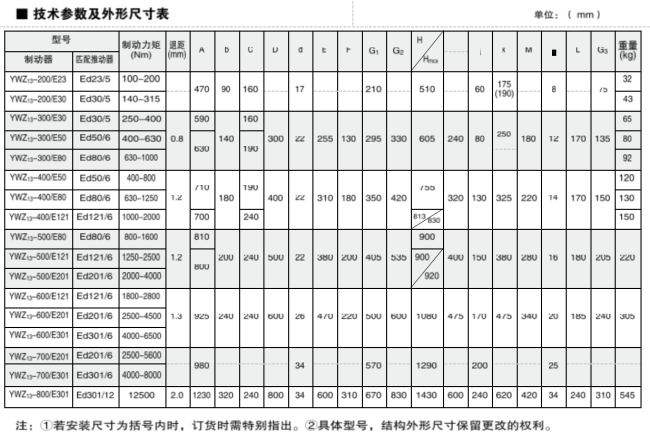

Industrial Drum Brakes Parameter (YWZ₁₃ ):

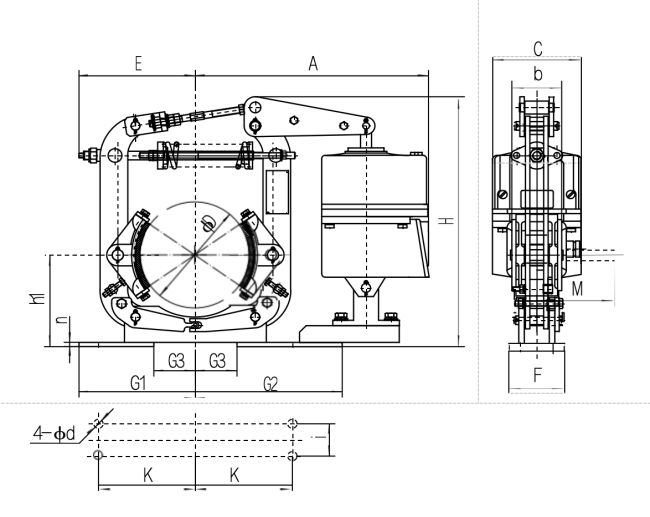

Electro Hydraulic Drum Brake Image (YWZ₈):

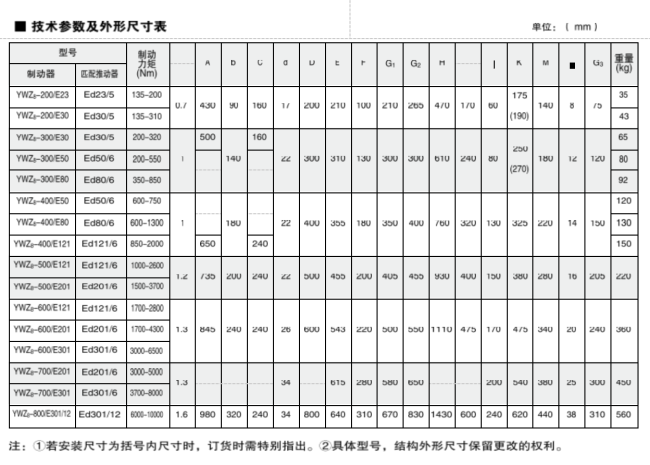

Industrial Drum Brakes Parameter (YWZ₈):
