YWZ Series Industrial Drum Brake Electro Hydraulic Thruster Brake For Crane

YWZ Series Industrial Drum Brake Electro Hydraulic Thruster Brake For Crane

Industrial Drum Brake Overview:

Industrial Brakes are mainly manufactured for lifting and transporting machinery, metallurgical equipment, mining equipment, construction machinery, wind power and nuclear power equipment, ships and marine heavy equipment.

Crane Brakes are of different types according to different job requirements. Mainly by controlling the rotation and inertial motion of the motor, the control equipment can be stopped, accelerated or decelerated to maintain a certain motion state. Due to the working function of the crane, the brake failure is absolutely not allowed in the process of lifting heavy objects. If the brake fails, it will be uncontrollable due to inertia, which will damage the equipment or threaten the health and safety of surrounding people. Therefore, the brake plays a very important role in the safe and stable operation of the crane equipment.

Thruster Drum Brakes Working Condition:
1. During the operation, there shouldn't be flammable, explosive and corrosive gases around. If these gases are inevitable, then anti-corrosion and anti-explosion brakes should be used.
2. Air humidity should not be greater than 90%.
3. Ambient temperature should be between -20℃ and 50℃.
4. Generally three-phase AC power supply: 380 V 50 Hz.

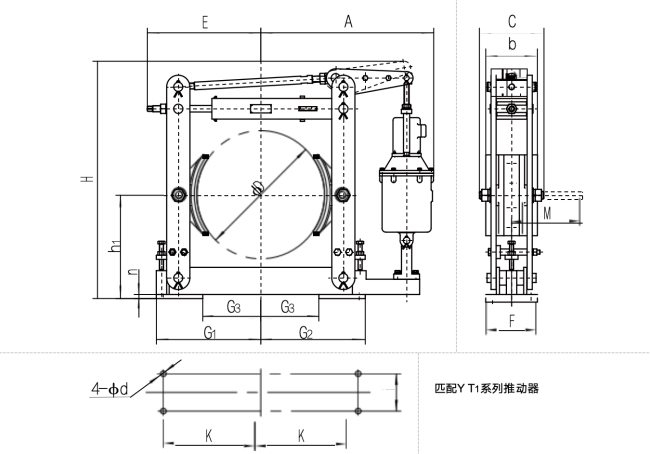

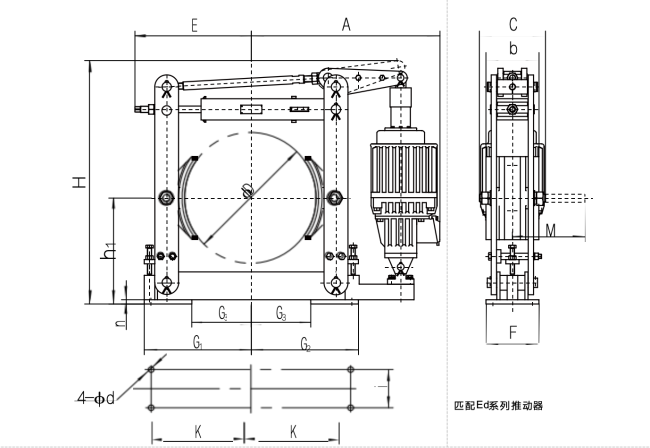

Electro Hydraulic Thruster Brake Image (YWZ₄):

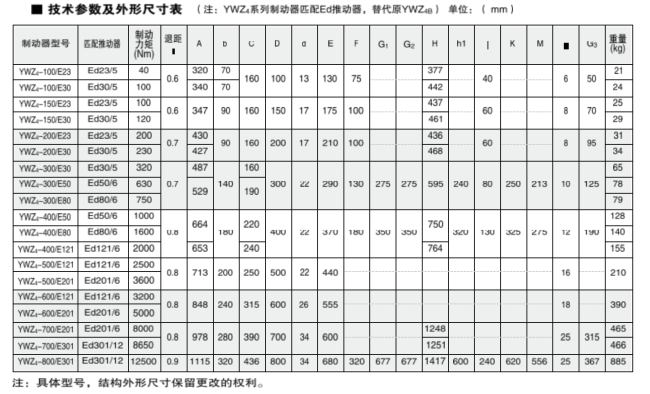

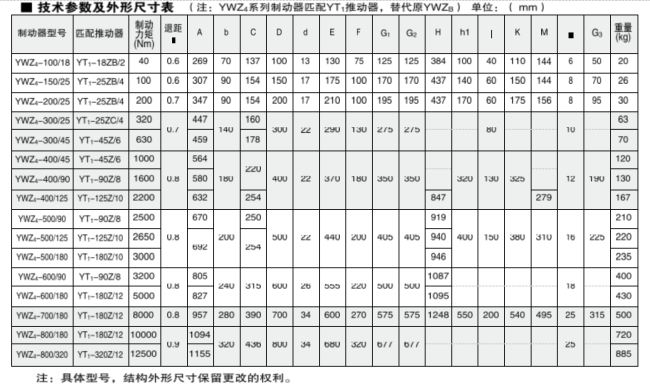

Crane Brakes Parameter (YWZ₄):
