YWZ Series Electro Hydraulic Drum Brake Crane Brakes With Thruster

Electro Hydraulic Drum Brake Standards:

■ The installation dimensions and braking torque parameters of YWZ13, YWZ8 and YWZ4 series electric hydraulic drum brakes comply with JB/ZQ4388-1997 standards, and the technical conditions comply with JB/T6406-2006 standard.
■ The installation dimensions and braking torque parameters of YWZG, YWZ10, and YWZSB series hydraulic drum brakes comply with GB6333-86, and the technical conditions comply with JB/T6406-2006 standard; YWZG and YWZ10 series products can be equipped with protective covers. They are mainly suitable for places with a lot of rain and dust that need protection. Please specify when ordering.
■ The installation dimensions of YW series electric hydraulic drum brakes comply with DIN15435 and JB/T7021-2006 standards, and the technical conditions comply with JB/T6406-2006 standards. (YW-P-A product installation dimensions comply with GB6333-1986)
■ The installation dimensions and braking torque parameters of the JZ series electromagnetic drum brake comply with the JB/ZQ4388-1997 standard, and the technical requirements comply with the JB/T7685-2006 standard.
■ The installation dimensions and braking torque parameters of the ZWZA series electromagnetic drum brake comply with the JB/Q4386-1997 standard, and the technical requirements comply with the JB/T7685-2006 standard.
■ The installation dimensions and braking torque parameters of the ZWZ3 series electromagnetic drum brake comply with the GB6334-86 standard, and the technical requirements comply with the JB/T7685-2006 standard.

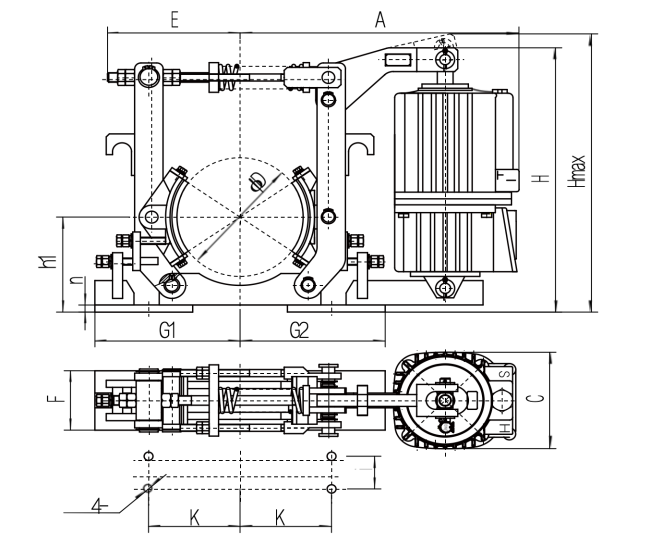

Electro Hydraulic Thruster Brake Image (YWZ10):

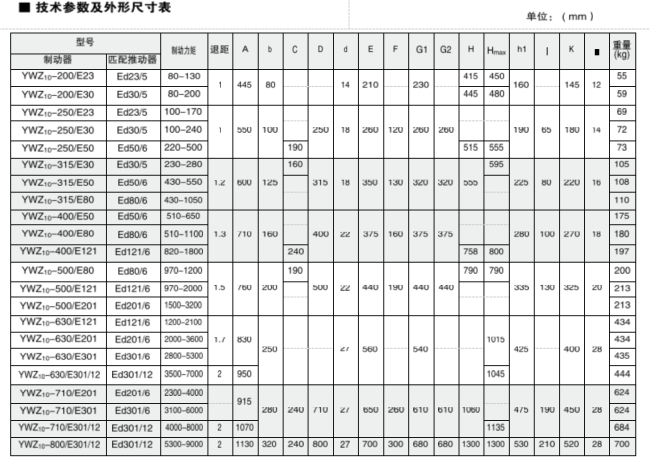

Crane Brakes Parameter (YWZ10):
