Anchor Bolts Introduction
Stainless steel anchor bolts in the 304 and 305 designations provide excellent corrosion resistance and work well in most corrosive environments. The 316 stainless steel provides the greatest corrosion resistance in most environments.
Anchor bolts are often used in various applications, from dry indoor conditions to harsh industrial conditions where additional protection against steel corrosion is needed.
Anchor Bolts Features
Available in 316 grade stainless steel.
Available in zinc-plated steel.
Drill required for installation.
Hex Head Key required for installation.
High performance anchor designed to work with glass channel profile for a perfect flush fitting.
To fix simply tighten using a hex key so the cone is pulled into the expansion sleeve - expanding the anchor to tension it securely into the hole.
Anchor Bolts Specification
| d | 6 | 8 | 10 | 12 | 16 | 20 | 24 | 30 | 36 | 42 | 48 | d |
| L0 | 24 | 28 | 32 | 36 | 57 | 65 | 73 | 85 | 97 | 109 | 121 | L0 |
| D | 10 | 15 | 20 | 30 | 45 | 60 | 70 | D | ||||
| h | 41 | 46 | 65 | 82 | 93 | 127 | 139 | 192 | 244 | 261 | 302 | h |
| Length | L+37 | L+53 | L+72 | L+110 | L+165 | L+217 | L+255 | Length | ||||
| L | Weight of each bolt (kg)≈ | L | ||||||||||
| 80 | 0.021 | 0.762 | 1.27 | 1.183 | 3.15 | 4.93 | 500 | |||||
| 120 | 0.028 | 0.050 | 1.54 | 2.22 | 3.77 | 5.83 | 7.97 | 10.93 | 630 | |||
| 160 | 0.035 | 0.063 | 0.107 | 0.168 | 2.73 | 4.57 | 7.00 | 9.57 | 13.03 | 800 | ||
| 220 | 0.082 | 0.137 | 0.211 | 0.389 | 5.52 | 8.37 | 11.46 | 15.50 | 1000 | |||
| 300 | 0.176 | 0.269 | 0.496 | 0.854 | 1.23 | 13.81 | 18.58 | 1250 | ||||
| 400 | 0.342 | 0.629 | 1.06 | 1.53 | 2.68 | 21.67 | 1500 | |||||

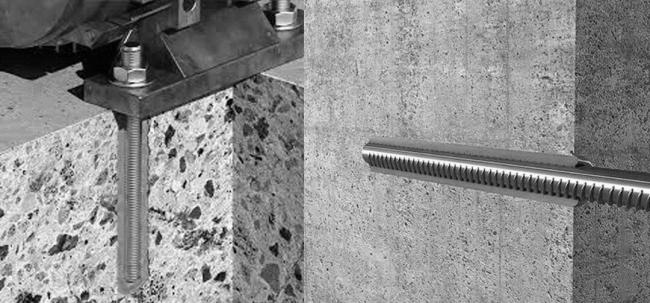

Anchor Bolts Application
