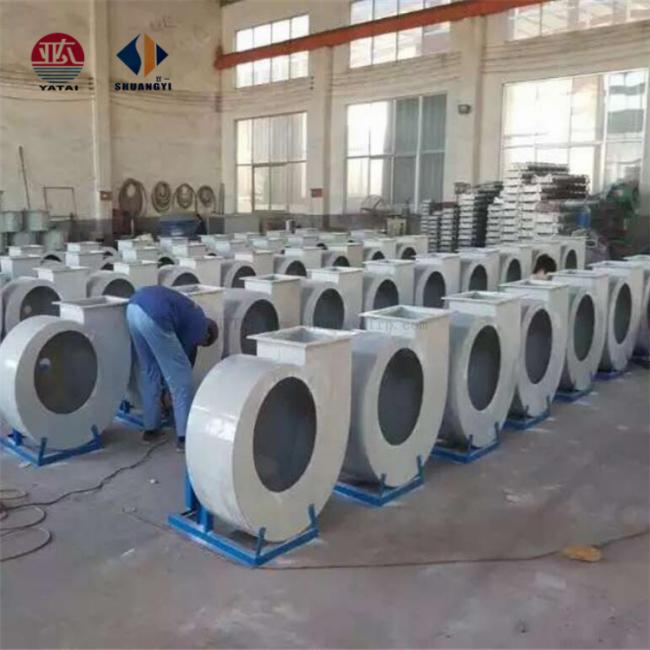

FREE STANDING Mounting Centrifugal Air Turbo Fan/Extractor for Industrial 380V Voltage
High quality industrial centrifugal wind air turbine ventilator
1. Applications
♦ Ventilating
Forced ventilating, Mine ventilating, Materials ventilating and drying.
♦ Cooling and heat dissipation
Forced cooling and heat dissipation, Cement production line grate cooler cooling, Industrial equipments cooling and heat dissipation.
♦ Air purification and industrial waste gas treatment, Air filtration system, Flue gas desulfurization, Flue gas denitrification.
♦ Boiler’s air supply and exhaust (Coal-fired boiler, Biomass boiler, Garbage incinerator, CFB boiler, Stoker feed boiler…).
♦ Energy and power
Thermal power plant, Garbage incineration power plant, Biomass fuel power plant, Industrial waste heat recovery device.
♦ Metal smelting
Blowing air of mineral powder sintering(Sintering machine), Smelting furnace and foundry furnace, Combustion of blast furnace, Blast furnace coal injection, Coal gas boosting and conveying.
♦ Gas and materials delivery
General air delivery, High-temperature air delivery, Combustible gas delivery, Corrosive gas delivery, Gas mixed with impurity delivery.
Delivery of coal powder, Particle material/ Powder material/ Fragment materials/Fiber materials.
2. Characteristics
♦ Can flexibly adjust fan’s volume and pressure in running by air damper. Can also adjust fan’s pressure and volume by changing the fan speed via matching variable frequency motor.
♦ Transmission efficiency higher than belt driving’s, much lower of fan system energy loss.
♦ Flexible connection for motor shaft and transmission shaft, no need to tension or change the belt, low maintenance work.
♦ Bearing housing adopt labyrinth type mechanical seal, unique design of spill prevention of inner, venthole design on top, commissure coated with sealing grease, completely eliminating bearing housing oil leak.
♦ Selecting high efficiency energy saving motor of Chinese leading motor manufacturer( or customer required), reliable quality, low energy consumption.
♦ Customizing design according to customer’s performance requirements, and optimizing by CFD technology, energy consumption lower than same fans.
♦ Adopting high quality carbon steel manufacturing, or stainless steel and other metal materials according to customers’ requirements.
| No. | Rotation Speed (r/min) | Total Pressure (Pa) | Air Capacity (m3/h) | Power (kW) |
| 4A | 2900 | 3253~3597 | 824~1704 | 2.2~3 |
| 4.5A | 2900 | 4112~4603 | 1174~2504 | 4~5.5 |
| 5A | 2900 | 5080~5697 | 1610~3488 | 7.5~11 |
| 5.6A | 2900 | 6400~7182 | 2262~4901 | 11~15 |
| 6.3A | 2900 | 8148~9149 | 3220~6978 | 18.5~30 |
| 7.1A | 2900 | 10426~11717 | 4610~9988 | 37~55 |
| 8D | 1450~2900 | 3231~15034 | 3297~14287 | 7.5~110 |
| 9D | 1450 | 4101~4597 | 4695~10717 | 15~22 |
| 10D | 1450 | 4958~5840 | 6440~15455 | 30~37 |
| 11.2D | 960~1450 | 2705~7364 | 5990~21713 | 15~75 |
| 12.5D | 960~1450 | 3975~9229 | 8327~30186 | 22~110 |
| 14D | 960~1450 | 4249~11668 | 11699~42409 | 37~220 |
| 16D | 960~1450 | 5575~15425 | 17463~63305 | 75~315 |
