Steel Frame Square Vacuum Filter Press Process Treatment Sludge Filtration
Steel Frame Square Filter Press Vacuum Process Treatment Sludge Filteration
Product Description:
Filter plate has a characteristic of stable performance, convenience operation, safe and energy saving. Narrow metal tube is made of seamless steel pipe, fine casting plastic steel filter plate is high temperature resistant, high pressure resistant and durability.

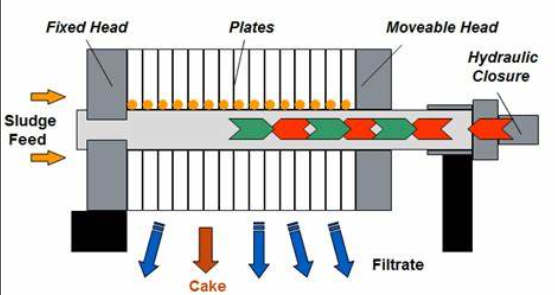

Frame is the basic component of filter press. Thrust plate and compass plate is on the two side of filter press, connected by side beams.
Features:
| Stable operation, low consumption |
| Widely applicated in different area for different cake moisture requirement |
| Integrated PLC, HMI and automatic instrumentation control system, intelligent, hi-efficient, more conveniency |
| Cloth washing more cleanly |
| Reasonable design structure |
Technical Parameters:
| Filter Area (㎡) | Outer Plate Slze (mm) | Inside Frame Size ((mm) | Cake Thickness (mm) | Number of Plate and Frame (Pair) | Chamber Volume (L) |
| 20 | 900x900 | 800×600 | 30 | 17 | 300 |
| 30 | 25 | 450 | |||
| 40 | 33 | 600 | |||
| 50 | 41 | 750 | |||
| 60 | 50 | 900 | |||
| 70 | 58 | 1050 | |||
| 80 | 66 | 1200 | |||
| 100 | 82 | 1500 |
Compassed Unit:
The compassed unit of press filter can be divided in manual compass, mechanical compass, hydraulic compass.
Manual compass is push the compass plate by screw type mechanical jack to impact the filter plate.
Mechanical compass is consisted by motor with advantage overload protector, reducer, gear, thread rod and fixing nut.
Hydraulic compass unit is consisted with hydraulic station, oil cylinder, piston and rod, and connecting plate between piston rod and compass plate.
Support and Services:
| Customized design |
| Equipment supply |
| Installation and commissioning |
| Operator training and process optimization |
| Routine maintenance and troubleshooting |
| Spare Parts and consumables |
Packing and Shipping:
UNIVEE has rich experiences of products packing, loading and delivery for mutli-transporation.
Type of Packing:
| Packed in Crate / Wooden Case / Tin Lined Wooden Case / Plywood Case. |
| Packed with fumigation package |
| Packed in plastic lorap, double bister and jute rope |
FAQ:
Q: What is the brand name of this press filter?
A: The brand name of this press filter is UNIVEE.
Q: What is the model number of this press filter?
A: The model number of this press filter is U-PF.
Q: Where is this press filter manufactured?
A: This press filter is manufactured in China.
Q: What is the capacity of this press filter?
A: The capacity of this press filter varies depending on the model and specifications. Please refer to the product manual or contact our customer service for more information.
Q: What is the warranty for this press filter?
A: Please refer to our warranty policy for more information on the warranty for this press filter.
