Ruichi EC71L Refrigerated 50.38 KWh Battery 270km Range Cargo Truck
Ruichi EC71L Freezer Cargo Truck
Specifiction
| Models | EC71L |
| Refrigerated Truck | |
| Configuration | Long battery life version |
|
Basic parameters
|
|
| L*W*H(MM) | 5655×1805/1840×2475 |
| Refrigeration temperature (℃) | -20~12 |
|
Body
|
|
| Cargo Size(MM) | 3240×1625×1440 |
| Curb weight(kg) | 1930 |
| Rated load weight (kg) | 1240 |
| Number of Doors | 2 |
| Number of Seats | 2 |
| Rated load mass (kg) | 1240 |
| Van cargo volume (m³) | 7.6 |
|
Engine
|
|
| Motor type | Permanent magnet synchronous motor |
| Maximum power (kW) | 70 |
| Maximum torque (N.m) | 230 |
| Battery Type | Lithium Iron Phosphate |
| Power battery capacity (kWh) | 50.38 |
| Operating mileage (CLTC) | 270 |
|
Chassis steering
|
|
| Drive mode | Rear-mounted rear-wheel drive |
| Front suspension type | Longitudinal leaf spring non-independent suspension |
| Rear suspension type | Longitudinal leaf spring non-independent suspension |
| Assist type | Electronic Assist System (EPS) |
| Body structure | Load-bearing body |
|
Wheel braking
|
|
| Front brake type | Disc brakes |
| Rear brake type | Drum brakes |
| Type of parking brake | Mechanical |
| Front tire specifications | 195/70R15LT 12PR |
| Rear tire specifications | 195/70R15LT 12PR |
|
Active/passive safety gear
|
|
| Passive pedestrian protection | safety belt |
| Seat belt is not fastened | ● |
| ABS anti-lock braking | ● |
| Braking force distribution (EBD/CBC, etc.) | ● |
| Reversing radar | ● |
|
External/anti-theft configuration
|
|
| Central locking in the car | ● |
| Front/rear power windows | Front |
| Remote key fob | ● |
|
Multimedia configuration
|
|
| Radio (with MP3) | ● |
| Large color screen in the central control | 〇 |
| Reversing video | 〇 |
| Number of speakers | 2 |
|
Lighting configuration
|
|
| Headlights | halogen |
| The headlights are height-adjustable | ● |
|
Seat configuration
|
|
| Seat material | fabric |
| The main driver's seat is adjusted | Front and rear adjustment + backrest adjustment |
| Passenger seat adjustment form | Backrest adjustment |
|
Air conditioning
|
|
| Air conditioner temperature control mode | ●Manual |
Features
The cockpit of the 2024 Ruichi EC71L refrigerated truck adopts a two-door and two-seat layout, providing 15-inch rims, seat front and rear/backrest adjustment, manual air conditioning, electric windows, parking radar, ABS anti-lock, brake force distribution, etc., and optional central control color large screen and reversing image.
In terms of size, the length, width and height of the van model are 5625*1805/1840*2495 mm, and the wheelbase of the model is 3360 mm.
The 2024 Ruichi EC71L refrigerated truck adopts a rear-mounted rear-wheel drive form, and all models are equipped with a drive motor with a maximum power of 70 kilowatts and a peak torque of 230 Nm. In terms of suspension, the car is equipped with a front McPherson independent suspension and a longitudinal leaf spring non-independent rear suspension.
The 2024 Ruichi EC71L refrigerated truck matches a 50.38 kWh lithium iron phosphate battery pack, corresponding to a CLTC range of 270km.

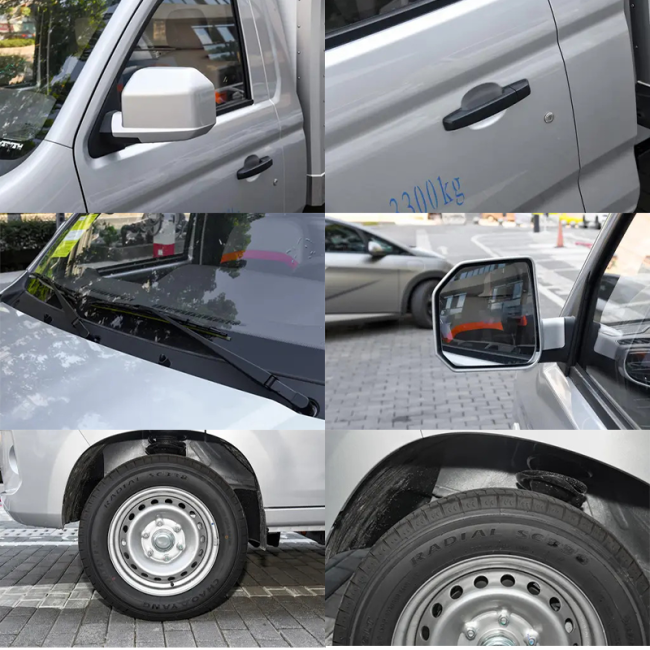

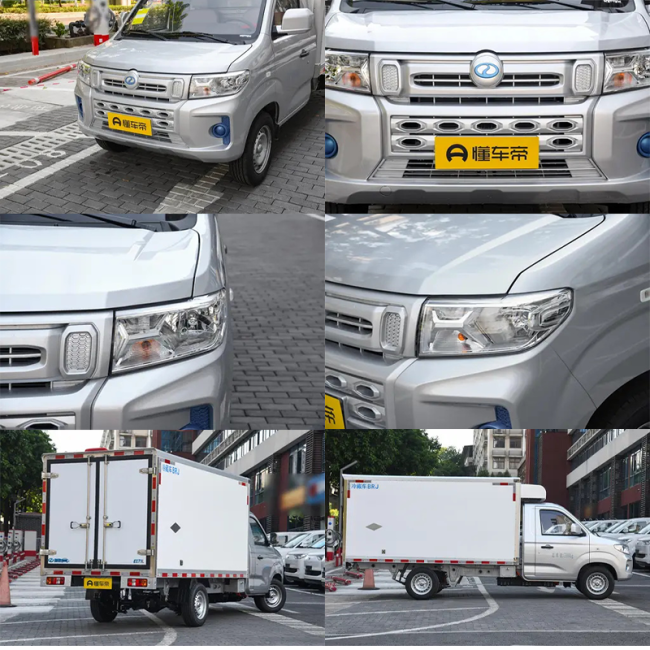

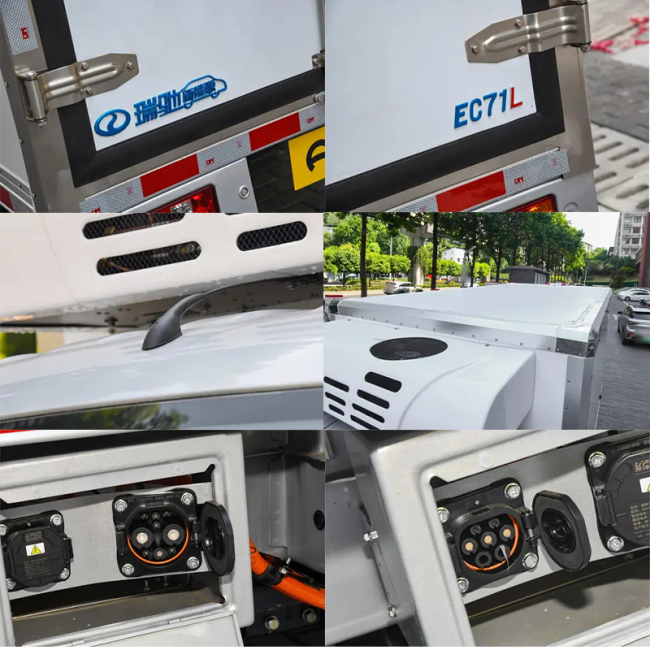

Pictures
