1T-5T Load Capacity Diesel Fork Lift 3000-6000mm Lift Height for Performance
SNSC forklift is used to move the goods on a pallet and lift them onto somewhere higher. Meanwhile,
with some proper tools, the forklift could move and stack the goods which not on a pallet or no need of a pallet.
SNSC forklift products have been widely used in papermaking, automobile, tobacco, warehouse, port, logistics, stone and other industries.

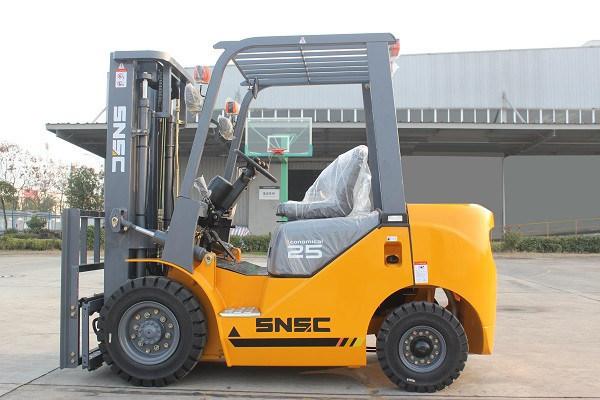

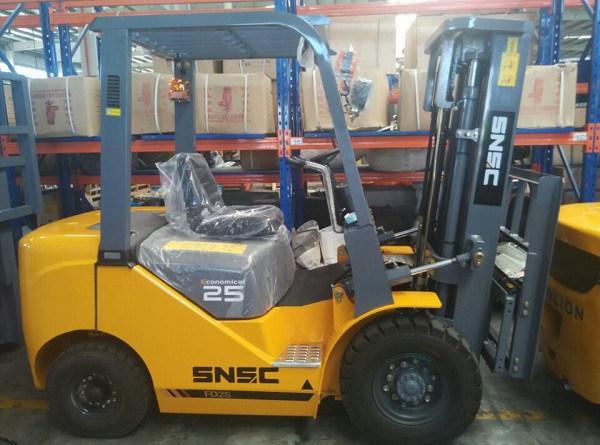

2.5 ton diesel powered forklift truck with 3m mast
Main Features for SNSC FD25 2.5tons diesel forklift truck
1) Our 2.5tons diesel forklift truck equip with powerful Chinese XINCHAI 490/ original JAPAN ISUZU/MITSUBISHI/ Japan NISSAN K25 engine;
2)with auto electric hydraulic transmission by finger with TCM technology, just use your finger that can achieve the forklift's forward and backward;
3)with JAPANESE hydraulic system, like JAPAN SHIMADZU brand hydraulic pump and muti-way control valves, which can guarantee our snsc 3t forklift's best performance;
4)SNSC diesle 2.5t forklift installed famouse USA EATON brand steering gear, which makes our snsc forklift have longer working life;
5) with a tool box and free spare parts;
6)with CE, ISO, GHOST certificates, quality is guaranteed;
7) SNSC forklift diesel truck can install different attachments to help your work, like paper roll clamp, side shifter,
full free container mast, bale clamp, button clamp, block clamp, cabin, etc.
Specifications of 2500kg diesel motor forklift truck
This is our standard 2.5ton diesel forklift techincal specifications. We also can customized the fork lifter according to our customer's demands and working conditions.
| FD25 FORKLIFT SPECIFICATIONS | ||||||||
| No. | Specifications | Unit | FD25 | |||||
| 1 | 1 | Characteristics | Power | diesel | ||||
| 2 | 2 | Rated Capacity | kg | 2500 | ||||
| 3 | 3 | Center of load | mm | 500 | ||||
| 4 | 4 | Lifting height | mm | 3000 | ||||
| 5 | 5 | Free lifting height | mm | 135 | ||||
| 6 | 6 | Forks L×W×H | mm | 1070x122x40 | ||||
| 7 | 7 | Tilt Forward/Backward | . | 6/12 | ||||
| 8 | 8 | Min.turning radius | mm | 2240 | ||||
| 9 | 9 | Min.ground clearance(Mast) | mm | 110 | ||||
| 10 | 10 | Overhead guard height | mm | 2120 | ||||
| 11 | 11 | Height from seat to overhead guard | mm | 943 | ||||
| 12 | 12 | Front overhang | mm | 473 | ||||
| 13 | 13 | Perf | Max.traveling speed(loaded) | km/h | 19 | |||
| 14 | 14 | Max.lifting speed(loaded/empty) | mm/s | 470/510 | ||||
| 15 | 15 | Drawbar pull/Gradeability | kN/% | 17/20 | ||||
| 16 | 16 | Dimensions | Overall length (without fork) | mm | 2570 | |||
| 17 | 17 | Overall width | mm | 1175 | ||||
| 18 | 18 | Mast lowered height | mm | 1990 | ||||
| 19 | 19 | Mast extended height | mm | 4000 | ||||
| 20 | 20 | Chassis | Tire | Front | 7.00-12-12PR | |||
| 21 | 21 | Rear | 6.00-9-10PR | |||||
| 22 | 22 | Wheelbase | mm | 1600 | ||||
| 23 | 23 | Tread width | Front/Rear | mm | 970/970 | |||
| 24 | 24 | Curb weight | None-load | kg | 3750 | |||
| 25 | 25 | Powertrain | Battery | Voltage/Capacity | V/Ah | 12/90 | ||
| 26 | 26 | Engine | Model | XC490BPG | ||||
| 27 | 27 | Rated power | kw/r.p.m | 37/2650 | ||||
| 28 | 28 | Rated torque | Nm/r.p.m | 148/2000 | ||||
| 29 | 29 | Cylinder amount | 4 | |||||
| 30 | 30 | Bore×Stroke | mm | 90x100 | ||||
| 31 | 31 | Displacement | 2.54 | |||||
| 32 | 32 | Fuel tank | L | 60 | ||||
| 33 | 33 | Transmission | 1/1 automatic transmission | |||||
| 34 | 34 | Working pressure | MPa | 17.5 | ||||

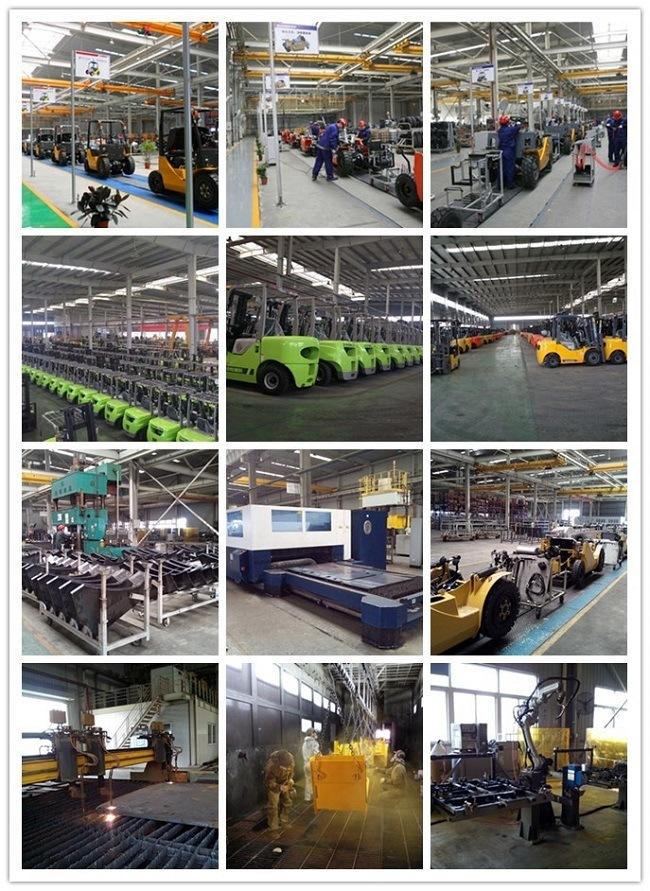

Our SNSC FORKLIFT Factory Show
We, SNSC fork lifter factory, are top 3 fork lifter montacargas manufactures and top 20 in the world. with 130,000 square meters production area, over 500 employees,30,000 units forklifter diesel truck production capacity per year,5000 sets export volume.
We are big fork lifter manufacture not small maker. We are responsible for our customers and forklifts.
''QUALITY LEADING THE FUTURE" is our belief forever.
We'd like to offer our best quality forklifts to our customers from all over the world.
SNSC FD25 DIESEL FORKLIFT DELIVERY SOLUTIONS:
Our 2.5ton diesel forklift can be delivered by container or ro-ro shipment.
One 20'GP containr can hold 3 units 2.5ton diesel forklifts;
one 40'GP container can hold 6units 2.5ton diesel forklift trucks.

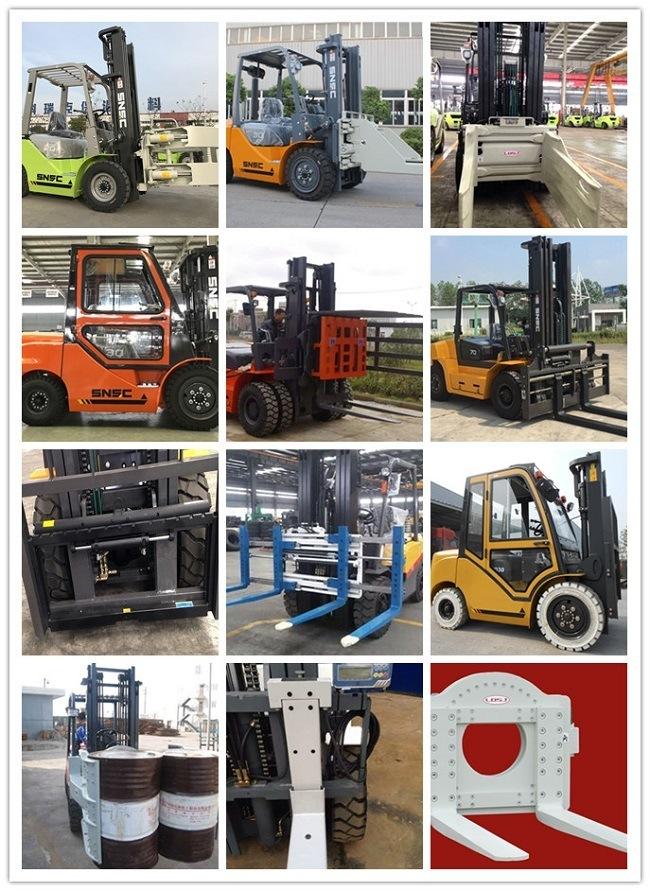

Related SNSC forklift products
Our SNSC forklifts have different forklift series that can meet our customer's different needs.
1. Counter Balanced Diesel powered forklift truck range from 1.5 to 10ton;(FD30,FD35,FD40,FD45,FD50,FD60,FD70,FD80,FD100)
2. Battery powered electric forklift truck range from 1.5 to 3.5ton;
(FB15, FB20, FB25, FB30, FB35)
3. Counter Balanced LPG and gasoline powered dual fuel forklift trucks range from 1.5 to 3.5 ton;(FL15, FL18, FL20, FL25, FL30, FL35)
4. warehouse equipments, like electric pallet truck, electric reach truck, electric stacker & electric trailer, scissor lift, double deep electric reach truck, racks.
