NVG50 Helmet Night Vision Goggles with 0.001Lux Ultra Low Light 2560 x 1440 Resolution and IPX7 Waterproof Rating
Price:
Negotiable
MOQ:
10
Delivery Time:
1-10 working day
Product Description
NVG50 Helmet Night Vision Goggles
0.001Lux Ultra Low Light CMOS Head-Mounted Infrared Night Vision Device
Product Overview
The NVG50 Headset Night Vision Device delivers advanced optical performance with helmet-mounted convenience for professional and tactical applications.
Key Features
- Dual day/night operation with 1X optical and 4X digital magnification
- Ultra-wide 40° field of view for enhanced situational awareness
- 2K (2560*1440) ultra-low illumination CMOS detector
- Motion mode delivers 40Hz delay-free imaging in low light conditions
- Four color modes: Color, Fluorescent Green, White Phosphor, Black & White
- Automatic brightness and infrared adjustment based on environment
- Built-in WiFi for mobile connectivity and real-time streaming
- Dual 18350 battery system with up to 10 hours operation
- IPX7 waterproof rating for all-weather reliability
Technical Specifications
Detector System
| Sensor Type | Ultra Low Illumination CMOS |
|---|---|
| Resolution | 2560 * 1440 pixels |
| Frame Rate | 30/40 Hz |
Display Screen
| Type | OLED |
|---|---|
| Pixel Resolution | 2560*1440 |
Optical Performance
| Objective Diameter | 20mm |
|---|---|
| Eyepiece Diameter | 23mm |
| Basic Optical Magnification | 1X |
| Field of View | 45° |
| Viewing Distance | 0.2m - ∞ |
| Maximum Viewing Distance (Starlight) | 300-400 meters |
Performance Features
| Digital Magnification | 1x, 2x, 3x, 4x |
|---|---|
| Languages | 9 languages |
| Color Modes | Color, Black & White, Fluorescent Green, White Phosphor |
| IR Light | 940nm |
| USB Interface | Type-C |
| Memory Card | 8-64GB |
General Specifications
| Protection Level (IP Code) | IPX7 (Water Proof) |
|---|---|
| Operating Temperature | -25°C to +50°C |
| Battery Type | 1/2 * 18350 Rechargeable Lithium Battery or Extra Battery Pack or Powerbank |
| Battery Working Time (22°C) | 10 hours |
| Shell Material | Strengthened ABS |
| Size | 87 * 65 * 50 mm |
| Weight | 227g |
Product Images

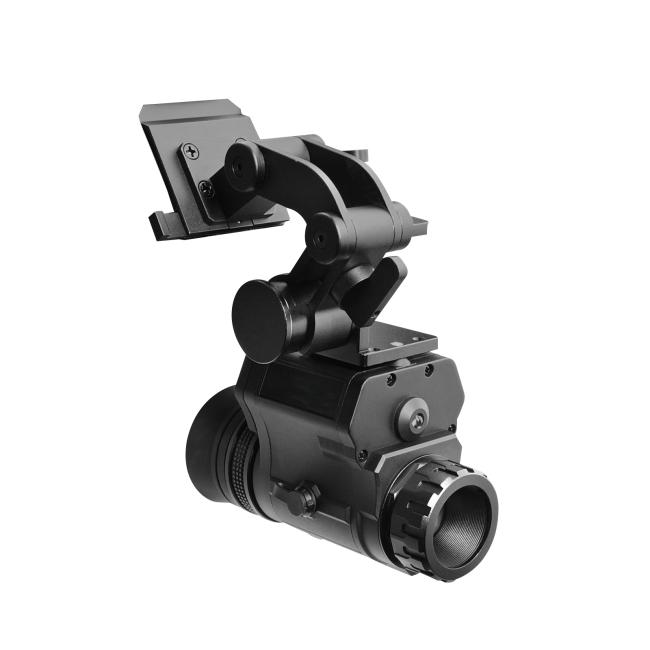

NVG50 Headset Night Vision Device in use and mounting options
