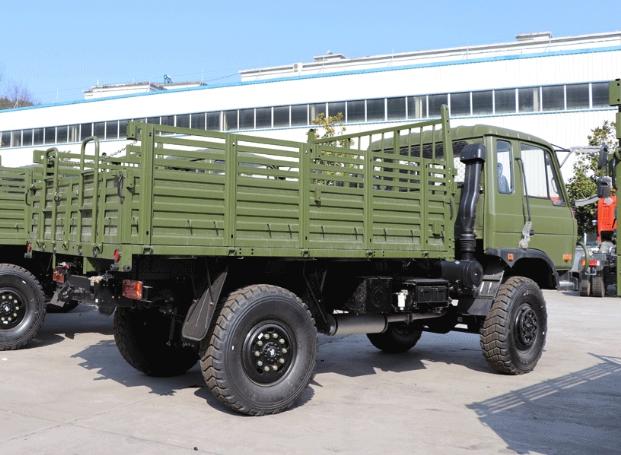

EQ2070 Dongfeng 4 X 4 2.5 Ton Diesel Off Road Truck For Military Applications
Price:
Negotiable
MOQ:
1 Unit
Delivery Time:
35 working days
Brand:
Dongfeng
Product Description
EQ2070 Parameters Specifications
| Description | Military chassis |
| Drive type | 4x4,LHD |
| Cab | Flat roof,single row |
| Passenger | 3 persons |
| Wheelbase | 3600(mm) |
| Clutch | Φ350mm,Single disc clutch |
| Gearbox | 6 Speed,manual |
| Transfer case | Mechanical, two gears |
| Front axle(Empty load/full load) | 3425/2575 |
| Rear axle(Empty load/full load) | 3805/4905 |
| Oil tank | 145(L) |
| Tire | 12.5R20,with one spare tire |
| Engine model | EQB160-22,In-line six cylinder water-cooled intercooler diesel engine |
| Engine power | 118(kW)/160(hp) |
| Engine brand | CUMMINS |
| Fuel type | diesel |
| Displacement | 5900(ml) |
| Approach angle/departure angle | 35/33(°) |
| Front /rear suspension | 1400/1430(mm) |
| GVW | 8710(kg) |
| Max load capacity | 2500(kg) |
| Max tractive mass | 2500(kg) |
| Max speed | 91(km/h) |
| Min stable speed | 3(km/h) |
| Max gradient | 60% |
| Slope standing capacity | 40% |
| Min ground clearance | 305(mm) |
| Min turning radius | 7.5(m) |
| Max vertical obstacle clearance height | 550(mm) |
| Max trench crossing width | 700(mm) |
| Max wading depth | 1000(mm) |
| Max range | 800(km) |
Performance characteristics
Dongfeng Cummins 160/190 horsepower diesel engine;
12.5R20 tubeless off-road tires;
Central inflation and deflation system, which can be divided into deflation of front and rear axle tires;
Six-speed mechanical transmission;
The rear axle is equipped with a self-locking differential lock, which automatically locks the differential when the left and right adhesion differs greatly.
