All Types Cross Shaft Bearing For Machinery GUMZ12 GUN27 GU1000 GU1100 GUN-46
Product Description:

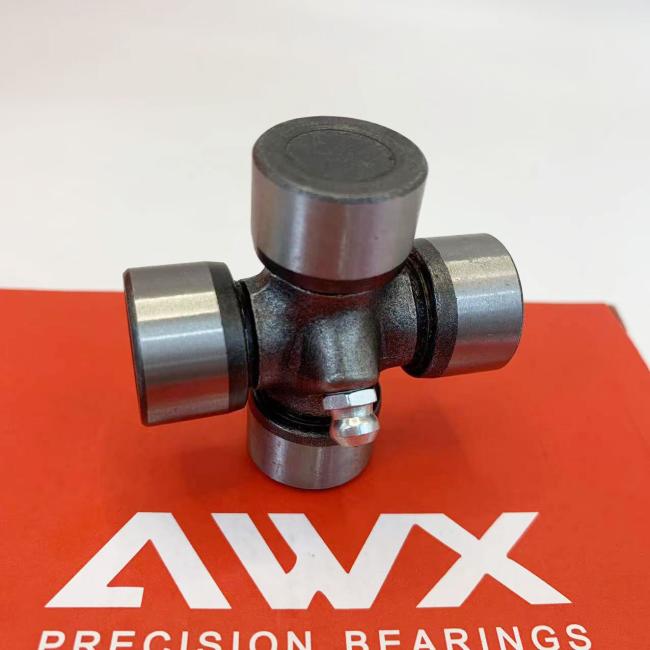

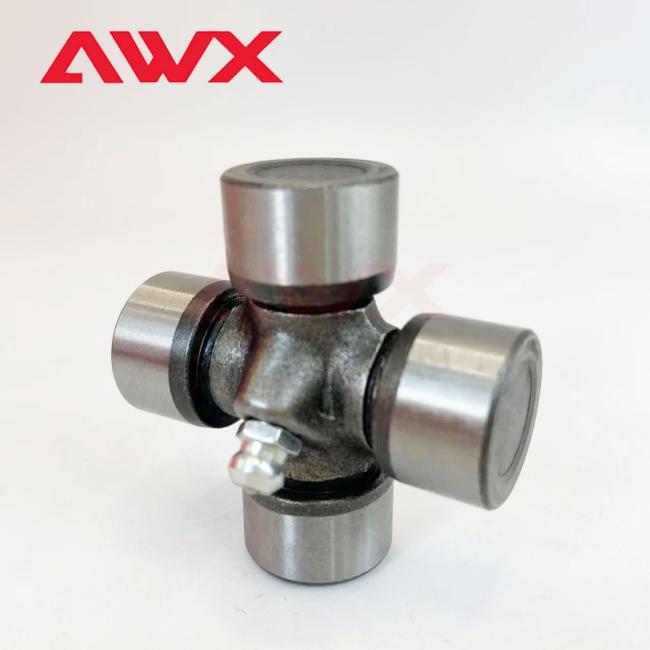

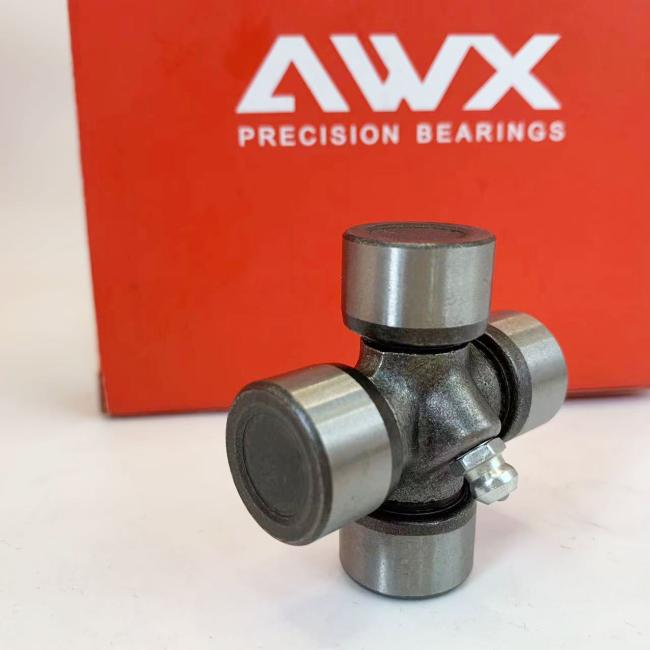

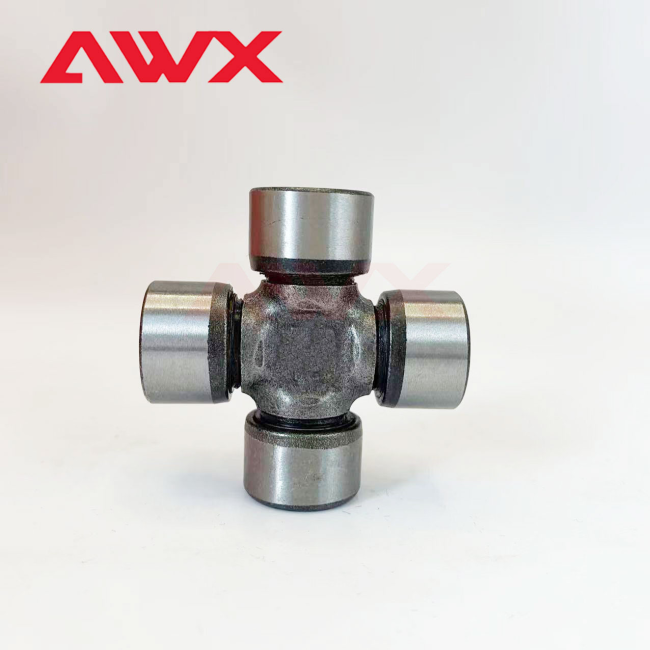

Cross Bearing is a mechanical component that is used widely in the automotive industry, particularly in front engine and rear wheel drive systems between the transmission and drive axle. It consists of a universal joint fork, which can include a universal joint flange fork, drive shaft sleeve fork, and a cross shaft. The four ends of the cross shaft, which is also known as the journal, are fitted into the needle bearing assembly that contains an oil seal, needle bearing, and sleeve.
The needle bearing assembly is then installed into the universal joint fork hole. Other areas where Cross Bearing is utilized include transfer cases between drive axles, drive axles and drive axles, or between drive axles and transmissions, where the axes change position due to frame deformation. It is also used in differentials and cars with independent suspension.
Cross Bearing is essential in steering systems that drive the differential between axles and wheels. It plays a crucial role in the power output device and steering control mechanism of a car. Because of its many functions, it is considered a critical component in the automotive industry and is relied upon to ensure safe and effective operation of vehicles.
Related Models:
| FIG | HRBN | D | O | L | SPICER | PRECISION | GMB | GKN |
| B | 5-100X | 25.4 | 39.5 | 5-100X | 514 | G5-100X | ||
| A | 5-101X | 23.82 | 61.3 | 5-101X | 340 | GU400 | HS150 | |
| B | 5-103X | 23.82 | 35 | 5-103X | 338 | G5-103X | HS410 | |
| A | 5-10X | 30.188 | 106.35 | 5-10X | 330 | GU2050 | HS179 | |
| A | 5-111X | 23.82 | 61.3 | 5-111X | 341 | GU500 | HS194 | |
| A | 5-113X | 27 | 81.78 | 5-113X | 369 | G5-113X | HS166 | |
| B | 5-1200X | 27 | 57.4 | 5-1200X | 429 | G5-1200X | ||
| B | 5-1201X | 27/28.6 | 55.5 | 5-1201X | 430 | G5-1201X | ||
| B | 5-1203X | 27 | 67.6 | 5-1203X | 433 | G5-1203X | ||
| A/B | 5-1204X | 27/28.6 | 67.6 | 92 | 5-1204X | 434 | ||
| A | 5-12062X | 48.05 | 161 | 5-12062X | HS268 | |||
| B | 5-1206X | 30.188 | 76.28 | 5-1206X | 427 | G5-1206X | ||
| A | 5-12100X | 45 | 120.4 | 5-12100X | GU7530 | HS260 | ||
| A | 5-121X | 27 | 81.75 | 5-121X | 369 | G5-121X | ||
| B | 5-12213X | 38 | 57.2 | 5-12213X | GU7300 | |||
| A | 5-12219X | 48.05 | 125.8 | 5-12219X | GU7620 | HS272 | ||
| A | 5-12265X | 19.1 | 47.6 | 5-12265X | ||||
| A | 5-12276X | 44 | 149 | 5-12276X | ||||
| A | 5-12278X | 50 | 164 | 5-12278X | ||||
| A | 5-12924X | 52 | 133 | 5-12924X | GU7560 | HS282 | ||
| A | 5-12932X | 57 | 152 | 5-12932X | GU7630 | HS289 | ||
| A | 5-12072X | 57 | 163 | 5-12072X | ||||
| B | 5-1301 | 31.3 | 71.5 | 5-1301 | 304 | G5-1301X | ||
| B | 5-1306X | 27.4 | 50.8 | 5-1306X | 315G | G5-1306X | HS442 | |
| B | 5-1309X | 28.6 | 63.96 | 5-1309X | 316 | G5-1309X | ||
| A/B | 5-1312X | 28.6/28.58 | 60 | 91 | 5-1312X | 375 | ||
| A | 5-134 | 27 | 92/81.7 | 5-134X | 353 | G5-134X | ||
| A | 5-13400X | 23.82 | 61.2 | 5-111X | ||||
| B | 5-1501X | 25.02 | 40 | 5-1501X | 391 | GUN27 | HS420 | |
| B | 5-1502X | 26 | 41.76 | 5-1502X | 394 | GU13 | HS432 | |
| B | 5-1503X | 25.02 | 39.8 | 5-1503X | ||||
| B | 5-1505X | 28.02 | 52.9 | 5-1505X | 393 | GUN29 | HS448 | |
| B | 5-1506X | 38 | 57.2 | 5-1506X | 463 | GU7300 | HS480 | |
| B | 5-1508X | 26.03 | 53.64 | 5-1508X | 390 | GUT12 | HS436 | |
| A | 5-1509X | 28.52 | 77.7 | 5-1509X | 396 | GUT14 | HS172 | |
| B | 5-1510X | 29 | 49 | 5-1510X | 387 | GUT17 | HS454 | |
| B | 5-1511X | 32 | 61 | 5-1511X | 389 | GUT20 | HS470 | |
| B | 5-1514X | 22.52 | 34 | 5-1514X | 385 | |||
| A | 5-1516X | 25 | 76.5 | 5-1516X | 399 | GUM88 | HS153 | |
| A | 5-153X | 27 | 81.78 | 5-153X | 369 | GU1000 | HS166 | |
| A | 5-155X | 34.93 | 126.22 | 5-155X | 358 | G5-155X | HS275 | |
| A | 5-160X | 30.188 | 106.35 | 5-160X | 330 | GU2050 | HS179 | |
| A | 5-165X | 41.24 | 142 | 5-165X | 359 | G5-165X | HS252 | |
| B | 5-170X | 23.83 | 34.85 | 5-170X | 338 | G5-170X | HS410 | |
| A | 5-178X | 30.188 | 92.075 | 5-178X | 331 | GU2200 | HS182 | |
| A | 5-188X | 34.93 | 106.31 | 5-188X | 351 | GU2300 | HS263 | |
| A | 5-200X | 27 | 81.78 | 5-200X | 329 | G5-200X | HS166 | |
| A/B | 5-212X | 27.02/28.6 | 60.2 | 92 | 5-212X | 355 | G5-212X | |
| A | 5-213X | 27.02 | 92 | 5-213X | 354 | G5-213X | ||
| A/B | 5-248X | 25.39/27 | 38.6 | 62 | 5-248X | 361 | ||
| A | 5-251X | 27 | 81.75 | 5-251X | 369 | G5-251X | HS166 | |
| B | 5-2532X | 28.6 | 49 | 5-2532X | 513 | |||
| B | 5-260X | 27 | 52.5 | 5-260X | 365 | G5-260X | HS162 | |
| A | 5-263X | 34.93 | 106.31 | 5-263X | 351 | G5-263X | HS263 | |
| B | 5-273X | 27 | 67.6 | 5-273X | 433 | G5-273X | ||
| A | 5-275X | 34.93 | 126.22 | 5-275X | 358 | G5-275X | HS275 | |
| B | 5-297X | 30.2 | 52.5 | 5-297X | 371 | G5-297X | HS457 | |
| B | 5-297X-1 | 30.2 | 52.5 | 5-297X-1 | 377 | G5-297X-1 | HS457 | |
| B | 5-3011X | 28.6 | 59.9 | 5-3011X | 492 | HS453 | ||
| A/B | 5-3022X | 27/28.6 | 60.2 | 81.78 | 5-3022X | 372 | ||
| B | 5-3147X | 28.6 | 60.2 | 5-3147X | 534G | GU6370 | HS451 | |
| B | 5-350X | 27 | 56.8 | 5-350X | 366 | |||
| B | 5-353X | 27/27.4 | 50.8/56.8 | 5-353X | 319 | G5-353X | ||
| A | 5-431X | 33.3 | 67.48 | 5-431X | 888 | GGP-44R | ||
| A | 5-443X | 27.01 | 61.95 | 5-443X | 437G | G5-443X | HS197 | |
| A/B | 5-450X | 27.01/27 | 52.5 | 81.78 | 5-450X | 455 | ||
| A | 5-4X | 27.01 | 74.6 | 5-4X | 344 | GU1100 | HS195 | |
| A/B | 5-544X | 28.6/27 | 60 | 81.4 | 5-544X | 372 | ||
| B | 5-74X | 27 | 52.4 | 5-74X | 356 | G5-260X | HS441 | |
| B | 5-92X | 24.6 | 34.36 | 5-92X | 861 | GGPL-6R | HS416 | |
| B | AM-12R | 27.04 | 41.8 | 5-242X | 995 | GGL-12R | HS440 | |
| A | AM-14R | 28.6 | 66.5 | 5-129X | 880 | GGPL-14R | ||
| A | AM-35R | 31.75 | 81.4 | 5-243X | 964 | GGP-35R | HS202 | |
| A | AP0-10 | 22 | 54.8 | 40116 | 812 | GUA-4 | HS132 | |
| A | AP0-35 | 32 | 76 | 312410 | 814 | GUA-14 | HS204 | |
| A | AP1-00 | 22 | 54 | 811 | GUA-3 | HS130 | ||
| A | AP3-11 | 26.98 | 70 | 40127 | 813 | GUA-7 | HS168 | |
| A | AP4-21 | 26.98 | 74.6 | 44444 | 344G | GUA-8 | HS186 | |
| A | C01 | 18 | 47 | GUA-1 | HS108 | |||
| A | C737 | 23.84 | 61.2 | |||||
| A | C741 | 27.01 | 74.65 | |||||
| A | C770 | 27.01 | 81.75 | |||||
| A | C771 | 30.2 | 106.3 | |||||
| B | CZ276 | 68 | 89 | 5-276X | GU6889 | |||
| A | CZ280 | 65 | 190 | |||||
| A | EG10 | 22.02 | 54.15 | K5-A588 | 811 | GUA-3 | HS130 | |
| A | EG20 | 23.82 | 61.45 | K5-A64 | 341AG | GUA-5 | HS185 | |
| A | EG30 | 27.02 | 70.15 | KA-A590 | 813 | GUA-7 | HS168 | |
| A | EG40 | 27.02 | 74.8 | K5-LGB36R | 344AG | GUA-8 | HS186 | |
| A | EG50 | 30.22 | 80.15 | K5-A591 | 815 | GUA-11 | HS198 | |
| A | EG60 | 30.22 | 92.2 | K5-LGB182 | 331AG | GUA-12 | HS182 | |
| A | EG70 | 30.22 | 106.7 | K5-A536 | 330 | GUA-13 | HS179 | |
| A | EG80 | 34.92 | 106.5 | K5-A538 | 351AG | GUA-17 | HS183 | |
| A | GU1000 | 27 | 81.8 | 5-153X | 369 | GU1000 | HS166 | |
| A | GU1100 | 27.01 | 74.6 | 344 | GU1100 | HS195 | ||
| A | GU1210 | 27 | 62 | |||||
| A | GU200 | 24 | 63.31 | GU200 | ||||
| A | GU2000 | 30.188 | 106.35 | 5-160X | 330 | GU2000 | HS179 | |
| A | GU2050 | 30.188 | 106.35 | 5-160X | 330 | GU2050 | HS179 | |
| A | GU2200 | 30.188 | 92.075 | 5-178X | 331 | GU2200 | HS182 | |
| A | GU2300 | 34.93 | 106.31 | 5-188X | 351 | GU2300 | HS263 | |
| B | GU2500 | 31.25 | 46 | 5-1300X | GU2500 | |||
| A | GU300 | 19.04 | 51.98 | GU300 | HS119 | |||
| A | GU3500 | 39.675 | 115.42 | 370 | GU3500 | HS176 | ||
| A | GU400 | 23.82 | 61.3 | 340 | GU400 | HS150 | ||
| I | GU4000 | 47.65 | 135 | GU4000 | HS316 | |||
| A | GU500 | 23.82 | 61.3 | K5-LGB80R | 341 | GU500 | HS194 | |
| I | GU5000 | 49.23 | 154.76 | GU5000 | HS337 | |||
| A | GU5100 | 23.82 | 61.3 | GU5100 | ||||
| A | GUA-10 | 30 | 82.1 | |||||
| A | GUA-14 | 32 | 75.9 | 814 | GUA-14 | HS204 | ||
| A | GUA-20 | 36.04 | 89 | 817 | GUA-20 | HS230 | ||
| A | GUK-12 | 27 | 80 | |||||
| B | K1507 | 28 | 55.6 | |||||
| B | K1513 | 26.52 | 48 | |||||
| A | K5-13XR | 26.99 | 81.76 | |||||
| A | K5GB10R | 30.16 | 106.35 | |||||
| A | KC2832ADW | 40 | 115.6 | |||||
| J | KC2932ADW | 44 | 129 | GUM71 | HS312 | |||
| A | QC960714 | 26 | 69.8 | GU7410 | HS159 | |||
| A | QC960715 | 30 | 81.8 | GU7420 | HS188 | |||
| B | RUJ1776SL | 26 | 41.76 | 5-1502X | 394 | GUT13 | HS432 | |
| B | RUJ1780 | 20.02 | 34.7 | 5-1500X | 392 | GUN28 | HS124 | |
| B | RUJ1781SL | 25.02 | 40 | 5-1501X | 391 | GUN27 | HS420 | |
| B | RUJ1786 | 25.4 | 39.5 | 5-105X | 514G | G5-105X | ||
| B | RUJ2016 | 26.03 | 53.64 | 5-1508X | 390 | GUT12 | HS436 | |
| B | RUJ2028 | 28.02 | 52.9 | 5-1505X | 393 | GUN29 | HS448 | |
| B | RUJ2030 | 25.4 | 55 | 5-2011X | 507 | GU6200 | HS430 | |
| B | RUJ2038 | 27.39 | 50.95 | |||||
| B | RUJ2041 | 32 | 61 | 5-1511X | 389 | GUT20 | HS470 | |
| B | RUJ2100 | 29 | 49 | 5-1510X | 387 | GUT17 | HS454 | |
| B | RUJ3007 | 32 | 68.2 | |||||
| A | SB.CA2782.01 | 27.02 | 82 | |||||
| B | SB.CA3088.01 | 30 | 55 | |||||
| A | SB.CA38107.01 | 38 | 106 | |||||
| A | S-E129 | 41.27 | 126 | |||||
| A | S-E358 | 55.03 | 164 | |||||
| A | S-E359 | 60.03 | 162 | |||||
| A | SPL140-1 | 49.2 | 139 | |||||
| A | SPL170-1X | 55.02 | 164 | SPL170-1X | ||||
| A | SPL250-1X | 60 | 163 | SPL250-1X | ||||
| A | SPL90-1X | 41.28 | 126 | SPL90-1X | ||||
| A | ST1538 | 15 | 38 | |||||
| A | ST1539 | 15 | 39 | |||||
| A | ST1540 | 15 | 40 | |||||
| A | ST1638 | 16 | 38 | |||||
| A | ST1639 | 16 | 39 | |||||
| A | ST1640 | 16 | 40 | |||||
| A | ST1940 | 19 | 48 | |||||
| L | U380 | 44 | 126 | GU3800 | ||||
| L | U381 | 50 | 152.6 | GU3810 | ||||
| A | U384 | 44 | 149 | 5-12276X | GU3840 | |||
| A | U388 | 50 | 164 | 5-12278X | UJ388 | |||
| A | U447 | 42.12 | 104.5 | GU4470 | ||||
| A | U728/4 | 24.09 | 74.55 | GU7280/4 | ||||
| B | U730 | 38 | 57.2 | 5-1506X | 463 | GU7300 | HS480 | |
| A | U743 | 35 | 96.8 | GU7430 | HS222 | |||
| A | U744 | 38.03 | 105.6 | GU7440 | HS236 | |||
| B | U747 | 42 | 66 | GU7470 | ||||
| A | U753 | 45 | 120.4 | GU7530 | HS260 | |||
| A | U756 | 52 | 133 | GU7560 | HS282 | |||
| A | U761 | 53 | 135 | GU7610 | HS284 | |||
| A | U762 | 48.05 | 125.8 | GU7620 | HS272 | |||
| A | U763 | 57 | 152 | GU7630 | HS289 | |||
| A | U765 | 48 | 126 | GU7650 | HS272 | |||
| A | U767 | 48.03 | 116.5 | GU7670 | HS271 | |||
| A | U810 | 47 | 131 | GU8100 | HS266 | |||
| A | U813 | 57 | 144 | GU8130 | HS288 | |||
| A | U924 | 65 | 190 | CZ280 | ||||
| A | U948 | 48 | 161 | 5-12062X | UJ948 | HS268 | ||
| A | U981 | 42 | 106 | GU9810 | ||||
| A | U982 | 65 | 172 | UJ982 | HS290 | |||
| A | U983 | 72 | 185 | HS291 | ||||
| A | U984 | 34 | 89 | |||||
| A | U985 | 47 | 138 | HS315 | ||||
| A | U986 | 50 | 159 | HS320 | ||||
| L | U990 | 57 | 152.6 | UJ990 | ||||
| B | U992 | 68 | 89 | UJ462 | ||||
| A | WLD-52 | 52 | 148 |
Features:
Durable Construction
Made from high-quality materials, typically forged steel or chrome-molybdenum, to ensure exceptional strength and resistance to wear and fatigue under heavy loads and extreme conditions. This means that the cross bearing can withstand even the toughest operating conditions and will last longer without breaking down.
Precision Engineering
Manufactured with tight tolerances to ensure a precise fit and smooth operation, reducing vibration and noise during vehicle operation. This means that the cross bearing is designed to fit perfectly and operate smoothly, reducing unnecessary noise and vibration while driving.
Multi-Position Flexibility
The cross bearing allows for rotation and angular movement in multiple directions, accommodating the dynamic requirements of drive shafts, axles, and other drivetrain components. This means that the cross bearing is versatile and can be used for a variety of different applications and vehicle models.
Sealed Design
Equipped with sealed bearings to prevent dirt, moisture, and contaminants from entering, which extends the life of the joint and maintains optimal performance. This means that the cross bearing is protected from the elements and will last longer without requiring maintenance.
Easy Installation
Designed for straightforward installation and replacement, compatible with a wide range of vehicle models and makes, reducing labor time and costs. This means that the installation process is simple and can be completed quickly, resulting in lower costs and faster repair times.
High Load Capacity
Engineered to withstand high torque and load demands, making it suitable for various applications, including passenger vehicles, trucks, and off-road vehicles. This means that the cross bearing can handle heavy loads and high demands, making it suitable for a wide range of vehicle types and uses.
Maintenance-Free
Many models feature a greaseless design, eliminating the need for regular lubrication, thus enhancing convenience and reliability. This means that the cross bearing is low-maintenance and requires less upkeep than other similar components.
Corrosion Resistance
Treated with protective coatings or materials to resist rust and corrosion, ensuring durability in harsh environments. This means that the cross bearing is protected from corrosion and can last longer, even in harsh outdoor environments.
Thermal Stability
Designed to maintain performance under a wide range of temperatures, ensuring reliability in extreme heat or cold conditions. This means that the cross bearing is stable and consistent, regardless of the temperature outside.
Vibration Dampening
Engineered to minimize vibrations and noise during operation, contributing to a smoother and quieter ride. This means that the cross bearing contributes to a more comfortable driving experience, reducing unnecessary noise and vibration in the cabin.
Wide Application Range
Compatible with various drivetrain systems, including front-wheel drive, rear-wheel drive, and all-wheel drive systems. This means that the cross bearing can be used in a wide range of different drivetrain systems, making it a versatile and valuable component for many types of vehicles.
Applications:
Universal Joint Cross Bearing Applications
-
Automotive Drive Shafts
- Application: Universal joints are commonly used in the drive shafts of both rear-wheel drive and four-wheel drive vehicles. They allow for the transfer of power from the engine to the wheels while accommodating the movement of the suspension.
- Importance: Ensures smooth power delivery and flexibility in the drivetrain as the vehicle encounters uneven terrain or road conditions.
-
Transmissions
- Application: Found in automatic and manual transmissions, universal joints facilitate the connection between the transmission output shaft and the driveshaft.
- Importance: Allows for the angle movement necessary for efficient gear shifting and vehicle maneuverability.
-
Heavy-Duty Trucks
- Application: Used extensively in the axles and drivetrains of heavy-duty trucks and commercial vehicles.
- Importance: Surviving high torque and load conditions, these joints ensure reliability and strength, crucial for transportation and logistics industries.
-
Agricultural Equipment
- Application: In tractors, combines, and other farm machinery, universal joints connect power take-off (PTO) shafts to various implements.
- Importance: Facilitates the power transfer necessary for operating equipment like plows, harvesters, and seeders in uneven terrains.
-
Industrial Machinery
- Application: Utilized in conveyors, cranes, and various industrial machines that require rotational movement.
- Importance: Allows for the requisite flexibility and adaptability required in machinery where components may not be perfectly aligned.
-
Aerospace Applications
- Application: Used in various rod end assemblies and actuators to manage critical motions in aircraft control systems.
- Importance: Provides reliable performance in high-stress environments, ensuring aircraft safety and functionality.
-
Marine Applications
- Application: Found in boat propulsion systems where engine power must be transmitted to the drive shaft while navigating through water conditions.
- Importance: Allows for adjustments in the drive angle while ensuring a smooth transfer of power for optimal performance.
-
Off-Road and Recreational Vehicles
- Application: In all-terrain vehicles (ATVs), motorcycles, and dirt bikes, universal joints connect the drivetrain components for maneuverability over rough terrain.
- Importance: Enables flexibility and durability in performance under demanding conditions.
-
Bicycles
- Application: Used in some bicycle designs to connect the crankset to the rear wheel.
- Importance: Provides efficient and smooth pedaling motion, accommodating the angles created by different riding positions.
-
Robotics and Automation
- Application: In robotic arms and automated machinery, universal joints provide the necessary movement and adaptability for complex tasks.
- Importance: Ensures precise control over movement and position in various applications, such as manufacturing and assembly lines.
Packing and Shipping:
Product Packaging:
The Precise Bearings product will be carefully packaged in a sturdy cardboard box to ensure that it arrives at your doorstep in perfect condition. The product will be wrapped in protective material to prevent any damage during shipping.
Shipping:
We offer free shipping for the Precise Bearings product anywhere within the United States. Shipping will be carried out by our trusted courier partners and will typically take 3-5 business days to arrive at your doorstep. For international orders, shipping rates will vary depending on the destination and will be calculated at checkout.
FAQ:
Q:What's your after-sales service and warranty?
A: We promise to bear the following responsibilities when defective products were found:
1. Replacements would be sent with goods of your next order;
2. Refund for defective products if customers require.
Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we also customize OEM box and packing as your requirements.
Q:What's the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.
Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.
Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight. We DO NOT offer free samples to end users.
Q:How to place order?
A: 1. Email us the model, brand and quantity,shipping way of bearings and we will quote our best price for you;
2. Proforma Invoice made and sent to you as the price agreed by both parts;
3. Deposit Payment after confirming the PI and we arrange production;
4. Balance paid before shipment or after copy of Bill of Loading.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
