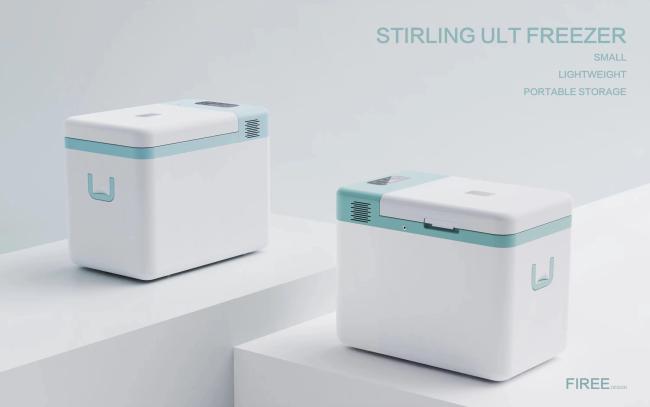

Single-Temperature Style 25L 86 Degree Ultra Low Temperature Portable Medical Freezer
Price:
$1,580.00/pieces 1-9 pieces
MOQ:
1 piece
Delivery Time:
Negotiable
Brand:
Refport
Product Description
Specification
Model No. | PDW-86W25 | |||||||||
Capacity | 25L | |||||||||
Electric Power | 12V DC to 24V DC/ AC 100~240V/50~60hz by Adapter | |||||||||
Maximum Power | 100W (0.5A@220V,4.6A@24V) | |||||||||
Cooling Engine | Free-piston Stirling Engine | |||||||||
Refrigerant | Helium (He) | |||||||||
Temperature Range | 25℃ to Minus 86℃ | |||||||||
Performance Data | Ambient temperature is 25℃；Empty Cabinet | |||||||||
Take 3.5 hours from 25℃ to -80℃ | ||||||||||
Security | Lockable lid | |||||||||
Alarm System | Yes | |||||||||
Defrost Method | Manual | |||||||||
Certification | CE/EMC、CE/LVD、CQC | |||||||||
Interior Dimension (LxWxD) | 300*250*300mm | |||||||||
Exterior Dimension(LxWxD) | 616*392*455mm | |||||||||
N.W./G.W. | 17.5KG/26KG | |||||||||
Shipping(LxWxD) | 710*472*522mm | |||||||||
Application field
Company Profile
Certifications
Product packaging
FAQ
Q&A
Q1. How long will receive the items?
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient
A:Please provide your detail address to us, and we will ask the profession logistics team to figure out it.
Q2.Can I have a sample order?
A:Sure, every item in our company has sample.
Q3.What’s the MOQ?
A:We accept 1 piece order and 10000+ pieces order, The different between them only in price.
Q4.Whether to accept custom or not?
A:We accept OME and ODM, Even OBM is ok.
Q5.What’s Free-piston Stirling engine?
A:FPSC (Free Piston Stirling Cooler) is a new type of completely cfc-free, high efficiency, energy saving and environmental
protection Cooler, which uses a small amount of helium as the coolant. The brief mechanism is that the cylinder (fin) protruding from the main body is cooled by heat exchange, which is a process of repeated cycle of compression, and the stainless steel piston in the main body is constantly moving up and down, resulting in gas explosion.
Q6:What’s the advantages of Free-piston Stirling engine?
A:
1.Oil-Free, Ultra Quiet, Vibration-Free
2.Smallest & Lightest, 2.0kgs (only 1/5 weight of normal compressor)
3.For liquid freezing application, 30% at least energy savings
4.For air cooled application, 50% at least energy savings
5.MagLev technology better reduce system redundancy
6.Ultra compact
7.Light weight
8.Portable
9.Efficient
