Excavator Hydraulic Piston Seal Repair Kdas For Construction Machinery Oil Seals 60×44
Price:
Negotiable price
MOQ:
10pcs
Delivery Time:
5-8 work days
Brand:
ZHIPAN/YOUC
Product Description
Excavator Hydraulic Piston Seal Repair Kdas For Construction Machinery Oil Seals 60×44
Product Descriptions
KDAS Piston Seal, the combination seal ring is a double acting piston seal ring, two retainers, and two wear-resistant rings. There is a real sealing element in the middle; There are setting a retaining ring and a wear-resistant ring on each side. Besides, the retaining ring prevents the sealing ring from being squeezed into the clearance. The sealing ring in the middle is a dentate sealing ring, which can play a good role in static and movement. In addition, the wear ring ACTS as a guide to the piston in the cylinder and bears the radial force.
Product parameters
| Product of Origin |
Guangzhou,China |
| Product of Shippment | Guangzhou,China |
| Product Application | Excavators,Loaders,Breakers ,Graders and Other Construction Works |
| Products name | KDAS/DAS |
| Material | POM / TPU polymer or NBR |
| Color | Black +Blue |
| Sizes | 20~250mm |
| Pressure | 0~35MPa |
| Temperature | -30℃ +120℃ |
| Speed | 0.5m/s |
| Dimension | Oversize Dim0.030 |
| Service | Can be wholesale,Retail and Custom-made |
| Medium | petroleum base hydraulic oil,nonflammable hydraulic oil, environmental protection hydraulic oil |
| Feature | High Temperature Resistance,High Pressure Resistance,High Wear Resistance |
| Application industries | Machinery RepairShops,Construction &Excavation Machinery,Industrial Hydraulic Systems&Heavy Equipment |
Product Advantages
Good sealing effect, also suitable for holding cylinders Insensibility against shock loads and pressure peaks
Capable of installation in closed grooves ofr reduced machining costs Easy installation.
Capable of installation in closed grooves ofr reduced machining costs Easy installation.
Transverse Section

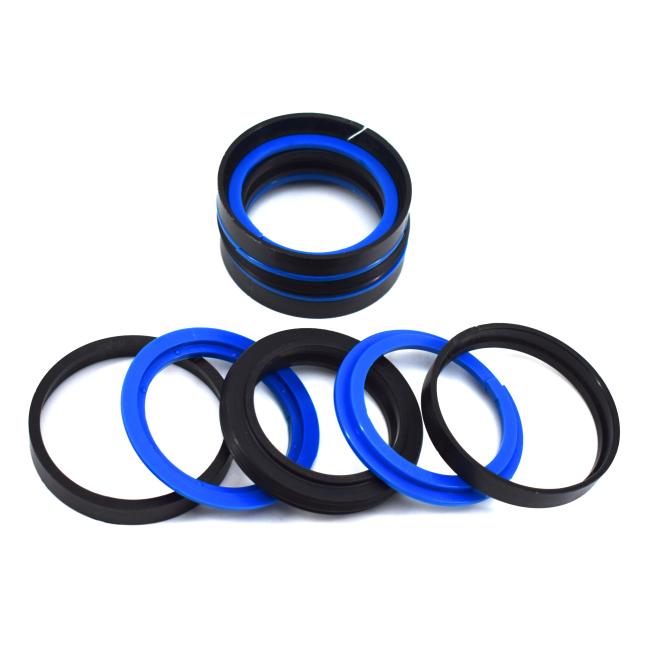

Product Display
Size Details
| KDAS | 20*11 |
| KDAS | 22*13 |
| KDAS | 25*15 |
| KDAS | 25*16 |
| KDAS | 28*19 |
| KDAS | 30*21 |
| KDAS | 32*22 |
| KDAS | 32*22 |
| KDAS | 32*24 |
| KDAS | 35*25 |
| KDAS | 35*25 |
| KDAS | 40*24 |
| KDAS | 40*26 |
| KDAS | 40*30 |
| KDAS | 40*30/1 |
| KDAS | 40*32 |
| KDAS | 42*28 |
| KDAS | 45*29 |
| KDAS | 45*31 |
| KDAS | 45*35 |
| KDAS | 50*34 |
| KDAS | 50*34 |
| KDAS | 50*38 |
| KDAS | 55*39 |
| KDAS | 55*39 |
| KDAS | 56*40 |
| KDAS | 60*44 |
| KDAS | 60*44 |
| KDAS | 60*48 |
| KDAS | 63*47 |
| KDAS | 63*51 |
| KDAS | 65*49 |
| KDAS | 65*50 |
| KDAS | 70*50 |
| KDAS | 70*54 |
| KDAS | 70*58 |
| KDAS | 75*55 |
| KDAS | 75*59 |
| KDAS | 80*60 |
| KDAS | 80*62 |
| KDAS | 80*66 |
| KDAS | 85*65 |
| KDAS | 90*70 |
| KDAS | 90*72 |
| KDAS | 90*76 |
| KDAS | 95*75 |
| KDAS | 100*80 |
| KDAS | 100*75 |
| KDAS | 100*82 |
| KDAS | 100*86 |
| KDAS | 105*80 |
| KDAS | 110*85 |
| KDAS | 110*92 |
| KDAS | 110*96 |
| KDAS | 115*90 |
| KDAS | 115*97 |
| KDAS | 120*95 |
| KDAS | 120*106 |
| KDAS | 125*100 |
| KDAS | 125*103 |
| KDAS | 125*108 |
| KDAS | 130*105 |
| KDAS | 130*105 |
| KDAS | 135*110 |
| KDAS | 135*110 |
| KDAS | 140*115 |
| KDAS | 140*115 |
| KDAS | 140*123 |
| KDAS | 140*118 |
| KDAS | 145*120 |
| KDAS | 150*125 |
| KDAS | 150*125 |
| KDAS | 150*128 |
| KDAS | 150*133 |
| KDAS | 150*130 |
| KDAS | 160*130 |
| KDAS | 160*135 |
| KDAS | 160*143 |
| KDAS | 165*140 |
| KDAS | 170*145 |
| KDAS | 170*148 |
| KDAS | 175*150 |
| KDAS | 180*155 |
| KDAS | 180*150 |
| KDAS | 185*160 |
| KDAS | 190*165 |
| KDAS | 195*170 |
| KDAS | 200*175 |
| KDAS | 200*170 |
| KDAS | 210*185 |
| KDAS | 220*195 |
| KDAS | 220*190 |
| KDAS | 230*205 |
| KDAS | 240*215 |
| KDAS | 250*225 |
| KDAS | 250*220 |
