100KG Double Head Linear Weighing Machine Weigh Filler Packaging Bagging ODM
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30 days
Brand:
P&Q
Product Description
35-100KG Double Head Weigher / Semi-Automatic Bagging Machine
DESCRIPTION
Primarily used for free-flowing materials like corn seeds and granular fertilizers in the agricultural products, food, and chemical industries, it can perform automatic weighing and can be interfaced with packaging equipment for coordinated operation.
ADVANTAGES
Dual-station independent weighing system utilizing combined three-stage discharge and vibratory feeding. Delivers both high speed and precision.

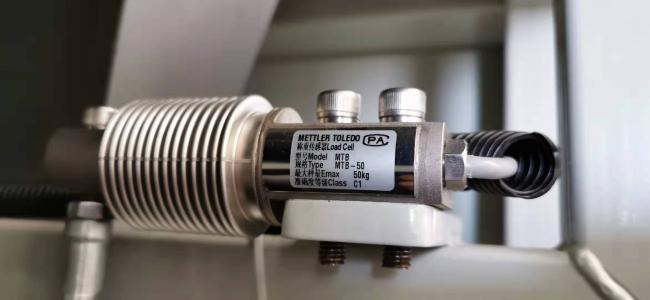

- High-resolution single-point cantilever load cell - Enhanced sensitivity ensures superior weighing stability.
- Bilingual (Chinese/English) touchscreen interface - Enables intuitive parameter configuration. Supports preset parameters for multiple products and flexible measurement value selection.
- Platform-mounted installation - Ensures operational stability and facilitates mechanical/electrical maintenance.
- Semi-automatic operation - Features manual bag clamping with automated weighing, filling, and bag discharge processes.
TECHNICAL SPECIFICATIONS
| Weighing Range | 35kg-100kg |
| Weighing Speed | 5-12 times/min |
| Accuracy | X (0.2) Class |
| Hopper Volume | 387L (to be connected with storage hopper of user) |
| Weighing Hopper Volume | 120L |
| Power | 220V, 50Hz, 0.5KW |
| Air | 0.5-0.8MPa |
| Machine Size | L3027x W2568 x H3980mm |
| L119.17” x W101.10” x H156.69” |

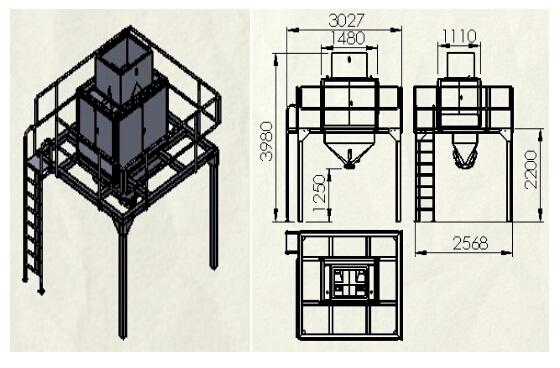

DIMENSIONAL DRAWING

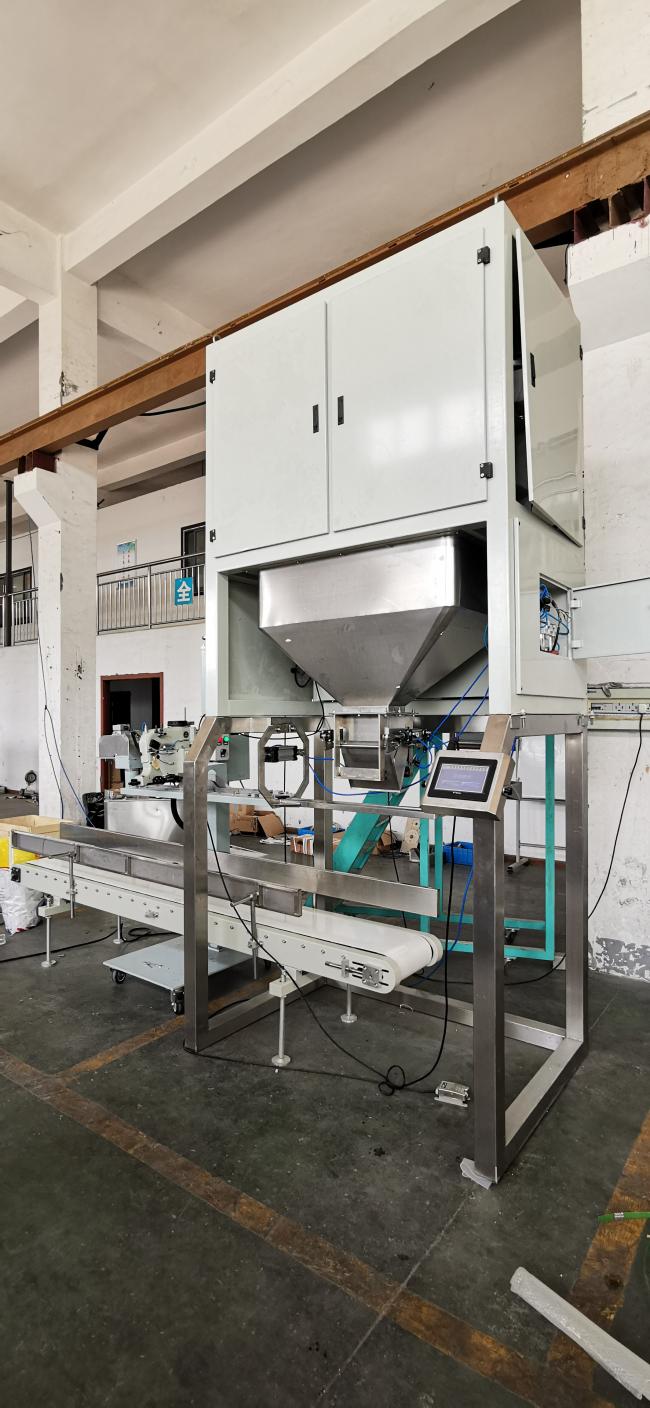

MACHINE PICTURES
