6.5KW 380V HFFS VFFS Packing Machine For Pet Dog Food Custom
5KG Pet Food Automatic Weighing Filling Packaging Line
Description: 5KG Pet Food VFFS Automatic Packaging Line
Discover the ultimate packaging solution for your pet food production with our comprehensive 5KG Automatic Packaging Line. Designed for efficiency, accuracy, and durability, this integrated system combines advanced vertical form-fill-seal technology with precision weighing and automated material handling. Ideal for packaging kibble and dry pet food, this turnkey setup ensures consistent, high-quality output.
Key Components:
- VFFS Automatic Vertical Packaging Machine (1 Unit): High-speed, fully automatic machine capable of producing durable bags. Handles maximum film widths of up to 760mm, offering flexibility for various bag sizes.
- 14-Head 5-Liter Combination Scale (1 Unit): Ensures precise and fast weighing of portions. Each weighing hopper features a generous 5-liter capacity, optimizing throughput and accuracy for 5KG fills.
- Z-Type Bucket Elevator (1 Unit): Equipped with 4-liter buckets, this elevator gently and efficiently conveys product from floor level to the combination scale, minimizing breakage and dust.
- 304 Stainless Steel Platform (1 Set): Provides a robust, hygienic, and safe working area for operators to access the packaging machine and scale. Crafted from food-grade stainless steel for longevity and easy cleaning.
- Finished Product Conveyor (1 Unit): Efficiently transports sealed bags away from the machine to your next processing or palletizing station, streamlining your production flow.
Parameters: 5KG Pet Food VFFS Automatic Packaging Line
| Product to be Packed | Pet food |
| Bag Type | pillow bag; gusseted bag |
| Film Material | Laminated film |
| Weighing Range | 100g-5kg |
| Speed | 10-50 bags/min |
| Bag Size | L (200-460) mm x W (160-350) mm |
| Compressed Air Requirement | 0.6 MPa 0.45m³/min |
| Reel Outer Diameter | Φ450 mm |
| Core Inner Diameter | Φ75mm |
| Machine Weight | 2000 kg |
| Power | 6.5KW 380V ±10% 50 Hz |
| Machine Size | 4386x3125x4765mm |

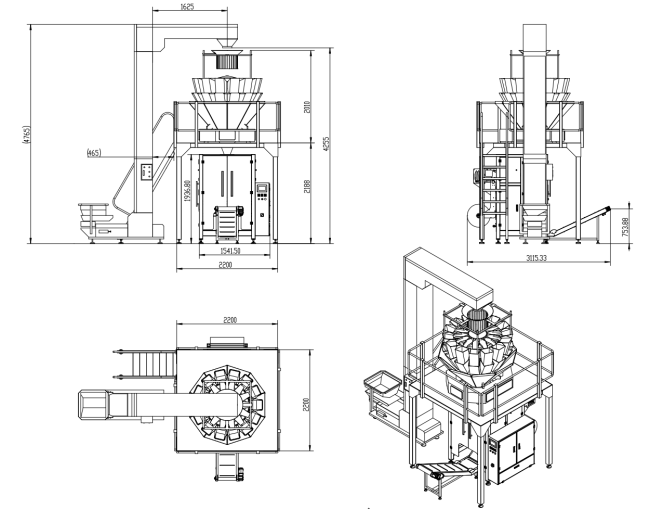

Dimensional Drawing
Integrated End-of-Line Solutions Available
To create a fully automated packaging workshop, this 1kg bagging line can be seamlessly integrated with our comprehensive range of end-of-line packaging equipment. We offer complete solutions for:
- Baling Machine: Automatic systems for receiving products from up to two packaging machines simultaneously and packing the bags into larger master bag.
- Case Packing: Fully automatic carton packing lines to load the bags into shipping cases.
- Palletizing: Robotic or automatic palletizing systems for stable and efficient pallet stacking of the final cartons.
Optimize your packaging line with reliable automation and robust construction. Perfect for manufacturers seeking a complete, high-performance solution for bagging pet food.
