4L 220V Linear Weighing Machine Double Head Semi Automatic Bagging Equipment
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30 days
Brand:
P&Q
Product Description
100g-2000g Standard Double Head Weighing Machine
APPLICATION
The double head weigher serves as our long-standing standard equipment, ideally suited for high-precision weighing of granular materials. It seamlessly integrates with packaging machinery for automated operations.
ADVANTAGES
Dual-Station Independent Weighing System features uniquely vertically arranged feeding hoppers, delivering stable weighing with high precision.
- High-Resolution Single-Point Cantilever Load Cells ensure exceptional sensitivity and enhanced weighing stability.
- Bilingual (Chinese/English) Touch screen Interface offers intuitive operation and clear parameter visualization. Supports setting multiple product parameters for flexible product and weight specification selection.
- Suspended Weighing Hopper Installation allows direct detachment, facilitating effortless machine maintenance.
TECHNICAL SPECIFICATIONS
| Weighing Range | 100g-2000g |
| Weighing Speed | 6-15 times/min |
| Accuracy | X (0.2) Class |
| Hopper Volume | 60L |
| Weighing Hopper Volume | 4L |
| Power | 220V, 50Hz, 0.7KW |
| Machine Size | L700 x W990 x H2143mm |
| L27.56” x W38.98” x H84.37” |

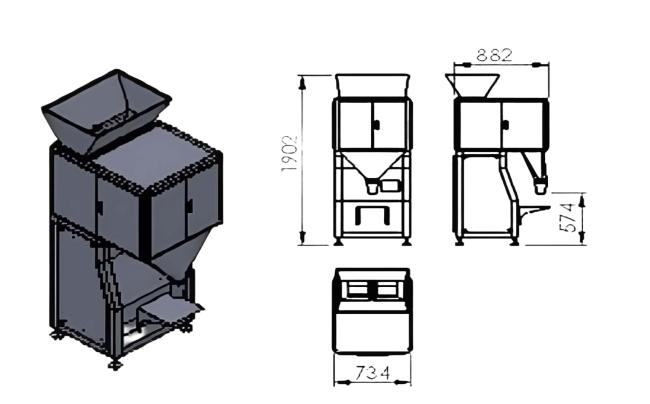

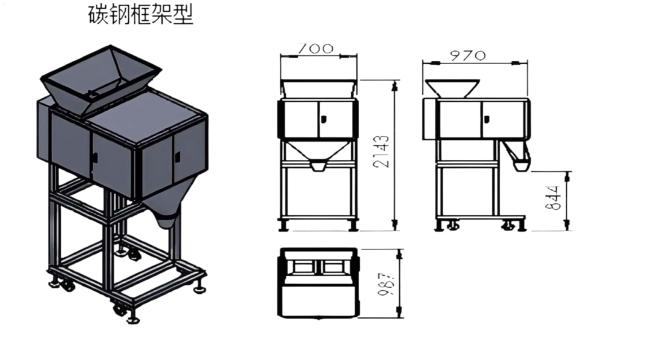

DIMENSIONAL DRAWING

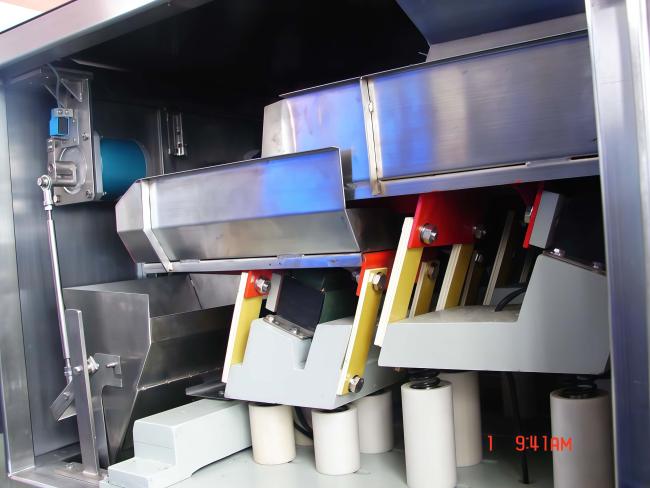

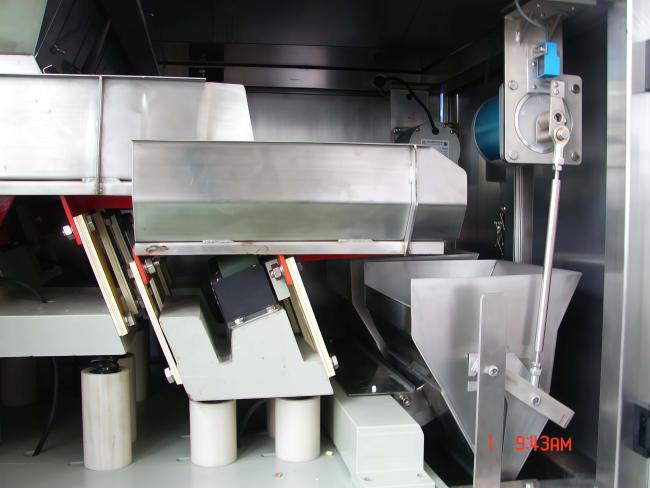

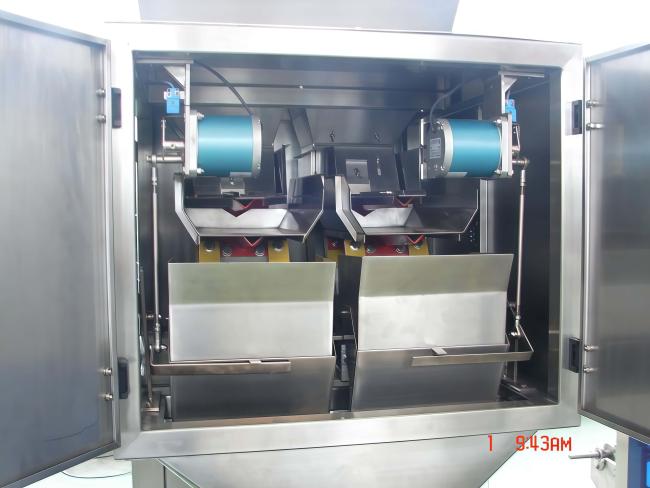

MACHINE PICTURES
