500g-5kg Multihead Sugar Linear Weighing Machine High Speed Anti Leakage Packing
500g-5kg Four Head High Speed Weighing Machine
APPLICATION

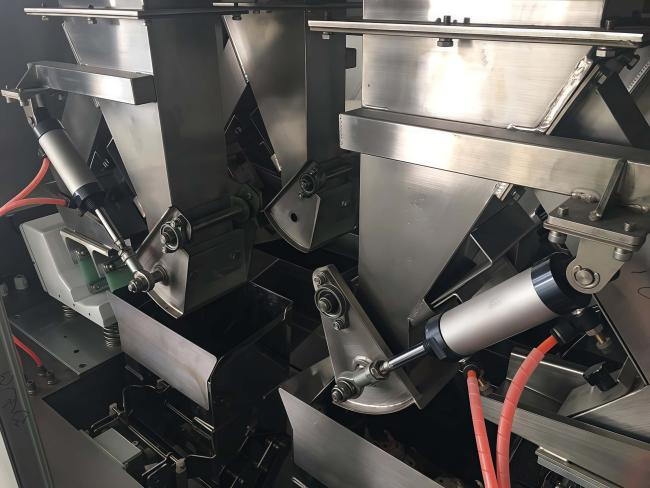

This machine is four-head weighing machine, which is composed of storage bin, vibratory feeder, load cell, weighing hopper and gate-opening mechanism. It is suitable for weighing dry, bulk, granular and flaky products with reliable performance.
All in stainless steel hermetic casing with functions of corrosion resistance and dust prevention. It has been widely applied in industries such as daily chemistry, foodstuff, condiment, seeds, etc.
ADVANTAGES
1. Four station independent weighing system
2. Combined feeding methods with high weighing accuracy: cylinder self feeding and linear vibration feeding
3. Fast product feeding, high weighing accuracy
4. Easy to install, easy to disassemble
5. Touch screen in both Chinese and English for operation. Parameter setting is clear, easy and convenient.
5. Storage for 100 product recipes
8. Can be co-worked with automatic packaging machine, automatic seed counter, sampler
TECHNICAL SPECIFICATIONS
| Weighing Range | 500g-5000g |
| Weighing Speed | 25-50 times/min |
| Accuracy | X (0.2) Class |
| Hopper Volume | 60L |
| Weighing Hopper Volume | 8L |
| Power | 220V, 50Hz, 1.1KW |
| Machine Size |
L1550 x W960 x H1528mm L61.02” x W37.80” x H60.16” |
MACHINE PICTURES

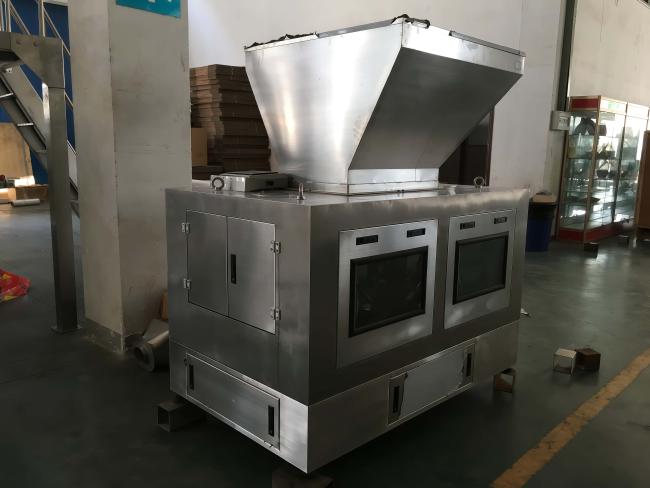

5kg Sugar Weighing Machine, before delivery to UAE

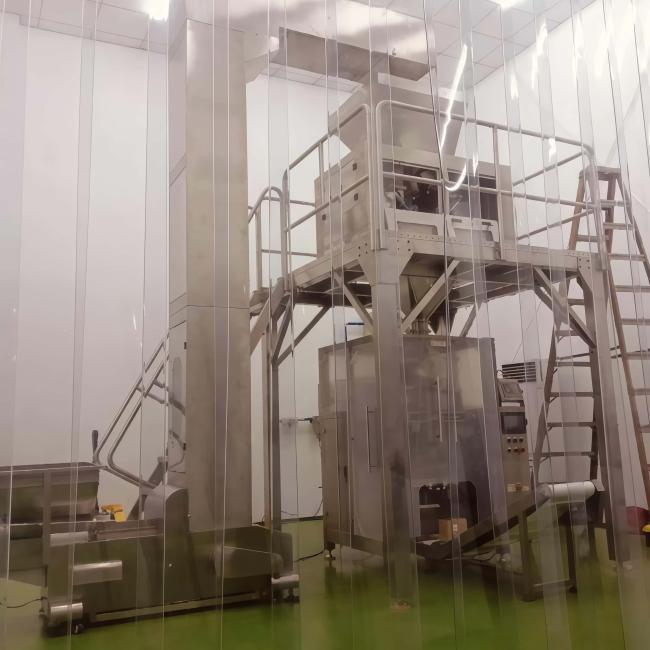

5KG Sugar Weighing Packing Unit in User's Factory in the Pilippines

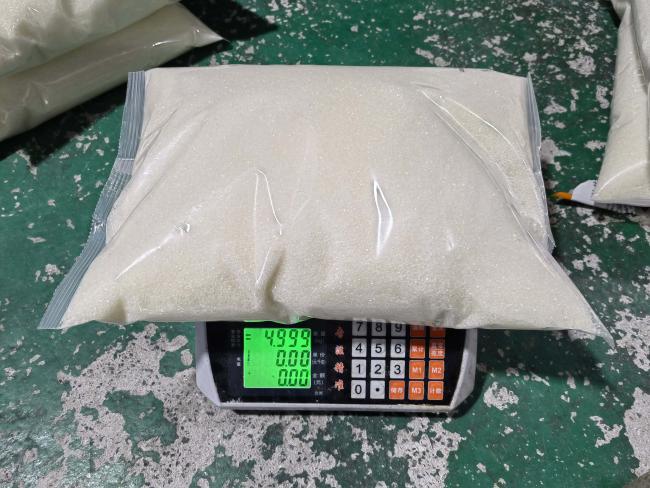

5kg Sugar Weighing Machine, accuracy test
