25kg Checkweigher | Dynamic Inline Checkweigher with Rejecting System | Case Checkweigher

Description

CW series checkweighers are specifically designed for high demand of weighing accuracy, stability and intelligent operation with core invention patents. Imported well-known brand components and integrated circuits are selected, high-precision CNC structure design is adopted, and advanced technologies such as patented weighing algorithms are used to achieve industry-leading detection performance.



Specifications

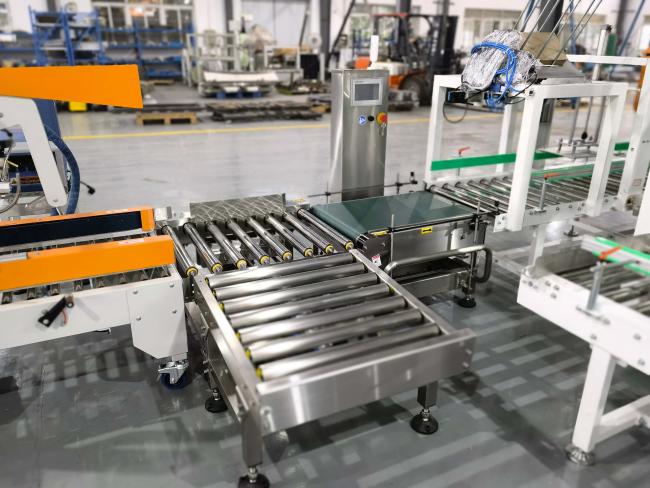

Pictures

Features

1. Ultra-high-speed load cell from Germany with excellent frequency response.

2. FPGA hardware filter with intelligent algorithm, excellent weighing processing speed.

3. Intelligent self-learning technology, automatic setting of weighing parameters, easy to use.

4. Ultra-fast dynamic weight tracking and automatic compensation technology can effectively improve the detection stability.

5. Friendly operation interface on touch screen, easy to operate.

6. 40 product presets, easy to edit and switch.

7. Large-capacity sorting log, with data output traceability function.

8. CNC machining of structural components with excellent dynamic stability.

9. High quality SS304 frame, strong and durable;

10. Optional function such as RS232 interface,USB interface,Ethernet interface,printer, waterproof etc.

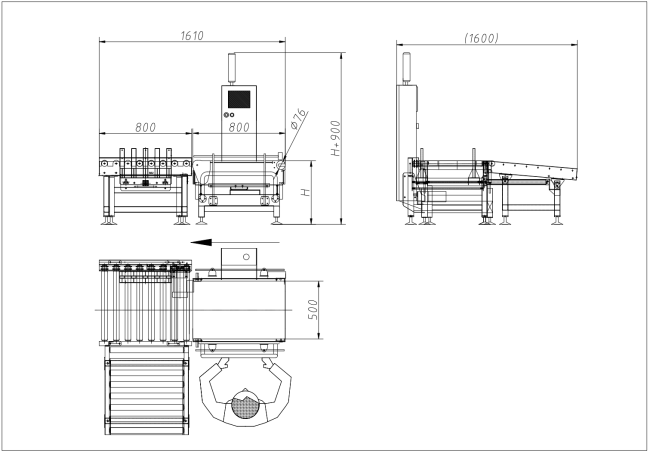

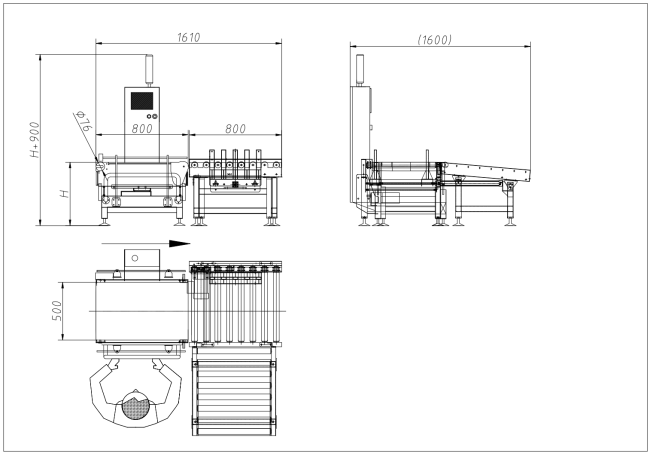

Dimensional Drawing
