3 Phase Vertical Form Fill And Seal Machine For Coffee Packaging ODM
Multi Lane Coffee Stick | Instant Coffee Packing Machine
Description
This unit is suitable for automatic packing granules with average size into stick packs. It has functions of automatic measuring, bag making, filling, sealing, cutting, date printing, cutting easy-tear notch and output etc.
The unit includes the below:
1. Multilane Stickpack Machine, one set
2. Cup Filler, one set
3. Output Conveyor (optional), one set
4. Vacuum Feeder (optional), one set
Specifications
| Bag Length | 50-180mm (1.97”-7.01”) |
| Bag Width | 17-40mm (0.67”-1.57”) |
| Max. Film Width | 560mm (22”) |
| Lane Amount | 6 lanes |
| Measuring Method | volumetric cup |
| Packing Speed | 180-210bpm |
| Bag Shape | stick bag |
| Vertical Sealing: | 5mm |
| Cutting Type | zig-zag cut or flat cut |
| Printer Type | ribbon stamp printer |
| Film Material | laminated film |
| Core Inner Dia. | Φ75mm (2.95”) |
| Reel Outer Dia. | MaxΦ450mm (17.72”) |
| Air Supply | 0.8MPa 800L/min |
| Power Supply | 380V, three Phase, 50 Hz, 3.5KW |
Features
1. The machine integrates functions of automatic filling, bag making, sealing, cutting, date printing etc into one.
2. Film transport system driven by servo motor, reliable and stable.
3. Automatic Film Tracking System
4. PLC control system.
5. Automatic alarm function, auto-stop function, self-diagnosis function, easy and safe to operate.

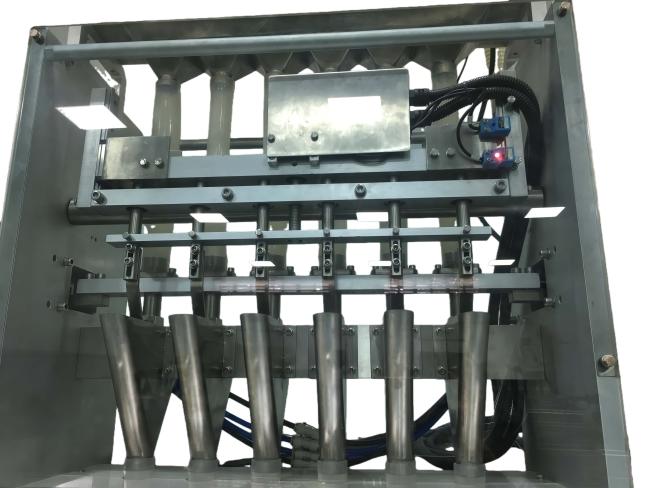

Pictures
