192FO 288FO ABS Waterproof Fiber Optic Splice Closure Aerial Splice Enclosure
192FO 288FO ABS Optical Fiber Closure 1 In 16 Out For Aerial Pole mounting Wall mounting
This product is used to connect the distribution cable and the incoming cable, is widely applied in communication, network systems, CATV cable TV and so on. It adopts scientifically formulated engineering plastic and be shaped by injection molding, with anti-aging, anti-corrosion, flame retardant, waterproof, anti-vibration and anti-shock effects. Can effectively prevent the optic fibers from the influence of outdoor environment.

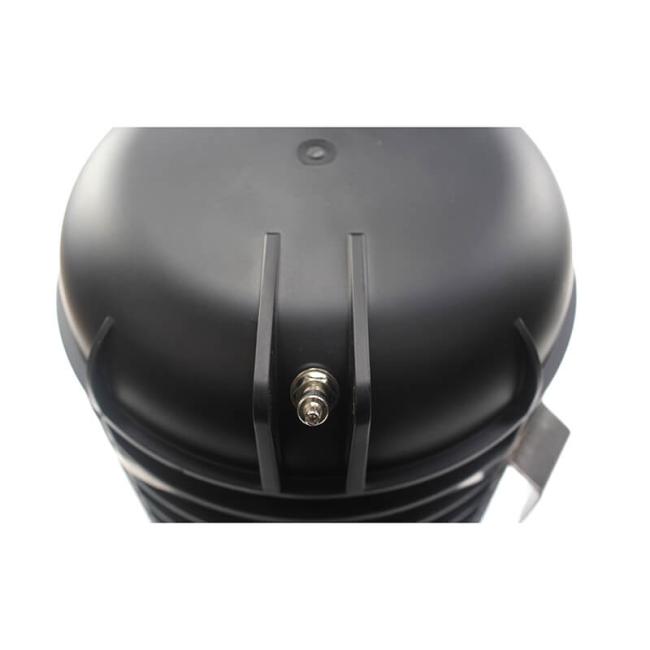

Dome-to-base design; sealed with clamp and O-ring system. With two types of optional trays can hinge for access of any splice, without disturbing others trays; Fast and reliable sealing performance, easy to package multiple times. With lightning protection grounding device, it can be applied in overhead, pole/ wall mounting or directly buried.
Specification
| Entry ports number | 1 oval port, 8 middle size round ports, 8 small size round ports |
| Tray capacity | RQP-15-12c: 12F/tray RQP-26-4c: 4F/tray |
| Tray capacity | RQP-15-12c: 12F/tray RQP-26-4c: 4F/tray |
| Max. closure splice capacity | 288F ( if with 12F tray, total 24 pcs) 192F ( if with 4F tray, total 48 pcs) |
| Available cable dia. | 1 oval port for 2 pcs 10~30mm cable 8 middle round ports each for 1 pc 6~21mm cable 8 small round ports each for 1 pc 6-16mm cable |
| Raw material | Dome, Base: modified PP, clamp:Nylon +GF Tray: ABS Metal parts:Stainless steel |
| Base sealing method | Heat-shrink |
| IPgrade | 68 |
Application

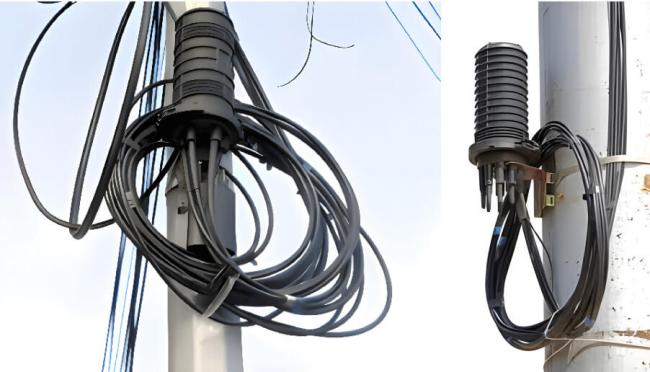

Aerial, Pole mounting, directly buried, Wall mounting
